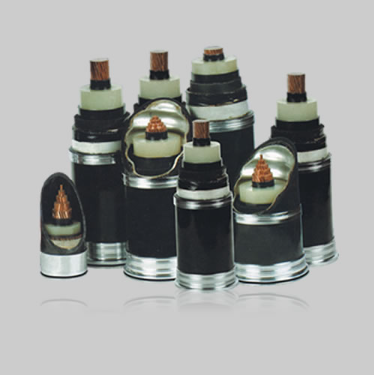

XLPE insulated cable

XLPE insulated cable is a kind of cable suitable for distribution network and other fields, which has the incomparable advantages of PVC insulated cable. It has simple structure, light weight, good heat resistance, strong load capacity, non-melting, chemical corrosion resistance and high mechanical strength.

Send email to us

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

Features

1. Heat resistance: XLPE with net-like three-dimensional structure has very excellent heat resistance. It will not decompose and carbonize below 300°C, the long-term working temperature can reach 90°C, and the thermal life can reach 40 years.

2. Insulation performance: XLPE maintains the original good insulation properties of PE, and the insulation resistance further increases. Its dielectric loss tangent is very small and is not greatly affected by temperature.

3. Mechanical properties: Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE are all improved, thus making up for the shortcomings of PE that are susceptible to environmental stress and cracks.

4. Chemical resistance: XLPE has strong acid and alkali resistance and oil resistance, and its combustion products are mainly water and carbon dioxide, which is less harmful to the environment and meets the requirements of modern fire safety.

110kV XLPE insulated power cable features abundant merits of light structure, high intensity medium, low lossof medium, durable in aging, easy for installation, laying without limit of fall etc. 110kV XLPE insulated powercable can be used in high voltage power transmission and distribution lines especially. The application of thiskind of cable in the underground municipal transforming and transmitting lines are increasing.

Symbols and significations.

XLPE insulated	YJ	Aluminum sheath	Q	PVC exterior sheath	02
Copper oonductor	T	Rivelled aluminum sheath	LW	Polythene sheath	03
Aluminum conductor	L	Combined sheath ofmetal and plastic	A	Longitudinal waterretardant strcture	Z

Note: Rivelled aluminum sheath categories include wrapped aluminum sheath and welded aluminum sheath.The symbols of them are the same as LW. The welded aluminum sheath is definitely specified in the productname. The category name without “welded” is the kind of wrapped aluminum sheath.

Main technical data

Sign-sequence impedance and zero-sequence impedance

Laying mH/km

Norminal.Cross-section of conductor mm2

Sign-sequence impedance

Copper conductor

240

0.0970+j0.211

0.168+j0.134

300

0.0777+j0.204

0.148+j0.128

400

0.0614+j0.195

0.131+j0.119

500

0.0425+j0.188

0.116+j0.114

630

0.0384+i0.180

0.104+j0.108

800

0.0311+j0.172

0.0946+j0.103

Aluminum conductor

240

0.161+j0.211

0.232+j0.134

300

0.129+j0.204

0.199+j0.128

400

0.101+j0.195

0.170+j0.119

500

0.0787+j0.188

0.146+j0.114

630

0.0611+j0.180

0.123+j0.108

800

0.0489+i0.172

0.112+i0.103

Laying mH/km

Norminal.Cross-section of conductor mm2

Sign-sequence impedance

Copper conductor

240

0.0970+j0.209

0.168+j0.134

300

0.0777+j0.202

0.148+j0.128

400

0.0614+j0.193

0.131+j0.119

500

0.0425+j0.186

0.116+j0.114

630

0.0384+j0.179

0.104+j0.108

800

0.0311+j0.171

0.0946+j0.103

Aluminum conductor

240

0.161+j0.209

0.232+j0.134

300

0.129+j0.202

0.199+j0.128

400

0.101+j0.193

0.170+j0.119

500

0.0787+j0.186

0.146+j0.114

630

0.0611+j0.179

0.123+j0.108

800

0.0489+j0.171

0.112+i0.103

Main technical data

The current carrying capacity of cable

Laying mH/km
Norminal.Cross-section of conductor mm2	Copper conductor		Aluminum conductor
Norminal.Cross-section of conductor mm2	Inair	Buried	Inair	Buried
240	807	558	628	434
300	926	629	720	490
400	1080	718	845	563
500	1302	847	986	643
630	1454	923	1153	734
800	1668	1032	1336	930

Laying mH/km
Norminal.Cross-section of conductor mm2	Copper conductor		Aluminum conductor
Norminal.Cross-section of conductor mm2	Inair	Buried	Inair	Buried
240	734	516	573	405
300	837	579	655	455
400	966	655	762	520
500	1149	763	882	590
630	1269	825	1021	669
800	1433	910	1170	750

Installation and operation conditions

Max.continnous operating temperature of the cable conductor………………90℃

Ambient air temperature…………………………………………….40℃

Soil temperature………………………………………………….25℃

Thermal resistivity of soil……………………………………….1.2.℃ m/w

Depth of laying…………………………………………………1m

Sign-circuit cable in parallel laid,Adjacent space is 250mm

Metal shield grounding mode:single-ended or middle intercross interlinking double-ended

Correction coefficient of current-carrying quantity at different environment temperature

Air temperature ℃		0	5	10	15	20	25	30	35	40	45	50
Coefficient		1.34	1.3	1.27	1.22	1.18	1.14	1.10	1.05	1.00	0.95	0.89

Correction coefficient of current-carrying quantity at different soil temperature

soil temperature ℃		0	5	10	15	20	25	30	40	45	50
Coefficient		1.18	1.14	1.11	1.07	1.04	1.00	0.96	0.92	0.87	0.70

Correction coetficient of current-carrying quantity at diflerent soil thermal resistance

Thermal resistanycoefficient of Soil		0.8	1.0	1.2	1.5	1.8	2.0	2.5	3.0
Coefficient		1.07	1.06	1.00	0.92	0.86	0.83	0.75	0.70

Correction coefficient of current-carrying quantity at different laying depth

Laying depth m		0.5	0.7	0.9	1.0	1.2	1.5
Coefficient		1.10	1.05	1.01	1.00	0.98	0.95

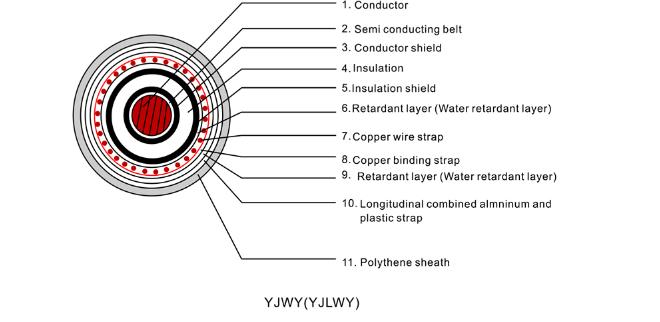

Cable structural figure

Model of cable

Model	Nane	Application
YJLW02	Copper conductor, XLPE insulated, creasing-alumninum sheathed and PVC sheathed power cable	F or laying indoor, in tunnel, cable trench,well or YJLWO3 Copper conductor, XLPE insulated, creasmg-aluminum sheathed and PE sheathed power cable undergrcund, can bear external mechanical forces and certain pulling force.
YJLLW02	Aluminum conductor, XLPE nsulated, creasmg-aluminum sheathed and PVC sheathed power cable
YJLWO3	Copper conductor，XLPE insulated，creasmg-aluminum sheathed and PE sheathed power cable
YJLLWO3	Aluminum conductor XLPE insulated, creasing-aluminum sheathed and PEsheathed cower cablo
YJLW02-Z	Copper conductor, XLPE insulated, creasing-aluminum sheathed and PVCsheathed longitudina-block-water power cable	For laying indoor, in tunnel，cabletrench, wel or underground , usein the damp place and in the highwater table, can bear externalmechanical forces and certain pulling force.
YJLLW02-Z	Aluminum conductor，XLPE insulaled，creasmg-aluminum sheathed and PVCsheathed longitudina-block-water power cable
YJLW03-Z	Copper conductor, XLPE insulated creasing-aluminum sheathed and PE sheathed longitudinal-block-water power cable
JLLW03-Z	Aluminum conductor, XLPE insulated, creasmg-aluminum sheathed and PE sheathed lengitudinal-block-water power cable

For details, please contact our salesman through the FAQ
