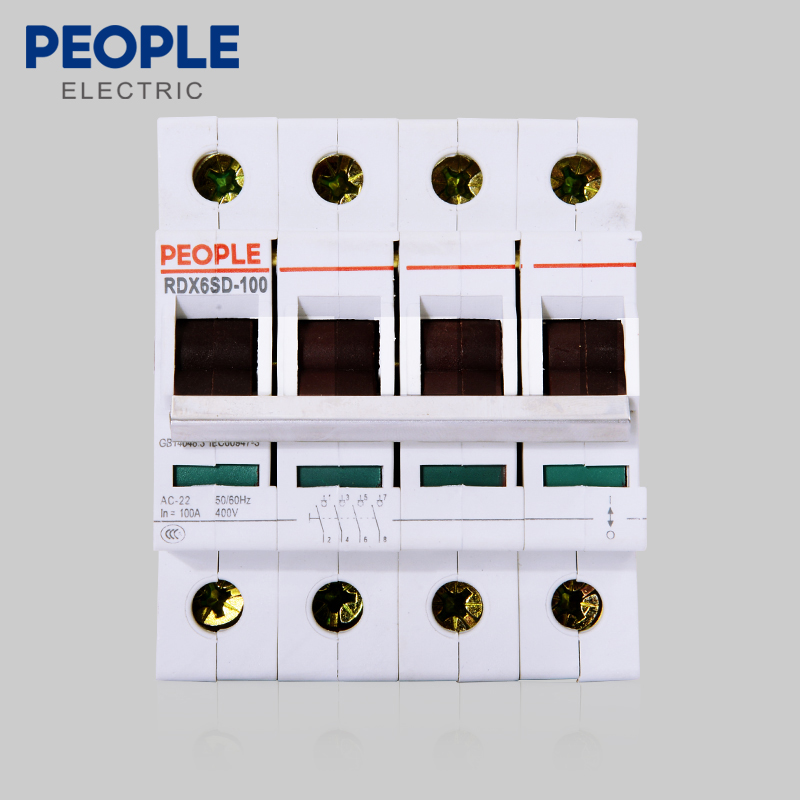

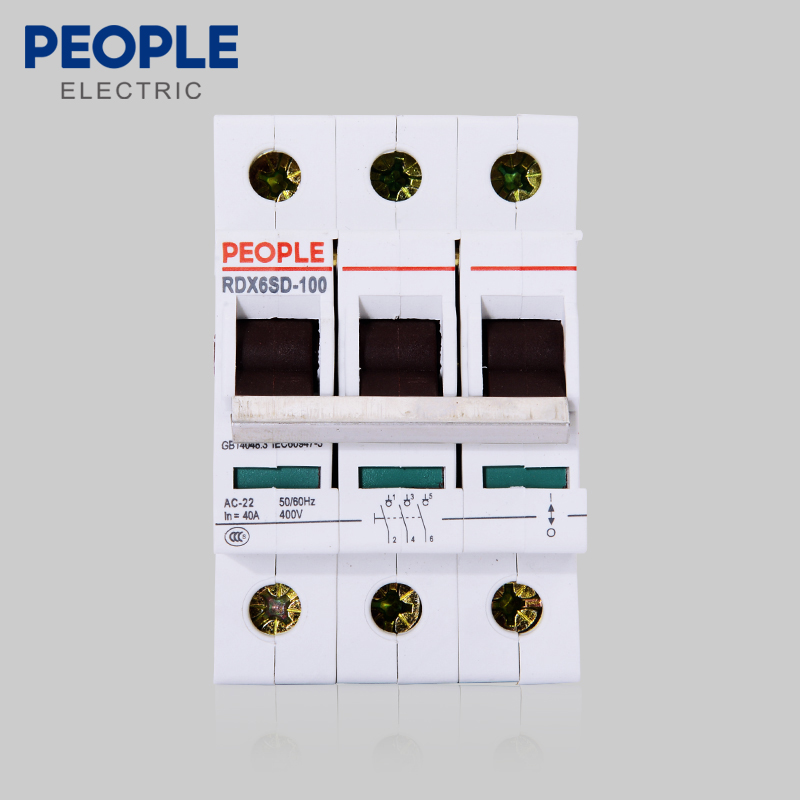

RDX6SD-100 series Isolating Switch – MCB Type

RDX6SD-100 series disconnector is a switch product specially designed for circuits with AC 50Hz/60Hz, rated voltage of 400V and rated current of 100A. It can effectively realize the isolation, closing and opening functions of the circuit, and ensure the stability and safety of the circuit.

This series of products adopts high-quality materials and advanced production technology, with excellent durability and reliability. It has a compact design and can be easily installed in the circuit. It can not only effectively isolate the circuit, but also help users quickly close and open the circuit when necessary to ensure circuit safety.

This disconnector has a high electrical performance index. Its rated voltage is 400V and rated current is 100A, which can meet the requirements of various circuits. At the same time, it also has low contact resistance and high insulation strength, which can effectively reduce current loss and improve the service life of the circuit.

During use, this series of isolating switches can effectively isolate the circuit, prevent overload or short circuit of the circuit due to fault or other reasons, and thus protect the safety of the circuit. In addition, it can also help users to maintain and repair easily to ensure the normal operation of the circuit.

RDX6SD-100 series disconnector is a high-performance and reliable circuit switch product, which can effectively isolate, close and open the circuit, protect the stability and safety of the circuit, and is an indispensable and important element in various circuits.

Type designation

Main specifications
4.1 Rated voltage: 230V/400V
4.2 Rated short-time withstand current: 12le, time 1s;
4.3 Rated short-time making capacity: 20le, time 0.s;
4.4 Rated making and breaking capacity: 3le, 1.05Ue cosф=0.65
4.5 Rated limited short-circuit current: 4KA
4.6 Operating performance: No load 8500 times, on load 1500 times,
10000 in total. cosф=0.8, Operation frequency is 120times/hour.

Main specifications
4.1 Rated voltage: 230V/400V
4.2 Rated short-time withstand current: 12le, time 1s;
4.3 Rated short-time making capacity: 20le, time 0.s;
4.4 Rated making and breaking capacity: 3le, 1.05Ue cosф=0.65
4.5 Rated limited short-circuit current: 4KA
4.6 Operating performance: No load 8500 times, on load 1500 times,
10000 in total. cosф=0.8, Operation frequency is 120times/hour.

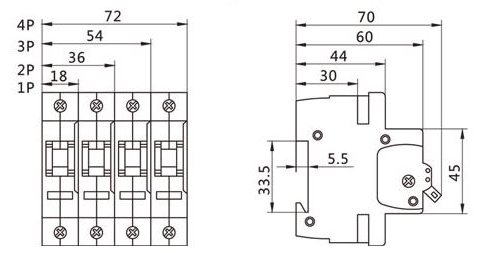

Overall and mounting dimensions(mm)

RDX6SD-100 series disconnector is a switch product specially designed for circuits with AC 50Hz/60Hz, rated voltage of 400V and rated current of 100A. It can effectively realize the isolation, closing and opening functions of the circuit, and ensure the stability and safety of the circuit.

This series of products adopts high-quality materials and advanced production technology, with excellent durability and reliability. It has a compact design and can be easily installed in the circuit. It can not only effectively isolate the circuit, but also help users quickly close and open the circuit when necessary to ensure circuit safety.

This disconnector has a high electrical performance index. Its rated voltage is 400V and rated current is 100A, which can meet the requirements of various circuits. At the same time, it also has low contact resistance and high insulation strength, which can effectively reduce current loss and improve the service life of the circuit.

During use, this series of isolating switches can effectively isolate the circuit, prevent overload or short circuit of the circuit due to fault or other reasons, and thus protect the safety of the circuit. In addition, it can also help users to maintain and repair easily to ensure the normal operation of the circuit.

RDX6SD-100 series disconnector is a high-performance and reliable circuit switch product, which can effectively isolate, close and open the circuit, protect the stability and safety of the circuit, and is an indispensable and important element in various circuits.

Type designation

Main specifications
4.1 Rated voltage: 230V/400V
4.2 Rated short-time withstand current: 12le, time 1s;
4.3 Rated short-time making capacity: 20le, time 0.s;
4.4 Rated making and breaking capacity: 3le, 1.05Ue cosф=0.65
4.5 Rated limited short-circuit current: 4KA
4.6 Operating performance: No load 8500 times, on load 1500 times,
10000 in total. cosф=0.8, Operation frequency is 120times/hour.

Main specifications
4.1 Rated voltage: 230V/400V
4.2 Rated short-time withstand current: 12le, time 1s;
4.3 Rated short-time making capacity: 20le, time 0.s;
4.4 Rated making and breaking capacity: 3le, 1.05Ue cosф=0.65
4.5 Rated limited short-circuit current: 4KA
4.6 Operating performance: No load 8500 times, on load 1500 times,
10000 in total. cosф=0.8, Operation frequency is 120times/hour.

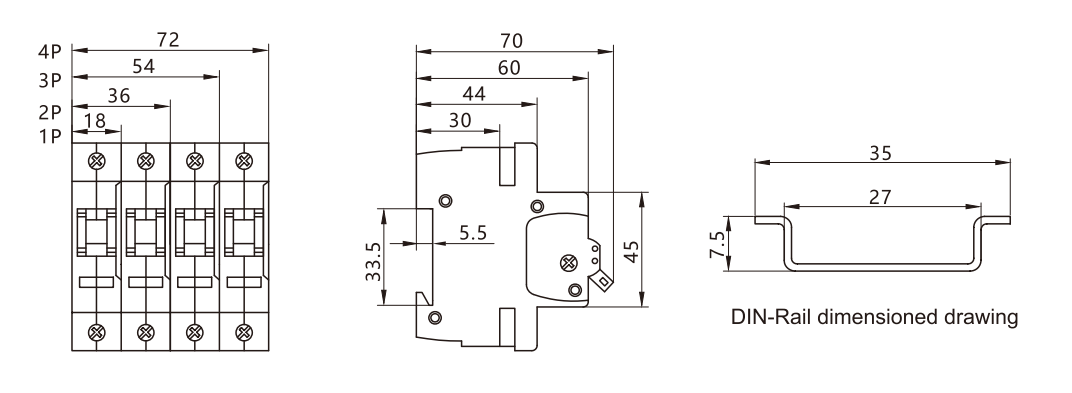

Overall and mounting dimensions(mm)
