RDX30-32 Series MCB 4.5kA 1p+N Mini/ Miniature Circuit Breaker

RDX30-32 miniature circuit breaker (DPN) is applicable to a circuit of AC 50/ 60Hz, 230V (single phase), for overload and short circuit protection.
Rated current up to 32A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.


Download as PDF

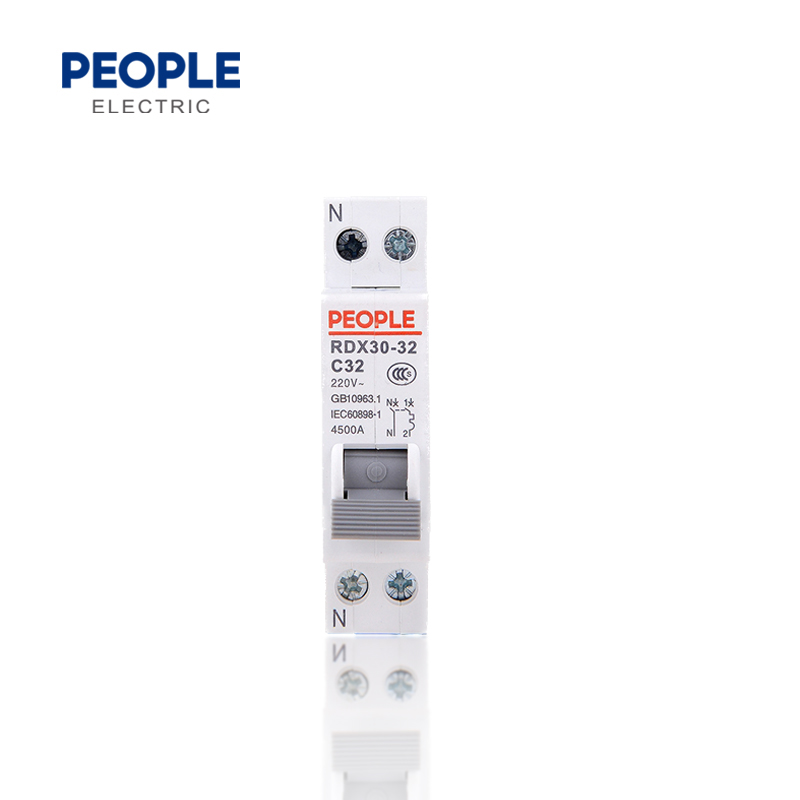

  • RDX30-32 Series MCB 4.5kA 1p+N Mini/ Miniature Circuit Breaker

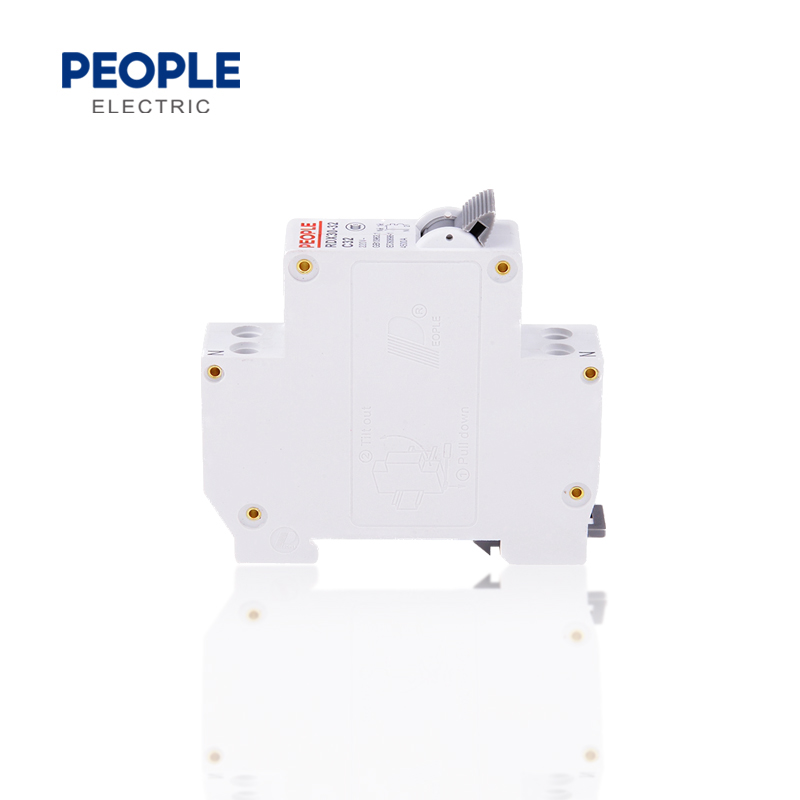

  • RDX30-32 Series MCB 4.5kA 1p+N Mini/ Miniature Circuit Breaker

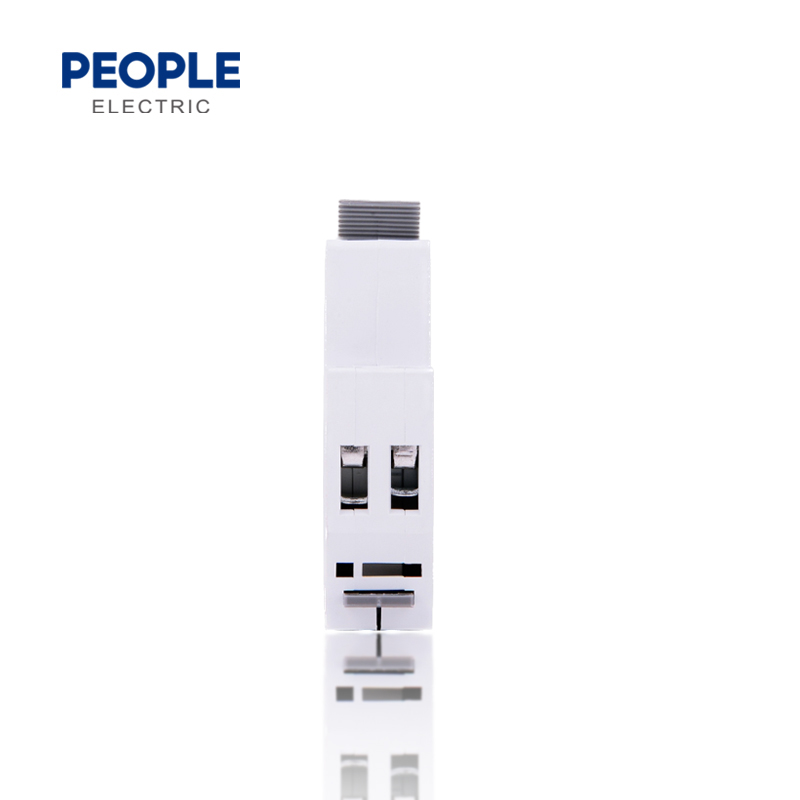

  • RDX30-32 Series MCB 4.5kA 1p+N Mini/ Miniature Circuit Breaker
  • RDX30-32 Series MCB 4.5kA 1p+N Mini/ Miniature Circuit Breaker

Product Detail

Application

Parameters

Samples & Structures

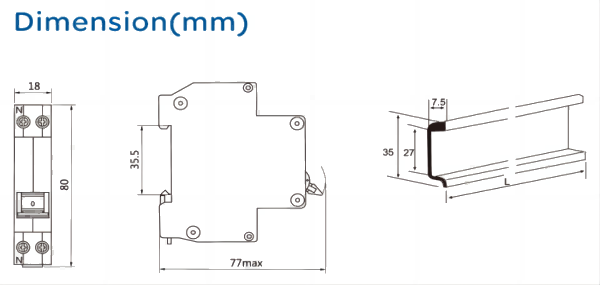

Dimensions

Product Introduction

RDX6-63 high breaking small circuit breaker, mainly used for AC 50Hz (or 60Hz), rated working voltage to 400V, rated current to 63A, rated short-circuit breaking force not exceeding 10000A rated current to 63A, rated short-circuit breaking force of not more than 10000A in the protection of power distribution lines, as the line infrequent connection, breaking and conversion, with overload, short-circuit protection function. At the same time, it has powerful auxiliary function modules, such as auxiliary contact, with alarm indication Contact, shunt striker, undervoltage striker, remote striker control and other modules.
The product conforms to GB/T 10963.1, IEC60898-1 standard.

RDX30-32 miniature circuit breaker (DPN) is applicable to a circuit of AC 50/ 60Hz, 230V (single phase), for overload and short circuit protection.
Rated current up to 32A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.

Model No.

12

Technical specifications


Pole 1P+N
Rated voltage Ue (V) 230/ 240
Insulation voltage Ui (V) 500
Rated frequency (Hz) 50/ 60
Rated current  In (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32
Type of instantaneous release B, C, D
Protective grade IP 20
Breaking capacity (A) 4500
Mechanical life 10000 times
Electrical life 4000 times
Ambient temperature (℃) -5~+40 (with daily average≤35)
Terminal connection type Cable/ Pin type busbar

1 2 4


RDX30-32 miniature circuit breaker (DPN) is applicable to a circuit of AC 50/ 60Hz, 230V (single phase), for overload and short circuit protection.
Rated current up to 32A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.

Model No.

12

Technical specifications


Pole 1P+N
Rated voltage Ue (V) 230/ 240
Insulation voltage Ui (V) 500
Rated frequency (Hz) 50/ 60
Rated current  In (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32
Type of instantaneous release B, C, D
Protective grade IP 20
Breaking capacity (A) 4500
Mechanical life 10000 times
Electrical life 4000 times
Ambient temperature (℃) -5~+40 (with daily average≤35)
Terminal connection type Cable/ Pin type busbar

1 2 4
