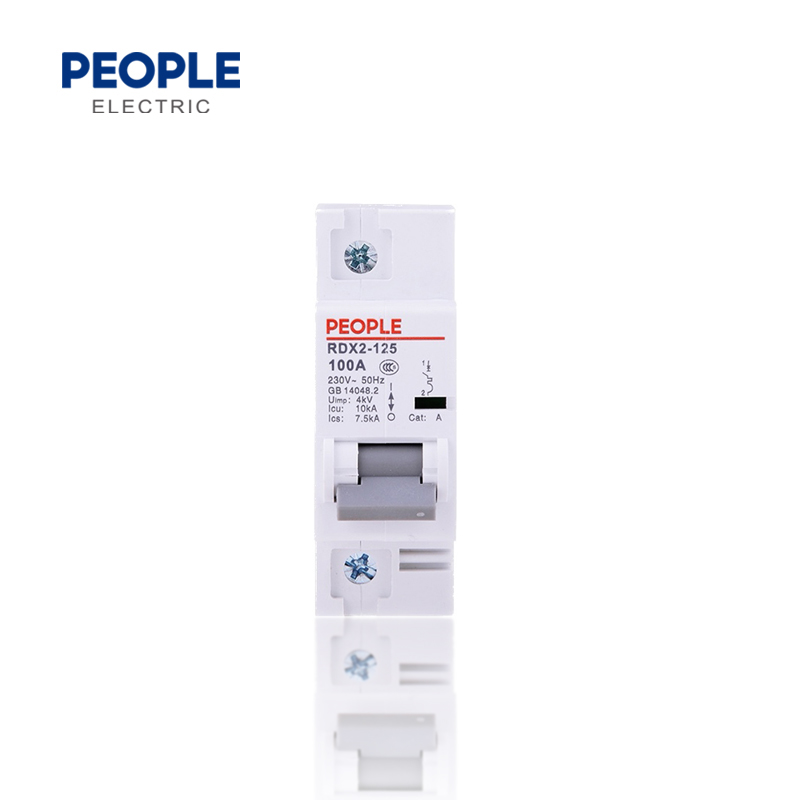

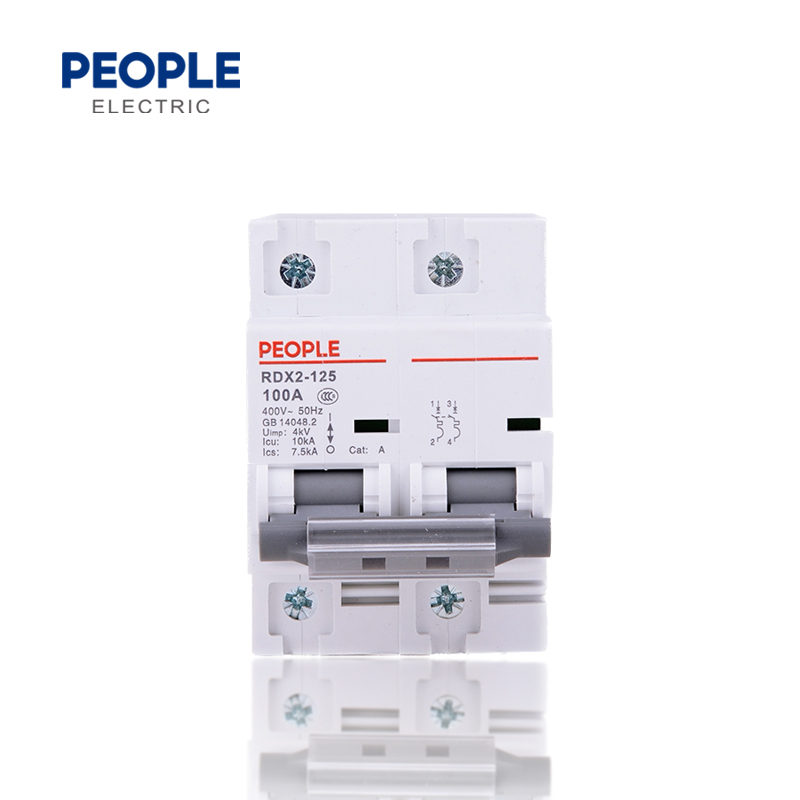

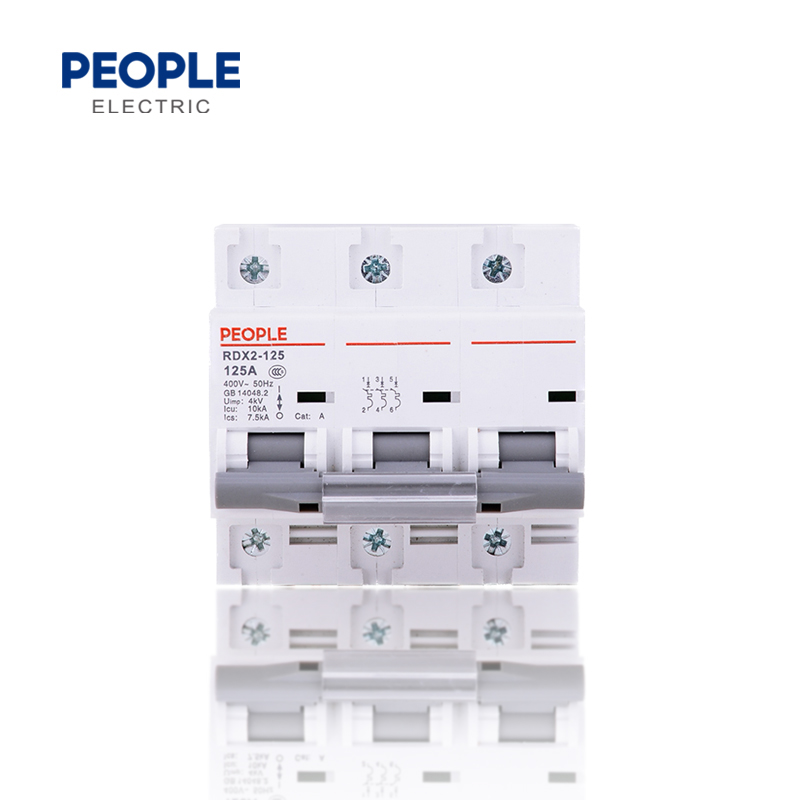

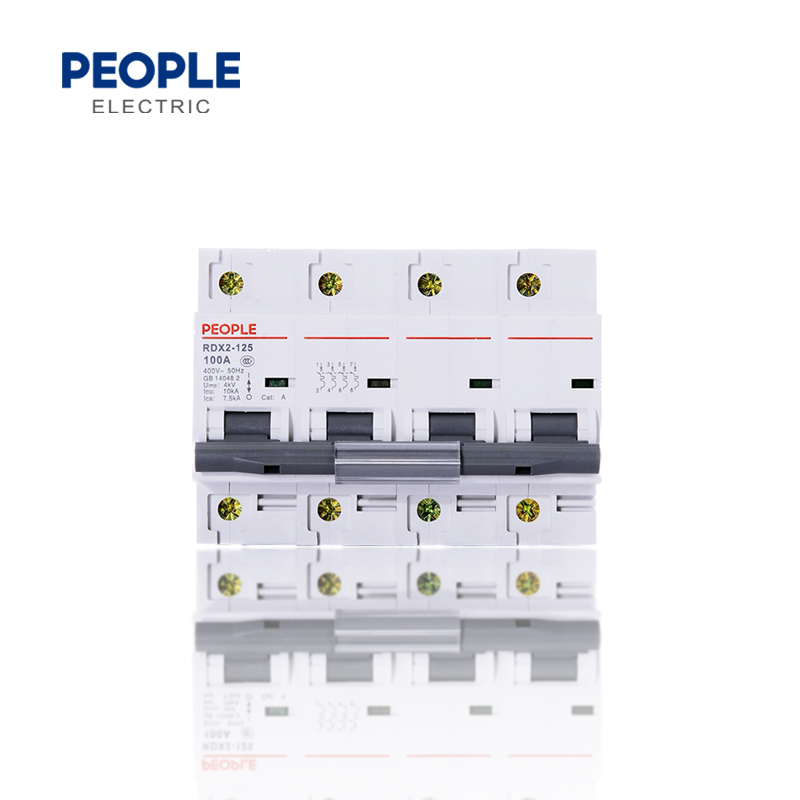

RDX2-125 High Breaking Capacity 1/2/3/4p 6/10kA Miniature Circuit Breaker

RDX2-125 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V(single phase), 400V(2,3, 4 phases), for overload and short circuit protection.
Rated current up to 125A. It also can be used as a switch for an infrequent conversionline. lt is mainly used in domestic installation, as well as in commercial and industrialelectrical distribution systems. It conforms with the standard of IEC/EN60947-2.

Send email to us Download as PDF

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

RDX2-125 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V(single phase), 400V(2,3, 4 phases), for overload and short circuit protection.
Rated current up to 125A. t also can be used as a switch for an infrequent conversionline. lt is mainly used in domestic installation, as well as in commercial and industrialelectrical distribution systems. It conforms with the standard of IEC/EN60947-2.

RDX2-125 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V(single phase), 400V(2,3, 4 phases), for overload and short circuit protection. Rated current up to 125A. t also can be used as a switch for an infrequent conversionline. lt is mainly used in domestic installation, as well as in commercial and industrialelectrical distribution systems.

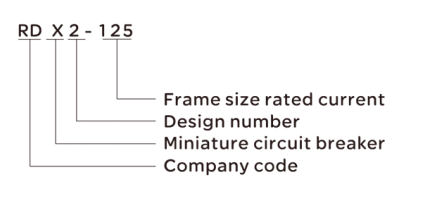

Model No.

Technical specifications


Pole					1P,2P,3P,4P
Rated voltage Ue(V)					230/400~240/415
Insulation voltage Ui(V)					500
Rated frequency(Hz)					50/60
Rated current In(A)					63,80,100,125
Type of instantaneous release					8-12In
Protective grade					IP 20
Breaking capacity(A)					10000
Rated impulse withstand voltage(1.2/50) Uimp(V)					4000
Mechanical life					8000 times
Electrical life					1500 times
Ambient temperature(℃)					-5~+40 (with daily average <35)
Terminal connection type					Cable/Pin type busbar

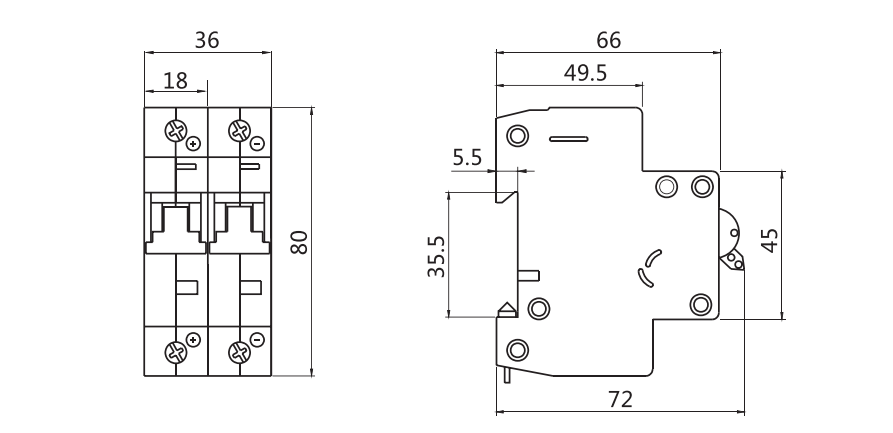

Shape and installation dimensions
