RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage Uimp(kv):8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting. Standard: IEC 60947-4-1 GB14048.4


  • RDR5 series Thermal Relay 0.1~93A CE – RDC5 special relay

Product Detail

Application

Parameters

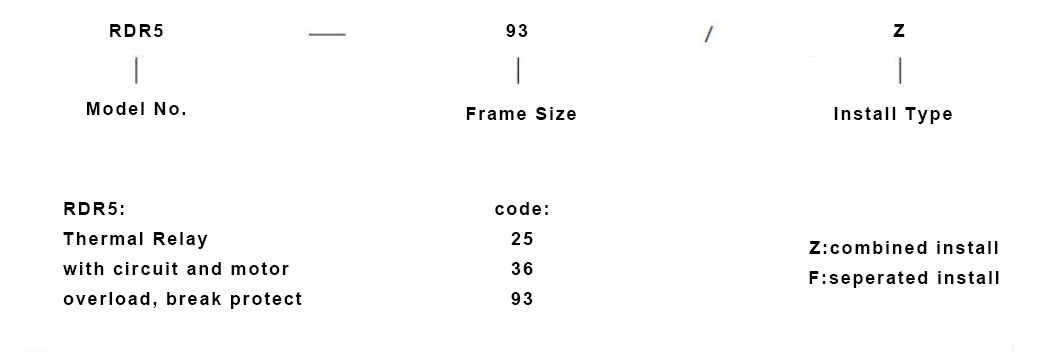

Samples & Structures

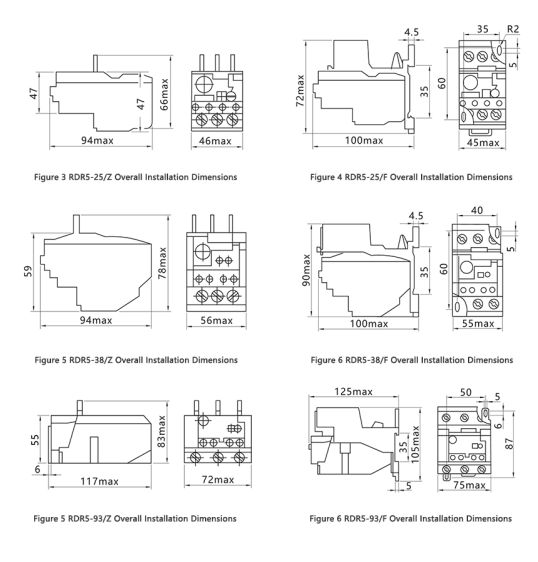

Dimensions

Product Introduction

RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage

Uimp(kv):8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting.

Standard: IEC 60947-4-1 GB14048.4

Features

1.Unified outfit design - adopt the same design as Contactor, beautiful overview

2.Accurated functional indicator - accurate current set, for the actual situation

3.More reliable characteristic - functions of Temperature compensation, operate indicator

4.Convenient install and assemble - can be Combined install with contactor and Separate install, fast break function; Rotate knob for safe resetting

Thermal Relay with circuit and motor overload, break protect.

 2

Technical parameter

Model No. Frame Size Setting Current Model No. Frame Size Setting Current
RDR5-25 25 0.1-0.16A

0.13-0.25A 0.25-0.4A 0.4-0.63A 0.63-1A 1-1.6A 1.25-2A 2.5-4A 4-6A 5-5.8A 7-10A 9-13A 12-18A 17-25ARDR5-363623-32A 28-36ARDR5-939323-32A 30-40A 37-50A 48-65A 55-70A 63-80A 80-93A

Technical parameter

Item RDR5-25 RDR5-36 RDR5-93
Current Level 25 36 93
Rated Insulation Voltage Ui(V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Button Yes Yes Yes
Stop Button Yes Yes Yes
Install Type insert Type insert Type insert Type
Auxiliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
AC-13 220V Rated current A 0.2 0.2 0.2
Matching Contactor RDC5-06,09,12,18,25,38 RDC5-32,38 RDC5-40,50,65,80,95
Rated impulse withstand voltageUimp 8KW
Standard GB14048.4 IEC60947-4-1
Modol No Frame Size   Seting current Model No Frame Size Setting current
RDR5-25 25   0.1-0.16A   0.13-0.25A   0.25-0.4A   0.4-0.63A    0.63A-1A     1-1.6A    1.25-2A     2.5-4A     4-6A     5.5-8A     7-10A     9-13A     12-18A     17-25A RDR5-36 36 23-32A 28-36A
RDR5-93 93 23-32A 30-40A 37-50A 48-65A 55-70A 63-80A 80-93A
  RDA5-25 RDR5-36 RDR5-93
Current Level 25                        36                           93
Rated Insulation Voltage Ui (V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Buton Yes Yes Yes
Stop Button Yes Yes Yes
Instal Type Insert Type Insert Type Insert Type
Auxliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V  Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
DC-13 220V  Rated  current A 0.2 0.2 02
Matching Contactor RDC5-06.09,12,18,25.38 RDC5-32,38 RDC5-40,50,65,80.95
Rated impulse withstand voltageUimp 8kV
Standard G814048.4 IEC60947-4-1
