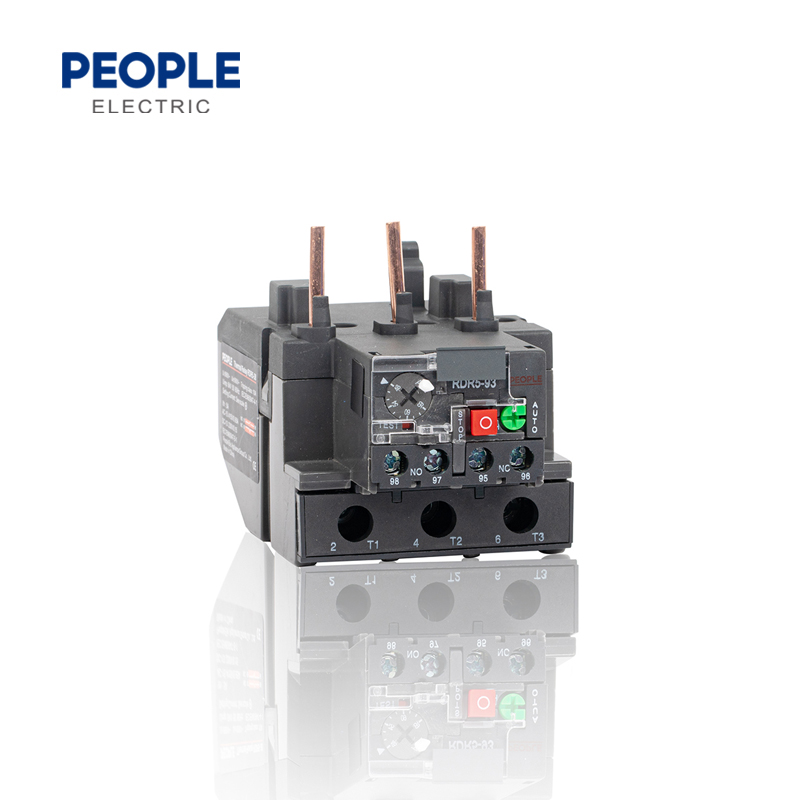

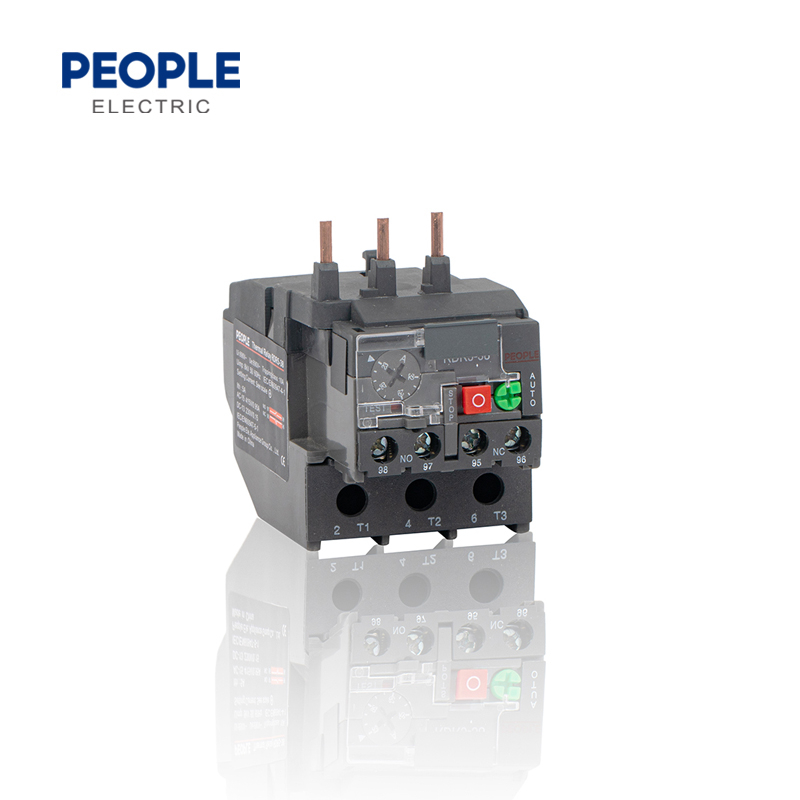

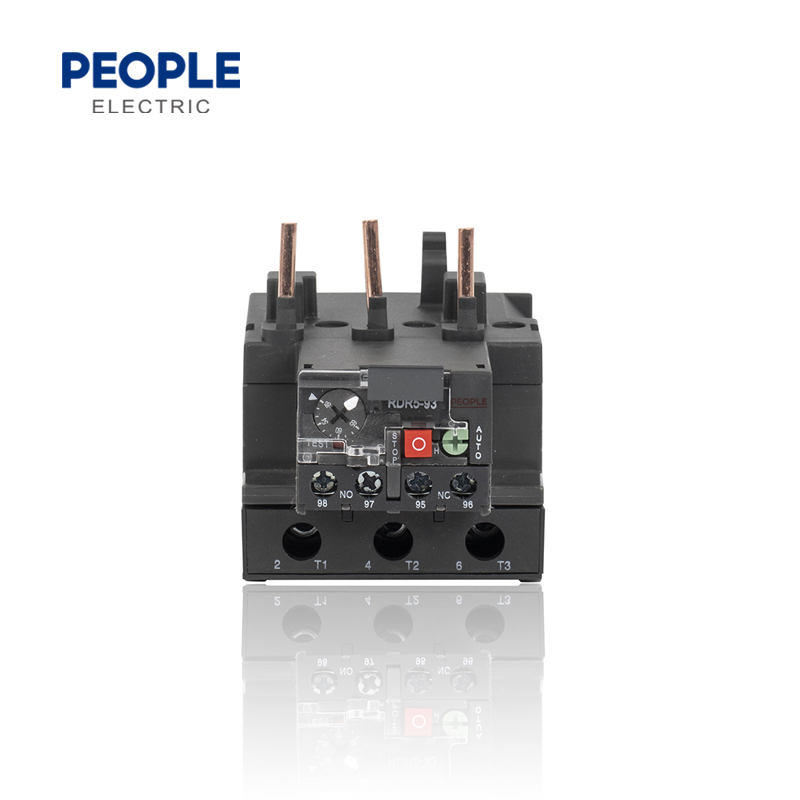

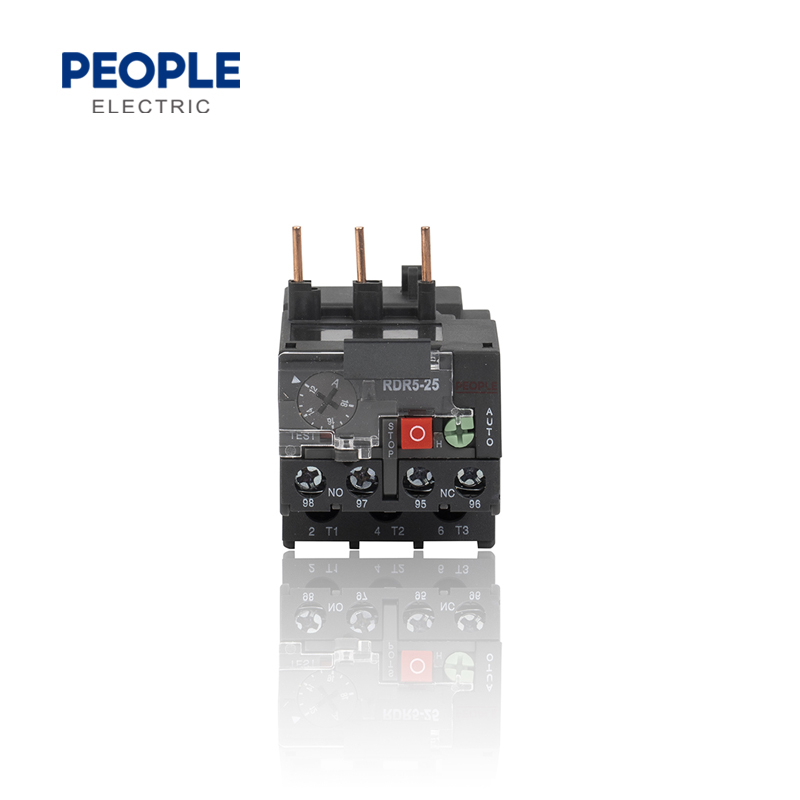

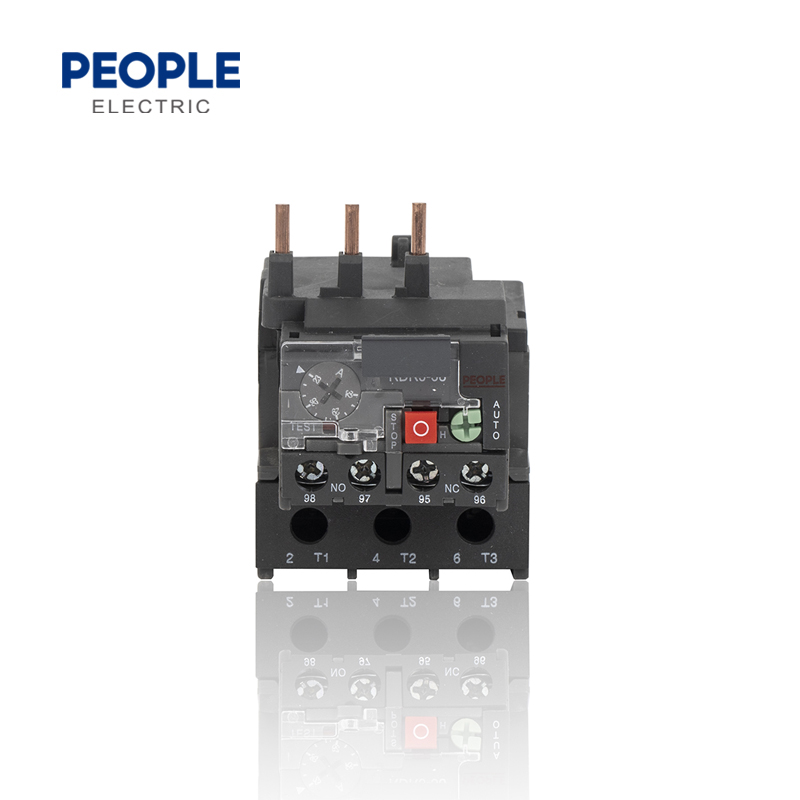

RDR5 Series Thermal Relay 0.1~93A Featured Image

RDR5 Series Thermal Relay 0.1~93A

RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage

Uimp(kv): 8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting.

Standard: IEC 60947-4-1 GB14048.4


Download as PDF
  • RDR5 Series Thermal Relay 0.1~93A
  • RDR5 Series Thermal Relay 0.1~93A
  • RDR5 Series Thermal Relay 0.1~93A
  • RDR5 Series Thermal Relay 0.1~93A
  • RDR5 Series Thermal Relay 0.1~93A
  • RDR5 Series Thermal Relay 0.1~93A

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage

Uimp(kv):8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting.

Standard: IEC 60947-4-1 GB14048.4

Structure and working principle
The actuating mechanism of the thermal relay is a spring type quick action jumping structure,and its internal structure diagram is shown in Figure 1
Structure function
■With phase failure protection
■With continuous adjustable setting current device
■With temperature compensation function
■With action indication
■With action indication
■With testing agency

Fig.1 Electrical schematic diagram
of internal structure
Working principle

■With stop button
■With manual and automatic reset buttons
■Electrically separable 1NO+1NC contact

The bimetal elements of the thermal relay are connected in series in the main circuit. When the line current increases, the bimetallic element is heated and bent to a certain extent to push the sliding plate,and the normally closed contact is separated from the push rod by compensating the bimetallic element. Ensure that the motor is out of phase and overload is effectively protected

4

Modol No Frame Size   Seting current Model No Frame Size Setting current
RDR5-25 25   0.1-0.16A
  0.13-0.25A
  0.25-0.4A
  0.4-0.63A
   0.63A-1A
    1-1.6A
   1.25-2A
    2.5-4A
    4-6A
    5.5-8A
    7-10A
    9-13A
    12-18A
    17-25A		 RDR5-36 36 23-32A
28-36A
RDR5-93 93 23-32A
30-40A
37-50A
48-65A
55-70A
63-80A
80-93A
  RDA5-25 RDR5-36 RDR5-93
Current Level 25                        36                           93
Rated Insulation Voltage Ui (V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Buton Yes Yes Yes
Stop Button Yes Yes Yes
Instal Type Insert Type Insert Type Insert Type
Auxliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V  Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
DC-13 220V  Rated  current A 0.2 0.2 02
Matching Contactor RDC5-06.09,12,18,25.38 RDC5-32,38 RDC5-40,50,65,80.95
Rated impulse withstand voltageUimp 8kV
Standard G814048.4 IEC60947-4-1

5 7 8 9 10

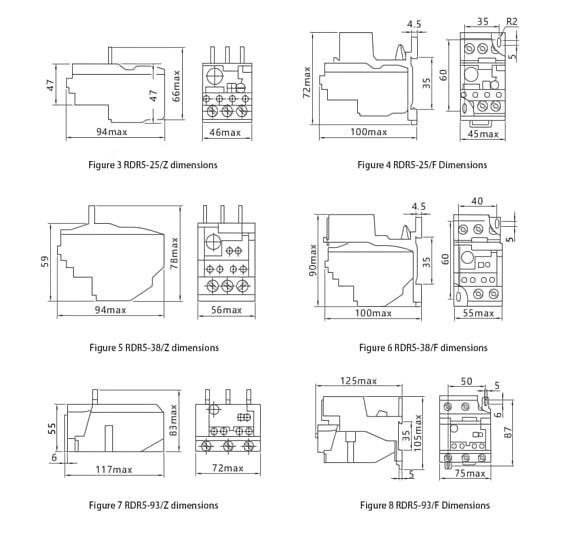

Shape and mounting dimensions

47

Structure and working principle
The actuating mechanism of the thermal relay is a spring type quick action jumping structure,and its internal structure diagram is shown in Figure 1
Structure function
■With phase failure protection
■With continuous adjustable setting current device
■With temperature compensation function
■With action indication
■With action indication
■With testing agency

Fig.1 Electrical schematic diagram
of internal structure
Working principle

■With stop button
■With manual and automatic reset buttons
■Electrically separable 1NO+1NC contact

The bimetal elements of the thermal relay are connected in series in the main circuit. When the line current increases, the bimetallic element is heated and bent to a certain extent to push the sliding plate,and the normally closed contact is separated from the push rod by compensating the bimetallic element. Ensure that the motor is out of phase and overload is effectively protected

4

Modol No Frame Size   Seting current Model No Frame Size Setting current
RDR5-25 25   0.1-0.16A
  0.13-0.25A
  0.25-0.4A
  0.4-0.63A
   0.63A-1A
    1-1.6A
   1.25-2A
    2.5-4A
    4-6A
    5.5-8A
    7-10A
    9-13A
    12-18A
    17-25A		 RDR5-36 36 23-32A
28-36A
RDR5-93 93 23-32A
30-40A
37-50A
48-65A
55-70A
63-80A
80-93A
  RDA5-25 RDR5-36 RDR5-93
Current Level 25                        36                           93
Rated Insulation Voltage Ui (V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Buton Yes Yes Yes
Stop Button Yes Yes Yes
Instal Type Insert Type Insert Type Insert Type
Auxliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V  Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
DC-13 220V  Rated  current A 0.2 0.2 02
Matching Contactor RDC5-06.09,12,18,25.38 RDC5-32,38 RDC5-40,50,65,80.95
Rated impulse withstand voltageUimp 8kV
Standard G814048.4 IEC60947-4-1

5 7 8 9 10

Shape and mounting dimensions

47
