Product Introduction

 RDM5L series residualcurrent circtbreaker(RCCBis mainiyaoplied to power distribution network of AC50/60Hz, rated operated volage up to 400V,rated operate current up to800A.RCCB has indirect touch protectionfor human, and protect the device against the fire danger caused by insulation damage andgrounding fauts.And it also candistribute electrical energy protect circuit and power-supply against overioad and short-circuit. and also for transferring circuit and starting motor unfrequently Slandard:EC60947-2 GB140482and GB/Z6829

RDM5L series residual current circuit breaker is a reliable power protection device, mainly used in AC50/60Hz distribution network. The equipment has the characteristics of rated working voltage up to 400V and rated working current up to 800A, which can meet the requirements of various circuits. This equipment conforms to international standards such as EC60947-2, GB140482 and GB/Z6829, and is an excellent power protection equipment.

1. The equipment mainly adopts residual current circuit breaker (RCCB) technology, which can provide indirect contact protection for the circuit and protect the device from fire hazard caused by insulation damage and ground fault. At the same time, it can also distribute the electric energy protection circuit and power supply, prevent the overload and short circuit conversion circuit and the starting motor and other non-frequent faults.

2. The main characteristics of RDM5L series residual current circuit breaker include efficiency, reliability and safety. It can provide comprehensive protection for circuits and prevent electrical equipment and circuits from being damaged. The device also has the advantages of easy installation and operation, and can quickly realize circuit protection.

3. RDM5L series residual current circuit breaker is a power protection device with complete functions and excellent performance, which is suitable for various circuit requirements. This equipment not only has high efficiency, reliability and safety, but also is easy to install and operate. It is an ideal choice for circuit protection.

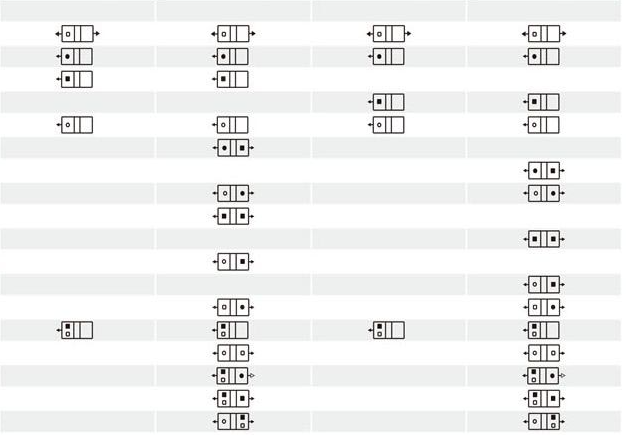

Internal Accessory Code Table

Code Accessory RDM5L-125/250 RDM5L-400/800
3P,4P A/D Type 4P B/C Type 3P,4P A/D Type 4P B/C Type
00 No internal accessory 5
08 Alarm switch
10 Shunt release
20 Auxiliary switch(1NO1NC)
Auxiliary switch(2NO2NC)
30 Under-voltage release
40 Shunt releaset+Auxiliary switch(1NO1NC)
Shunt release+Auxiliary switch(2NO2NC)
50 Shunt release+Under-voltage release
60 2 sets Auxiliary switch(2NO2NC)
2 sets Auxiliary switch(4NO4NC)
70 Under-voltage release+Auxiliary switch(1NO1NC)
Under-voltage release+Auxiliary switch(2NO2NC)
18 Shunt release+Alarm switch
28 Auxiliary switch(1NO1NC)Alarm switch
38 Under-voltage release+Alarm switch
48 Shunt releasetAuxiliary switch(1NO1NC)+Alarm switch
68 2 sets Auxiliary switch(2NO2NC)Alarm switch
78 Under-voltage release Auxiliary switch(1NO1NC)Alarm switch

4P product code Table2

Code Instruction
A Type Neutral pole has no overcurrent release, and N pole is always connecting and do not break or close with the other three poles.
B Type Neutral pole has no overcurent release, and N pole breaks and close with the other three poles together.N pole closed first and break later)
C Type Neutral pole has overcurent release, and N pole breaks and cose with the other three poles together.(N pole closed first and break later)
D Type Neutral pole has overcurrent release, and N pole is always connecting and do not break or close with the other three poles.
Frame size rated current lnm(A) 125 250 400 800
Rated current In(A) 32、63、125 250 400 630、800
Current set IR(A)       (12.5-125)+close (100-250)+close (160-400)+close (250-800)+close
Pole 3P、4P
Rated frequency(Hz） 50
Rated insulation voltage Ui(V) AC1000
Rated impulse withstand voltage Uimp(V) 8000
Rated operate voltage Ue(V) AC400
Arc distance (mm) ≤50 ≤100
Short-circuit breaking capacity level M H M H M H M H
Rated ultimate short-circuit breaking capacity lcu(kA) 50 85 50 85 65 100 75 100
Rated operate short-circuit breaking capacity lcs(kA) 35 50 35 50 42 50 50 50
Rated short-time withstand current lcw(kA/0.5s) 一 5 10
Using Type A B
Standard GB14048.1 GB14048.2 GB14048.4
Ambient temperature -35℃~+70℃
Electrical life 8000 8000 7500 7500
Mechanical life 20000 20000 10000 10000
Communicate function
  ■  ■ ■ ■
Time set
  ■  ■ ■ ■
Undervoltage release ■ ■ ■ ■
Shunt release ■ ■ ■ ■
Alarm contact ■ ■ ■ ■
Auxiliary contact ■ ■ ■ ■
Dimension11
(mm)		 W 92(3P) 107(3P) 150(3P) 210(3P)
122(4P) 142(4P) 198(4P) 280(4P)
L 150 165 257 280
H1 110 115 148 168
H2 96 94 115 122

Type selection

RDM5L -250 L P 4 3  00 2 A I R
丨 丨 丨 丨 丨 丨 丨 丨 丨 丨 丨
Code Frame size Break capacity Oprete method Pole Release code Accessory code
 Application 4P Optional code Alarm Module Code intall Code
RDM5L:
MCCB with
residual current
profect function		 code
125
250
400
800		 L:Normal type
M:Middle type
H: High type		 Non:
directhandle
operate
Z:Rotary handieoperate
P:motor operate		 4:3P4:4P Release option code
2:Instantanus
Release
3:Compiex Release		 See Table1 Non:distribution MCCB
2:motorprotect MCCB		 Non: 3P
4P:See Table2		 Non: no leakage,alarm modulet:leakage alarmand trippingil:leakage alarm,no tripping Non:frontboard connectR:backboard connectPFinsert typefront boardconnectPRinsert typeback boardconnect

For example: RDM5L-250MP/4310BII  225A 100mA,0.4s AC230V shunt release 100 PCS means that RDM4L-250,midde capacity M. Motor operate,4P B type distribute protect MCCB,complex releae,with AC 230V shunt release. II type leakage alarm no tripinng module. front board connect.

6

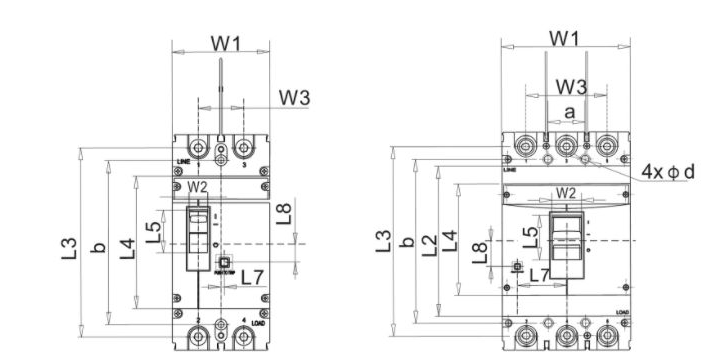

                                               2 Poles                                                                        3  Poles

7

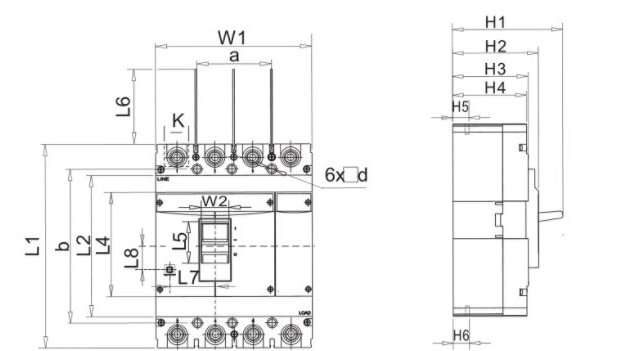

                                              4  Poles                                                                Side

Product model pole Front panel wiring Installation size Button position
L1 L2 L3 L4 L5 L6 W1 W2 W3 H1 H2 H3 H4 H5 H6 K a b d L7 L8
RDM5-63L/M
RDM5-125S/L		 2 130.0 - 116.5 85.0 - 49.5 50.0 11.0 25.0 83.0 71.0 - 57.0 24.5 24.5 18.5 - 111.0 3.5 17.0 20.0
3 130.0 - 116.5 85.0 - 49.5 75.0 11.0 50.0 83.0 71.0 - 57.0 24.5 24.5 18.5 25.0 111.0 3.5 16.5 20.0
4 130.0 - 116.5 85.0 - 49.5 100.0 11.0 75.0 83.0 71.0 - 57.0 24.5 24.5 18.5 50.0 111.0 3.5 16.5 20.0
RDM5-125M/H 2 152.0 - 132.0 88.0 31.0 52.0  62 14.5 30.0 109.5 96.0 - 82.0 28.5 28.5 18.0 - 129.0 4.5 - 6.5
3 152.0 - 132.0 88.0 31.0 52.0  92 14.5 60.0 110.0 96.0 - 82.0 28.5 28.5 18.0 30.0 129.0 4.5 22.0 15.5
4 152.0 - 132.0 88.0 31.0 65.0 122.0 14.5 90.0 110.0 96.0 - 82.0 28.5 28.5 18.0 60.0 129.0 4.5 22.0 16.5
RDM5-160S/L/M 2 150.0 - 133.0 88.0 31.0 52.0  62 14.5 30.0 93.0 79.0 - 65.0 23.5 23.5 22.0 - 129.0 3.5 - 16.5
3 150.0 - 133.0 88.0 31.0 52.0  92 14.5 60.0 93.0 79.0 - 65.0 23.5 23.5 22.0 30.0 129.0 3.5 22.0 15.5
4 150.0 - 133.0 88.0 31.0 52.0 122.0 14.5 90.0 93.0 79.0 - 65.0 23.5 23.5 22.0 60.0 129.0 3.5 22.0 16.5
RDM5-25S/L 2 165.0 - 145.5 102.0 33.0 53.0 75.0 14.0 35.0 96.0 76.0 - 67.0  23 23.0 25.0 - 126.0 4.5 2.5 15.5
3 165.0 - 145.5 102.0 33.0 53.0 107.0 14.0 70.0 96.0 76.0 - 67.0  23 23.0 25.0 35.0 126.0 4.5 42.5 5.5
4 165.0 - 145.5 102.0 33.0 53.0 142.0 14.0 105.0 96.0 76.0 - 67.0  23 23.0 25.0 70.0 126.0 4.5 43.0 15.5
RDM5-250M/H 2 165.0 - 145.0 102.0 53.0 53.0 75.0 14.0 55.0 112.5 94.0 - 85.0  22 22.0 24.0 - 126.0 4.5 2.5 15.5
3 165.0 - 145.0 102.0 33.0 53.0 107.0 14.0 70.0 115.0 94.0 - 85.0  23 23.0 23.0 35.0 126.0 4.5 42.5 15.5
4 165.0 - 145.0 102.0 33.0 53.0 142.0 14.0 105.0 115.0 94.0 - 85.0  23 23.0 23.0 70.0 126.0 4.5 43.0 15.0
RDM5-400L/M/H
RDM5-630S		 3 258.0 178.0 224.0 132.0 53.0 100.0 150.0 35.0 96.0 152.0 115.0 101.0 99.0  38 38.0 31.0 44.0 194.0 7.0 57.5 30.0
4 258.0 179.0 224.0 132.0 53.0 100.0 198.0 35.0 144.0 152.0 115.0 101.0 99.0  38 38.0 31.0 94.0 194.0 7.0 57.5 30.0
RDM5-630L/M/H 3 270.0 185.0 235.5 146.0 52.5 100.0 182.0 35.5 116.0 158.0 119.0 106.0 103.0  45 43.0 41.0 58.0 200.0 7.0 58.0 32.0
4 270.0 185.0 235.5 146.0 52.5 100.0 240.0 35.5 174.0 158.0 119.0 106.0 103.0  45 43.0 41.0 116.0 200.0 7.0 58.0 31.5
RDM5-800L/M/H 3 280.0 205.0 243.0 148.0 52.0 100.0 210.0 35.0 140.0 159.0 122.0 109.0 105.0 40.5 42.5 45.0 70.0 243.0 7.0 53.0 24.5
4 280.0 205.0 243.0 148.0 52.0 100.0 280.0 35.0 210.0 159.0 122.0 109.0 105.0 40.5 42.5 45.0 140.0 243.0 7.0 53.0 24.5

8

  Size code
(L11) W3 L9 L10
  RDM5-63L M
  RDM5-125S、L		 64 19 14 43
  RDM5-125M H
  RDM5-160S、L M		 - 23 24    40
RDM5-250S.L.M.H - 23 30 44
RDM5-400L、M、H
  RDM5-630S		 - 47 39 66
RDM5-630L、M、H - 47 39 66
RDM5-800L、M、H - 47 42 66

RDM5 series rear panel wiring installation panel opening size

9 10

                           3 poles                                                4 Poles

RDM5 series rear panel wiring appearance and installation dimensions

11 12

       RDM5-125/M/H 160、250                  RDM5-400 630 800

RDM5-125~800 rear wiring appearance and mounting plate opening size

Product model Size code
H3 H4 D W L2 d2 A B C d1
RDM5-125M H 64 100 M8 50 132 24 30 108 60 5.5
RDM5-160L.M
RDM5-250L、M、H 70 100 M10 35 145 15 35 126 70 5.5
RDM5-400L.M、H
RDM5-630S		 71 105.5 - 48 2242 32 44 194 94 7
RDM5-630L.M、H 46 105 - 58 2346 37 58 200 116 7
RDM5-800L,M.H 105 105 - 70 2436 48 70 243 70 7.5
RDM5 series plug-in front panel dimensions

13 14

         Beam installation                                   Flat mount

Dimensions of RDM5-125~800 plug-in front panel circuit breaker

Product model Size code
A G K H H        ₂ Hs L1    L2 AM BM
RDM5-125M H 172 95 38.5 50.5 35   16.5 61 185   217 M6 M8
RDM5-160L,M
RDM5-250L,M、H 183 95 44 52 35   18 65 230   259 M6 M10
RDM5-400L,M,H
RDM5-630S		 276 170 53 79.5 67   18 - 322   352 M6 M10
RDM5-630L,M、H 299 163.5 67.5 84.5 65.5   20 - 368   397 M8 M12
RDM5-80OL,M,H 303 179 62 87.5 60.5   28 118 375   405 M10 M12
Hole size of the plug-in front wiring mounting plate (X-XY-Y is the center of the circuit breaker)

15 16

    Beam installation                         Flat mount

RDM5-125~800 plug-in front wiring mounting plate opening size
Product model RDM5-125M.H
RDM5-160L.M		 RDM5-250L.M,H RDM5-400L,M,H
RDM5-630S		 RDM5-630L,M,H RDM5-800L,M.H
pole 3 3 3 3 3
Mounting plate opening size（mm） B 66 70 115 90.5 90.5
B1 50 60 - - 65
C 60 64 135 144.5 144.5
C1 35 35 - - 80
d 6.5 6.5 6.5 8.5 11

RDM5 series plug-in panel rear dimensions and mounting panel opening dimensions

17 18

Dimensions of RDM5-125~800 plug-in rear panel circuit breaker
Product model Size code
A F G K H H1 H2    H3 H4 AM    BM
RDM5-125M H
RDM5-160L M		 168 133 92 38    48 32.5 32.5    18 17 M6    M8
RDM5-25OL、M、H 186 144 95 45.5 49.5 33.5 34    15 17 M6    M8
RDM5-400L、M、H
RDM5-630S		 280 224 171 54.5 59.5 40 44  23.5 20 M8   M12
RDM5-630L、M、H 300 234 170 65    59 40 50    30 20 M8   M12
RDM5-800L、M、H 305 243 181 62    87 60 - - 28 M10   M14

Hole size of plug-in rear wiring installation panel (X-XY-Y is the center of the circuit breaker)

19

RDM5-125~800 plug-in rear wiring installation panel opening size
Product model     RDM5-125M.H
    RDM5-160L     M		 RDM5-25OL,M,H   RDM5-400L
  RDM5-630S		    M.H 9DM5-630L  M.H RDM5-80OL. M.H
Pole 3 4 3 4    3    4 3 4 3 4
Mounting plate opening size（mm） A 91 - 107 -   149 - 182 - 210 -
A1 - 129 - 145 -   200   242 - 290
B 60 - 70 -   60   100 - 90
B1 - 90 - 105 -   108 - 158 - 162
C 56 54 129 123 146
D 38 45.5 54.5 65 62
E 92 95 171 170 181
d 6.5 6.5 8.5 8.5 11

RDM5L series residual current circuit breaker is a reliable power protection device, mainly used in AC50/60Hz distribution network. The equipment has the characteristics of rated working voltage up to 400V and rated working current up to 800A, which can meet the requirements of various circuits. This equipment conforms to international standards such as EC60947-2, GB140482 and GB/Z6829, and is an excellent power protection equipment.

1. The equipment mainly adopts residual current circuit breaker (RCCB) technology, which can provide indirect contact protection for the circuit and protect the device from fire hazard caused by insulation damage and ground fault. At the same time, it can also distribute the electric energy protection circuit and power supply, prevent the overload and short circuit conversion circuit and the starting motor and other non-frequent faults.

2. The main characteristics of RDM5L series residual current circuit breaker include efficiency, reliability and safety. It can provide comprehensive protection for circuits and prevent electrical equipment and circuits from being damaged. The device also has the advantages of easy installation and operation, and can quickly realize circuit protection.

3. RDM5L series residual current circuit breaker is a power protection device with complete functions and excellent performance, which is suitable for various circuit requirements. This equipment not only has high efficiency, reliability and safety, but also is easy to install and operate. It is an ideal choice for circuit protection.

Internal Accessory Code Table

Code Accessory RDM5L-125/250 RDM5L-400/800
3P,4P A/D Type 4P B/C Type 3P,4P A/D Type 4P B/C Type
00 No internal accessory 5
08 Alarm switch
10 Shunt release
20 Auxiliary switch(1NO1NC)
Auxiliary switch(2NO2NC)
30 Under-voltage release
40 Shunt releaset+Auxiliary switch(1NO1NC)
Shunt release+Auxiliary switch(2NO2NC)
50 Shunt release+Under-voltage release
60 2 sets Auxiliary switch(2NO2NC)
2 sets Auxiliary switch(4NO4NC)
70 Under-voltage release+Auxiliary switch(1NO1NC)
Under-voltage release+Auxiliary switch(2NO2NC)
18 Shunt release+Alarm switch
28 Auxiliary switch(1NO1NC)Alarm switch
38 Under-voltage release+Alarm switch
48 Shunt releasetAuxiliary switch(1NO1NC)+Alarm switch
68 2 sets Auxiliary switch(2NO2NC)Alarm switch
78 Under-voltage release Auxiliary switch(1NO1NC)Alarm switch

4P product code Table2

Code Instruction
A Type Neutral pole has no overcurrent release, and N pole is always connecting and do not break or close with the other three poles.
B Type Neutral pole has no overcurent release, and N pole breaks and close with the other three poles together.N pole closed first and break later)
C Type Neutral pole has overcurent release, and N pole breaks and cose with the other three poles together.(N pole closed first and break later)
D Type Neutral pole has overcurrent release, and N pole is always connecting and do not break or close with the other three poles.
Frame size rated current lnm(A) 125 250 400 800
Rated current In(A) 32、63、125 250 400 630、800
Current set IR(A)       (12.5-125)+close (100-250)+close (160-400)+close (250-800)+close
Pole 3P、4P
Rated frequency(Hz） 50
Rated insulation voltage Ui(V) AC1000
Rated impulse withstand voltage Uimp(V) 8000
Rated operate voltage Ue(V) AC400
Arc distance (mm) ≤50 ≤100
Short-circuit breaking capacity level M H M H M H M H
Rated ultimate short-circuit breaking capacity lcu(kA) 50 85 50 85 65 100 75 100
Rated operate short-circuit breaking capacity lcs(kA) 35 50 35 50 42 50 50 50
Rated short-time withstand current lcw(kA/0.5s) 一 5 10
Using Type A B
Standard GB14048.1 GB14048.2 GB14048.4
Ambient temperature -35℃~+70℃
Electrical life 8000 8000 7500 7500
Mechanical life 20000 20000 10000 10000
Communicate function
  ■  ■ ■ ■
Time set
  ■  ■ ■ ■
Undervoltage release ■ ■ ■ ■
Shunt release ■ ■ ■ ■
Alarm contact ■ ■ ■ ■
Auxiliary contact ■ ■ ■ ■
Dimension11
(mm)		 W 92(3P) 107(3P) 150(3P) 210(3P)
122(4P) 142(4P) 198(4P) 280(4P)
L 150 165 257 280
H1 110 115 148 168
H2 96 94 115 122

Type selection

RDM5L -250 L P 4 3  00 2 A I R
丨 丨 丨 丨 丨 丨 丨 丨 丨 丨 丨
Code Frame size Break capacity Oprete method Pole Release code Accessory code
 Application 4P Optional code Alarm Module Code intall Code
RDM5L:
MCCB with
residual current
profect function		 code
125
250
400
800		 L:Normal type
M:Middle type
H: High type		 Non:
directhandle
operate
Z:Rotary handieoperate
P:motor operate		 4:3P4:4P Release option code
2:Instantanus
Release
3:Compiex Release		 See Table1 Non:distribution MCCB
2:motorprotect MCCB		 Non: 3P
4P:See Table2		 Non: no leakage,alarm modulet:leakage alarmand trippingil:leakage alarm,no tripping Non:frontboard connectR:backboard connectPFinsert typefront boardconnectPRinsert typeback boardconnect

For example: RDM5L-250MP/4310BII  225A 100mA,0.4s AC230V shunt release 100 PCS means that RDM4L-250,midde capacity M. Motor operate,4P B type distribute protect MCCB,complex releae,with AC 230V shunt release. II type leakage alarm no tripinng module. front board connect.

6

                                               2 Poles                                                                        3  Poles

7

                                              4  Poles                                                                Side

Product model pole Front panel wiring Installation size Button position
L1 L2 L3 L4 L5 L6 W1 W2 W3 H1 H2 H3 H4 H5 H6 K a b d L7 L8
RDM5-63L/M
RDM5-125S/L		 2 130.0 - 116.5 85.0 - 49.5 50.0 11.0 25.0 83.0 71.0 - 57.0 24.5 24.5 18.5 - 111.0 3.5 17.0 20.0
3 130.0 - 116.5 85.0 - 49.5 75.0 11.0 50.0 83.0 71.0 - 57.0 24.5 24.5 18.5 25.0 111.0 3.5 16.5 20.0
4 130.0 - 116.5 85.0 - 49.5 100.0 11.0 75.0 83.0 71.0 - 57.0 24.5 24.5 18.5 50.0 111.0 3.5 16.5 20.0
RDM5-125M/H 2 152.0 - 132.0 88.0 31.0 52.0  62 14.5 30.0 109.5 96.0 - 82.0 28.5 28.5 18.0 - 129.0 4.5 - 6.5
3 152.0 - 132.0 88.0 31.0 52.0  92 14.5 60.0 110.0 96.0 - 82.0 28.5 28.5 18.0 30.0 129.0 4.5 22.0 15.5
4 152.0 - 132.0 88.0 31.0 65.0 122.0 14.5 90.0 110.0 96.0 - 82.0 28.5 28.5 18.0 60.0 129.0 4.5 22.0 16.5
RDM5-160S/L/M 2 150.0 - 133.0 88.0 31.0 52.0  62 14.5 30.0 93.0 79.0 - 65.0 23.5 23.5 22.0 - 129.0 3.5 - 16.5
3 150.0 - 133.0 88.0 31.0 52.0  92 14.5 60.0 93.0 79.0 - 65.0 23.5 23.5 22.0 30.0 129.0 3.5 22.0 15.5
4 150.0 - 133.0 88.0 31.0 52.0 122.0 14.5 90.0 93.0 79.0 - 65.0 23.5 23.5 22.0 60.0 129.0 3.5 22.0 16.5
RDM5-25S/L 2 165.0 - 145.5 102.0 33.0 53.0 75.0 14.0 35.0 96.0 76.0 - 67.0  23 23.0 25.0 - 126.0 4.5 2.5 15.5
3 165.0 - 145.5 102.0 33.0 53.0 107.0 14.0 70.0 96.0 76.0 - 67.0  23 23.0 25.0 35.0 126.0 4.5 42.5 5.5
4 165.0 - 145.5 102.0 33.0 53.0 142.0 14.0 105.0 96.0 76.0 - 67.0  23 23.0 25.0 70.0 126.0 4.5 43.0 15.5
RDM5-250M/H 2 165.0 - 145.0 102.0 53.0 53.0 75.0 14.0 55.0 112.5 94.0 - 85.0  22 22.0 24.0 - 126.0 4.5 2.5 15.5
3 165.0 - 145.0 102.0 33.0 53.0 107.0 14.0 70.0 115.0 94.0 - 85.0  23 23.0 23.0 35.0 126.0 4.5 42.5 15.5
4 165.0 - 145.0 102.0 33.0 53.0 142.0 14.0 105.0 115.0 94.0 - 85.0  23 23.0 23.0 70.0 126.0 4.5 43.0 15.0
RDM5-400L/M/H
RDM5-630S		 3 258.0 178.0 224.0 132.0 53.0 100.0 150.0 35.0 96.0 152.0 115.0 101.0 99.0  38 38.0 31.0 44.0 194.0 7.0 57.5 30.0
4 258.0 179.0 224.0 132.0 53.0 100.0 198.0 35.0 144.0 152.0 115.0 101.0 99.0  38 38.0 31.0 94.0 194.0 7.0 57.5 30.0
RDM5-630L/M/H 3 270.0 185.0 235.5 146.0 52.5 100.0 182.0 35.5 116.0 158.0 119.0 106.0 103.0  45 43.0 41.0 58.0 200.0 7.0 58.0 32.0
4 270.0 185.0 235.5 146.0 52.5 100.0 240.0 35.5 174.0 158.0 119.0 106.0 103.0  45 43.0 41.0 116.0 200.0 7.0 58.0 31.5
RDM5-800L/M/H 3 280.0 205.0 243.0 148.0 52.0 100.0 210.0 35.0 140.0 159.0 122.0 109.0 105.0 40.5 42.5 45.0 70.0 243.0 7.0 53.0 24.5
4 280.0 205.0 243.0 148.0 52.0 100.0 280.0 35.0 210.0 159.0 122.0 109.0 105.0 40.5 42.5 45.0 140.0 243.0 7.0 53.0 24.5

8

  Size code
(L11) W3 L9 L10
  RDM5-63L M
  RDM5-125S、L		 64 19 14 43
  RDM5-125M H
  RDM5-160S、L M		 - 23 24    40
RDM5-250S.L.M.H - 23 30 44
RDM5-400L、M、H
  RDM5-630S		 - 47 39 66
RDM5-630L、M、H - 47 39 66
RDM5-800L、M、H - 47 42 66

RDM5 series rear panel wiring installation panel opening size

9 10

                           3 poles                                                4 Poles

RDM5 series rear panel wiring appearance and installation dimensions

11 12

       RDM5-125/M/H 160、250                  RDM5-400 630 800

RDM5-125~800 rear wiring appearance and mounting plate opening size

Product model Size code
H3 H4 D W L2 d2 A B C d1
RDM5-125M H 64 100 M8 50 132 24 30 108 60 5.5
RDM5-160L.M
RDM5-250L、M、H 70 100 M10 35 145 15 35 126 70 5.5
RDM5-400L.M、H
RDM5-630S		 71 105.5 - 48 2242 32 44 194 94 7
RDM5-630L.M、H 46 105 - 58 2346 37 58 200 116 7
RDM5-800L,M.H 105 105 - 70 2436 48 70 243 70 7.5
RDM5 series plug-in front panel dimensions

13 14

         Beam installation                                   Flat mount

Dimensions of RDM5-125~800 plug-in front panel circuit breaker

Product model Size code
A G K H H        ₂ Hs L1    L2 AM BM
RDM5-125M H 172 95 38.5 50.5 35   16.5 61 185   217 M6 M8
RDM5-160L,M
RDM5-250L,M、H 183 95 44 52 35   18 65 230   259 M6 M10
RDM5-400L,M,H
RDM5-630S		 276 170 53 79.5 67   18 - 322   352 M6 M10
RDM5-630L,M、H 299 163.5 67.5 84.5 65.5   20 - 368   397 M8 M12
RDM5-80OL,M,H 303 179 62 87.5 60.5   28 118 375   405 M10 M12
Hole size of the plug-in front wiring mounting plate (X-XY-Y is the center of the circuit breaker)

15 16

    Beam installation                         Flat mount

RDM5-125~800 plug-in front wiring mounting plate opening size
Product model RDM5-125M.H
RDM5-160L.M		 RDM5-250L.M,H RDM5-400L,M,H
RDM5-630S		 RDM5-630L,M,H RDM5-800L,M.H
pole 3 3 3 3 3
Mounting plate opening size（mm） B 66 70 115 90.5 90.5
B1 50 60 - - 65
C 60 64 135 144.5 144.5
C1 35 35 - - 80
d 6.5 6.5 6.5 8.5 11

RDM5 series plug-in panel rear dimensions and mounting panel opening dimensions

17 18

Dimensions of RDM5-125~800 plug-in rear panel circuit breaker
Product model Size code
A F G K H H1 H2    H3 H4 AM    BM
RDM5-125M H
RDM5-160L M		 168 133 92 38    48 32.5 32.5    18 17 M6    M8
RDM5-25OL、M、H 186 144 95 45.5 49.5 33.5 34    15 17 M6    M8
RDM5-400L、M、H
RDM5-630S		 280 224 171 54.5 59.5 40 44  23.5 20 M8   M12
RDM5-630L、M、H 300 234 170 65    59 40 50    30 20 M8   M12
RDM5-800L、M、H 305 243 181 62    87 60 - - 28 M10   M14

Hole size of plug-in rear wiring installation panel (X-XY-Y is the center of the circuit breaker)

19

RDM5-125~800 plug-in rear wiring installation panel opening size
Product model     RDM5-125M.H
    RDM5-160L     M		 RDM5-25OL,M,H   RDM5-400L
  RDM5-630S		    M.H 9DM5-630L  M.H RDM5-80OL. M.H
Pole 3 4 3 4    3    4 3 4 3 4
Mounting plate opening size（mm） A 91 - 107 -   149 - 182 - 210 -
A1 - 129 - 145 -   200   242 - 290
B 60 - 70 -   60   100 - 90
B1 - 90 - 105 -   108 - 158 - 162
C 56 54 129 123 146
D 38 45.5 54.5 65 62
E 92 95 171 170 181
d 6.5 6.5 8.5 8.5 11
