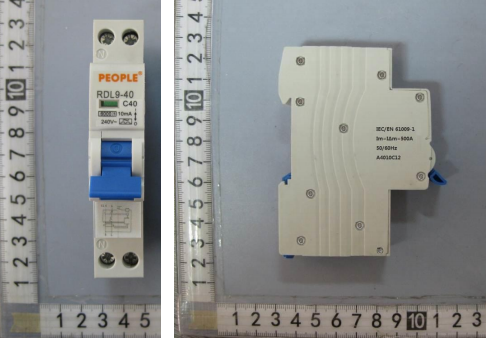

Samples & Structures

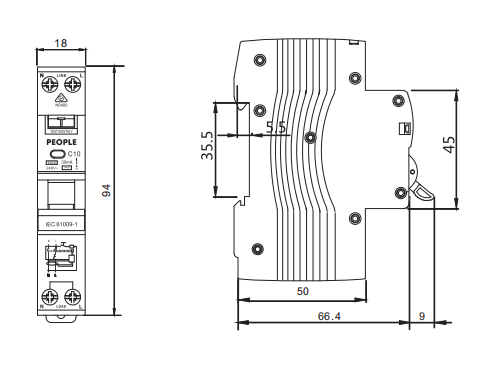

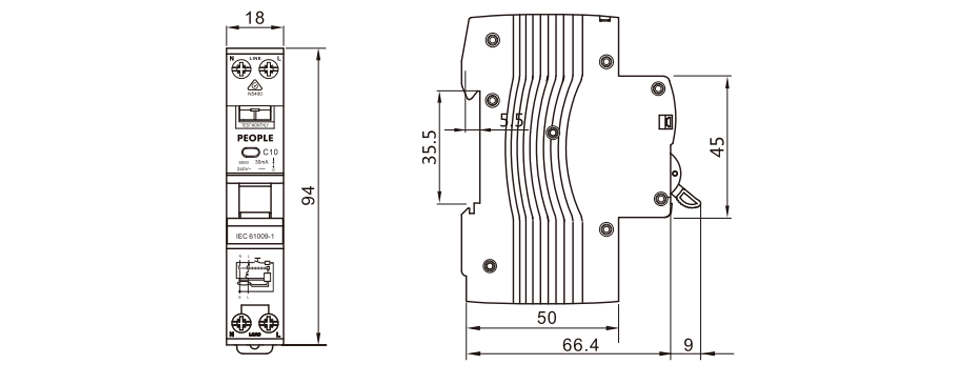

Dimensions

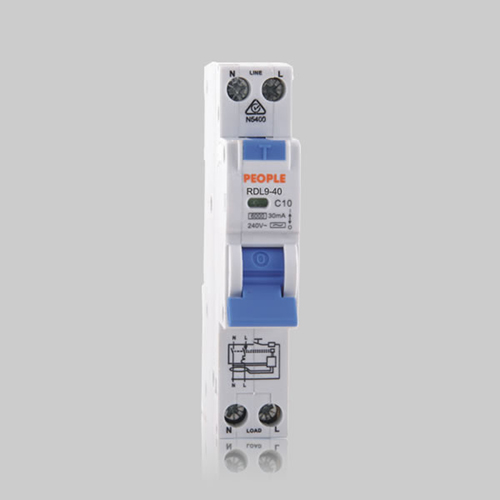

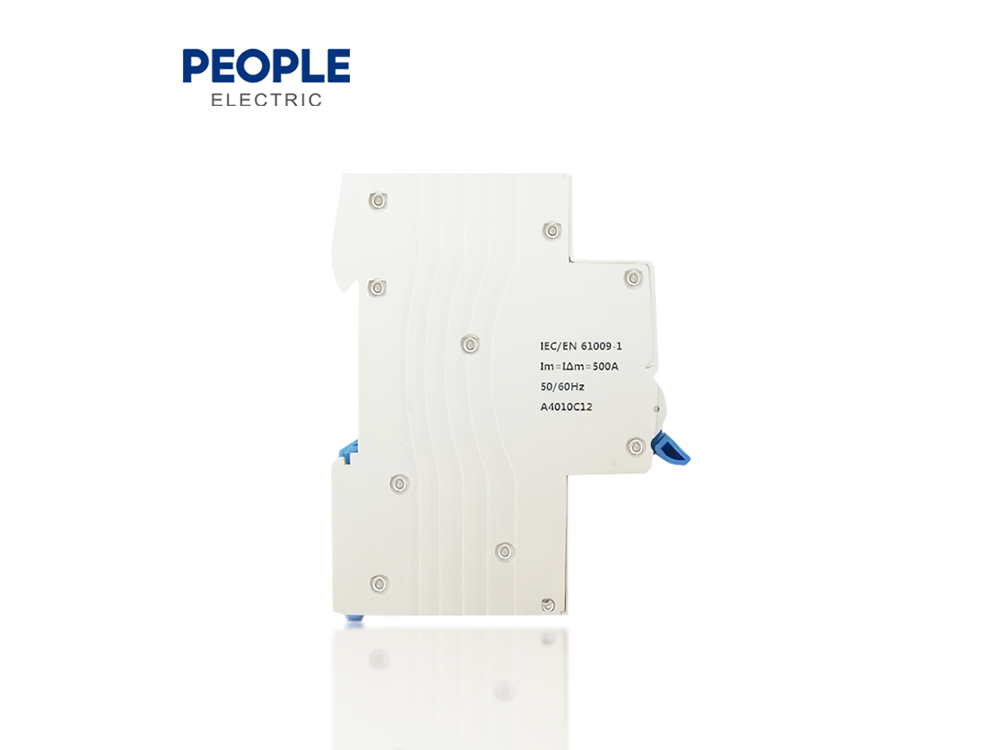

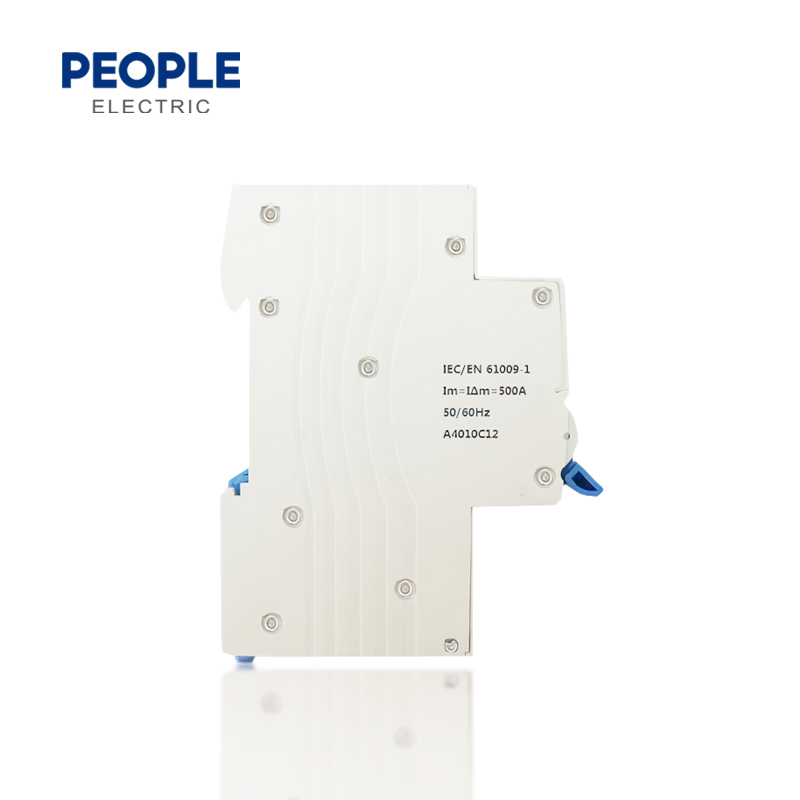

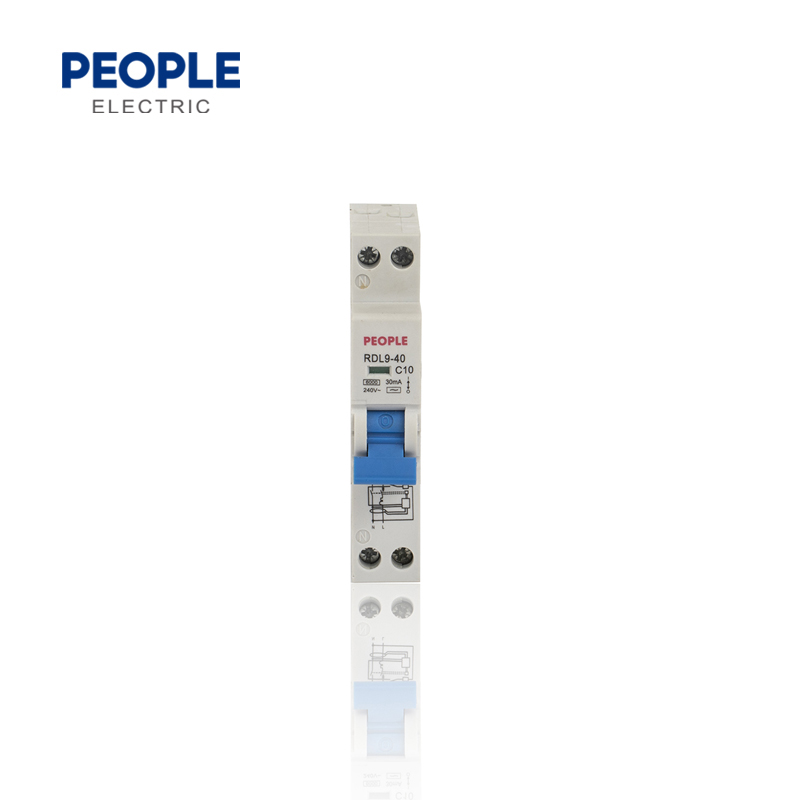

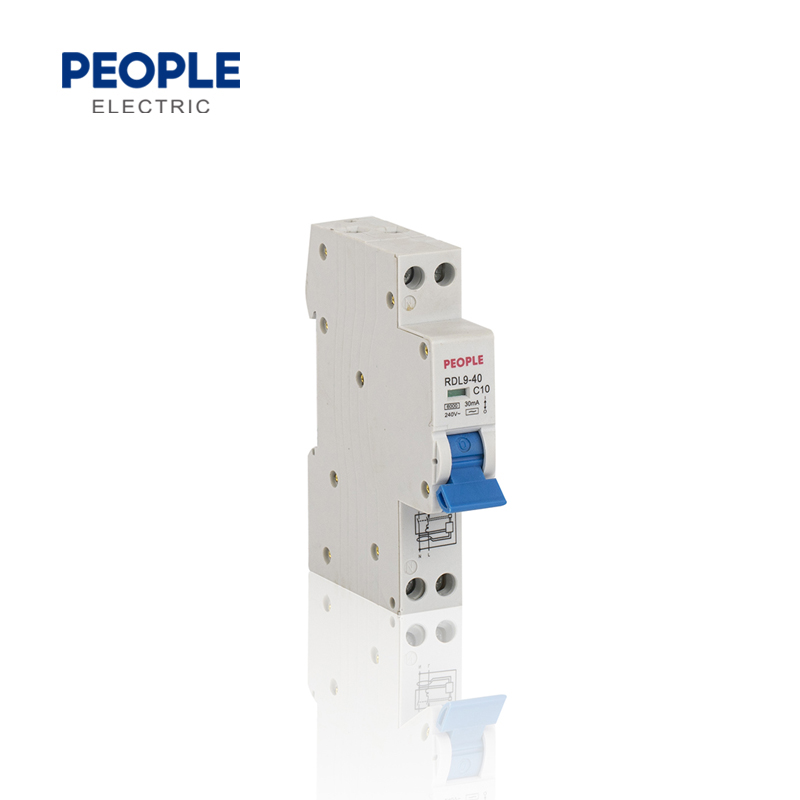

Product Introduction

RDL9-40 residual current circuit breaker with over-current protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection.

Features

Voltage type leakage circuit breaker for low voltage neutral grounding of transformer.   Its characterized in that when a person gets an electric shock, a relatively high voltage is generated on the zero line to the ground, causing the relay to move, and the power switch is tripped.

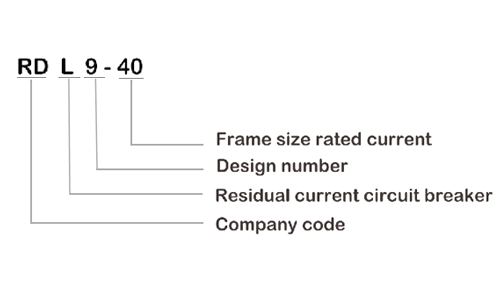

RDL9-40 Series

Residual current circuit breaker can solve problems of protection of people electric shock, and has the function of electric fire automatic protection. So, it has good prospect for application.

Technical  specifications


Standard   IEC/EN 61009
Type(wave form of the earth leakage sensed)   AC,A
Thermo-magnetic release characteristic   B,C
Rated current In A 6,10,16,20,25,32,40
Poles   1P+N
Rated voltage Ue V 230/400-240/415
Rated sensitivity l△n A 0.03,0.1,0.3
Rated short-circuit capacity Icn A 6000
Break time under I△n S ≤0.1
Electrical life   2000 times
Mechanical life   2000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal connection type   Cable/pin type busbar/ U type busbar

22

23 24

Residual current circuit breaker can solve problems of protection of people electric shock, and has the function of electric fire automatic protection. So, it has good prospect for application.

Technical  specifications


Standard   IEC/EN 61009
Type(wave form of the earth leakage sensed)   AC,A
Thermo-magnetic release characteristic   B,C
Rated current In A 6,10,16,20,25,32,40
Poles   1P+N
Rated voltage Ue V 230/400-240/415
Rated sensitivity l△n A 0.03,0.1,0.3
Rated short-circuit capacity Icn A 6000
Break time under I△n S ≤0.1
Electrical life   2000 times
Mechanical life   2000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal connection type   Cable/pin type busbar/ U type busbar

22

23 24
