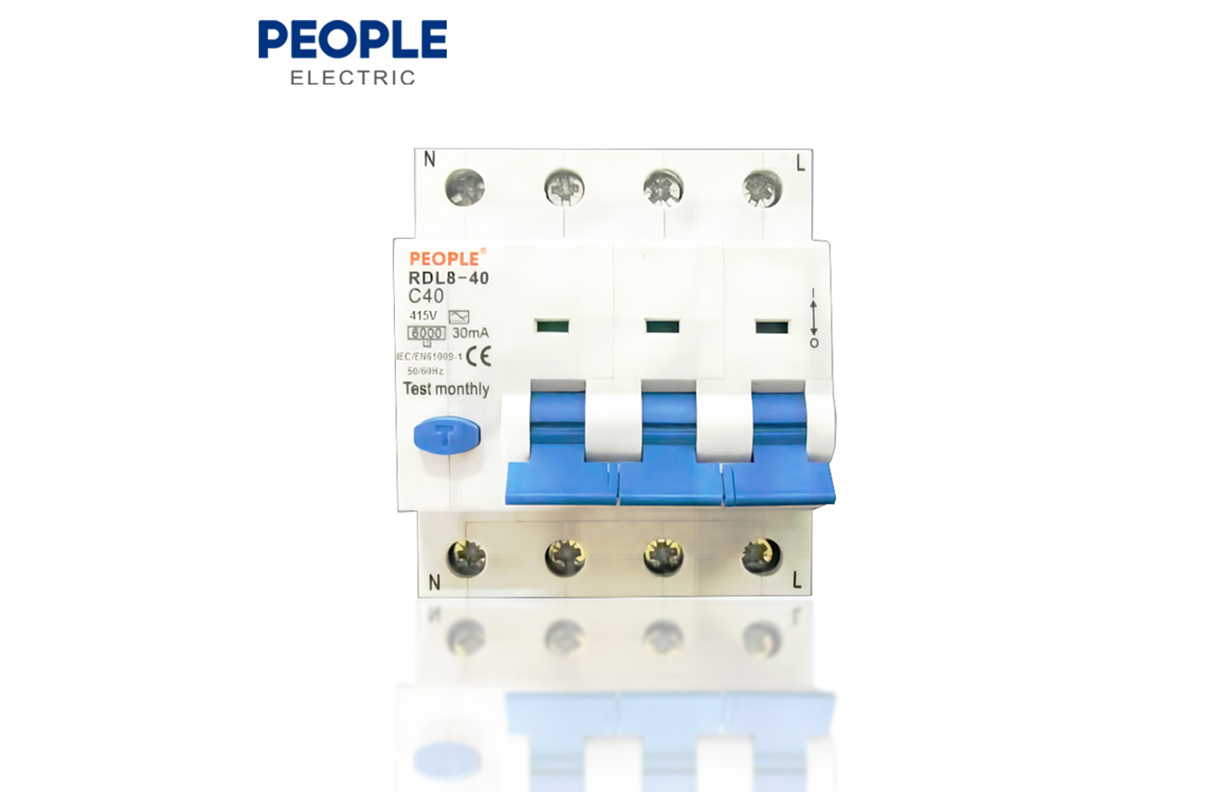

RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection Featured Image

RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection

RDL8-40 residual current circuit breaker with over-current protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/EN61009.


Download as PDF

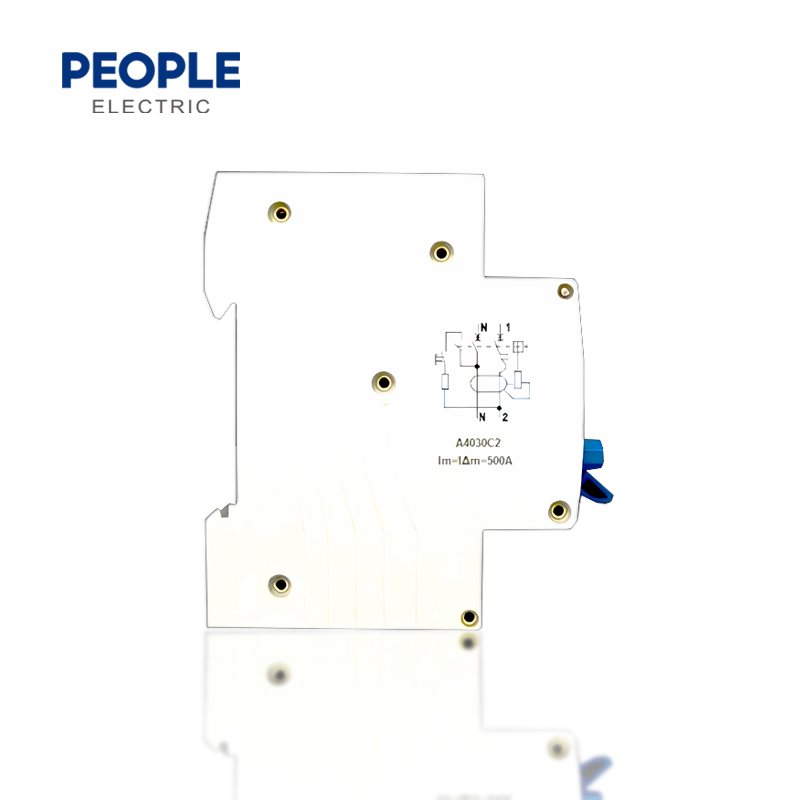

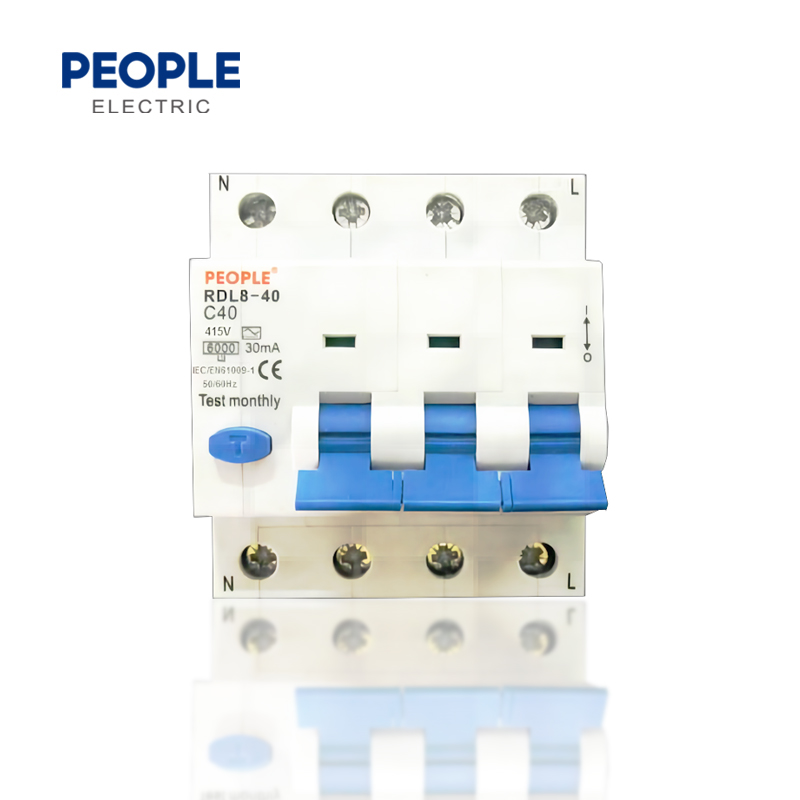

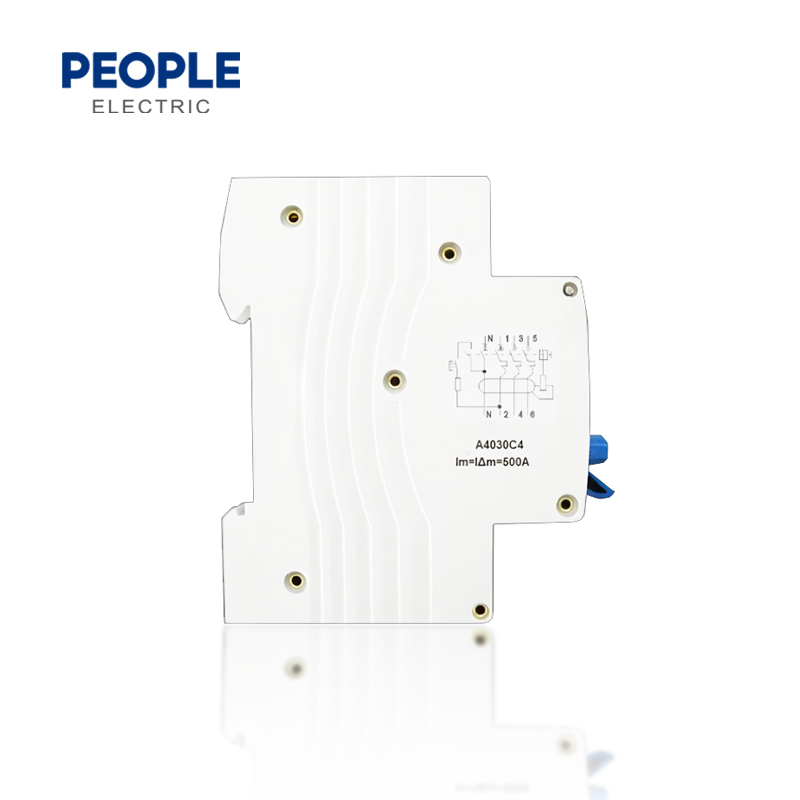

  • RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection
  • RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection
  • RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection
  • RDL8-40 Series (RCBO) Residual Current Operated Cicuit Breaker with Integral Overcurrent Protection

Product Detail

Application

Parameters

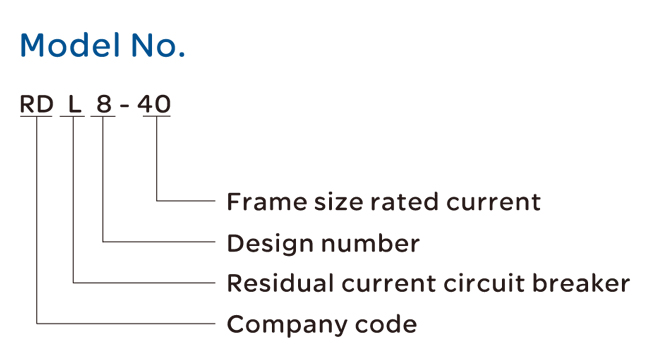

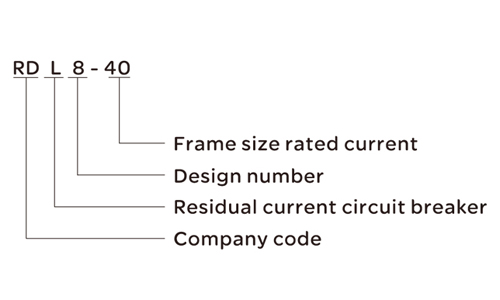

Samples & Structures

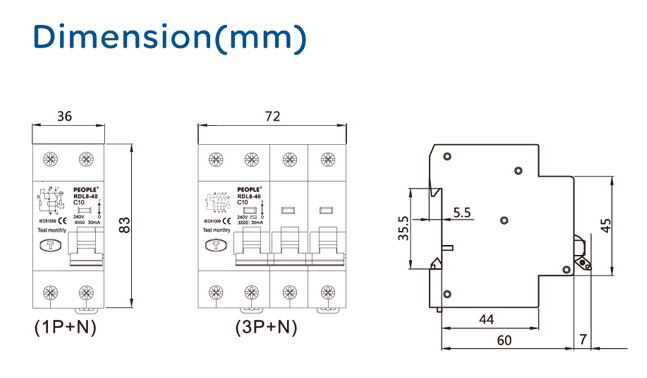

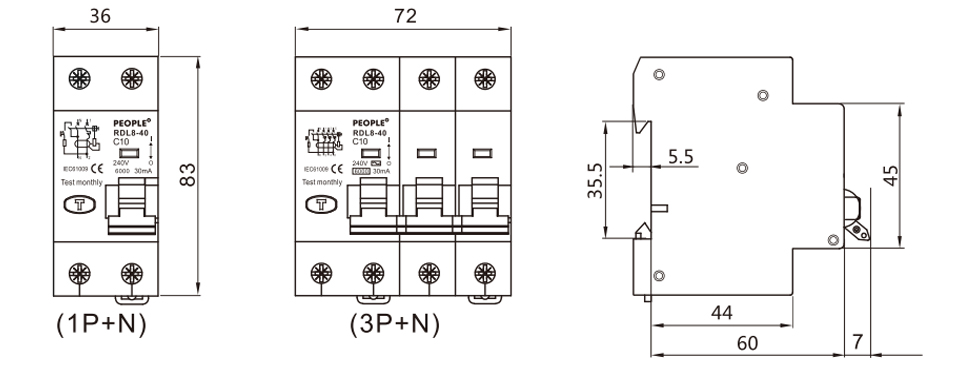

Dimensions

Product Introduction

RDL8-40 residual current circuit breaker with over-current protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/EN61009.

RDL8-40 residual current circuit breaker with over-current protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/ EN61009.

Main features

1. Supports all types of residual current protection: AC, A
2. Multiple breaking capacities for residential and industrial applications
3. Rated current up to 40A with user-defined poles for single-phase or three-phase grids
4. Rated residual current: 30mA, 100mA, 300mA

The role of RCBO

Residual current operated circuit breakers (RCBO) with overcurrent protection are mainly suitable for applications requiring both overcurrent protection (overload and short circuit) and earth fault current protection. It can detect faults and trip in time to ensure the safety of staff and equipment.

1

Technical specifications


Standard   IEC/EN 61009
Type (wave form of the earth leakage sensed)   AC, A
Thermo-magnetic  release  characteristic   B, C
Rated current In A 6, 10, 16, 20, 25, 32, 40
Poles   1P+N, 3P+N
Rated voltage Ue V 230/ 400-240/ 415
Rated sensitivity I△n A 0.03, 0.1, 0.3
Rated short-circuit capacity Icn A 6000
Break time under I△n s ≤0.1
Electrical life   4000 times
Mechanical life   4000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal  connection  type   Cable/ pin type busbar/ U type busbar

1 3 2

2

RDL8-40 residual current circuit breaker with over-current protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/ EN61009.

Main features

1. Supports all types of residual current protection: AC, A
2. Multiple breaking capacities for residential and industrial applications
3. Rated current up to 40A with user-defined poles for single-phase or three-phase grids
4. Rated residual current: 30mA, 100mA, 300mA

The role of RCBO

Residual current operated circuit breakers (RCBO) with overcurrent protection are mainly suitable for applications requiring both overcurrent protection (overload and short circuit) and earth fault current protection. It can detect faults and trip in time to ensure the safety of staff and equipment.

1

Technical specifications


Standard   IEC/EN 61009
Type (wave form of the earth leakage sensed)   AC, A
Thermo-magnetic  release  characteristic   B, C
Rated current In A 6, 10, 16, 20, 25, 32, 40
Poles   1P+N, 3P+N
Rated voltage Ue V 230/ 400-240/ 415
Rated sensitivity I△n A 0.03, 0.1, 0.3
Rated short-circuit capacity Icn A 6000
Break time under I△n s ≤0.1
Electrical life   4000 times
Mechanical life   4000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal  connection  type   Cable/ pin type busbar/ U type busbar

1 3 2

2
