RDJ2 Series Thermal Overload Relay CE

RDJ2 (LR2) series bimetallic type thermal over-load relay is suitable for the circuit of AC50Hz/60Hz, rated operating voltage Ue:660V, rated current 0.10~630 (A), as the use of over-load, break phase and protection of motor and circuit. The structure and main technique performance index of this thermal relay is the same with LR2 series thermal relay, therefore, LR2 series thermal relay can be entirely replaced by RDJ2 series thermal relay.


Download as PDF
  • RDJ2 Series Thermal Overload Relay CE
  • RDJ2 Series Thermal Overload Relay CE
  • RDJ2 Series Thermal Overload Relay CE
  • RDJ2 Series Thermal Overload Relay CE

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

RDJ2 (LR2) series bimetallic type thermal over-load relay is suitable for the circuit of AC50Hz/60Hz, rated operating voltage Ue:660V, rated current 0.10~630 (A), as the use of over-load, break phase and protection of motor and circuit. The structure and main technique performance index of this thermal relay is the same with LR2 series thermal relay, therefore, LR2 series thermal relay can be entirely replaced by RDJ2 series thermal relay.

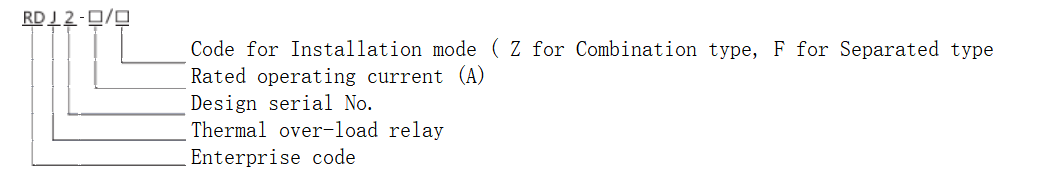

Usage and its scope of application

Thermal relay with the functions and characteristics of break phase protection temperature compensation, setting current adjusting, optional selection of auto-reset and manual reset, action indication signal, insulation separation of NO, NC auxiliary contacts, small installation section, and various installation mode. Moreover, it has the testing and stop push-buttons, and it can be inspected the action flexibility, has the protective cover that prevent the hand get shocked, safe to use, with the locking device to prevent misoperation etc. This product confirms to : GB14048.4, IEC60947-4-1 etc. standards.

42

Normal operating condition and installation condition

Ambient temperature: -5°C~+40°C, and the average value within 24h does not exceed +35°C
Altitude of the installation place does not exceed 2000m;
Atmosphere condition: The relative humidity does not exceed 50% when it is at +40°C, it allowed relatively high humidity at the relatively low temperature, for example, the relative humidity reaches 90% when +20°C, and it should take special measurements when there produced the condensation on the product due to the temperature variation.
It should be at the no explosion danger medium, and the medium without the gas that cannot corrode the metal and damage the insulation as well as the places that without conductive dust.
Grade of pollution: 3
Installation category: III
Installation position: installed at the normal position, the gradient between the installation side and the vertical side does not exceed ±5°, and without obvious vibration and impact.
Protection grade: IP 20.

41

Rated operating current, setting current adjusting scope, suited AC contactor model and recommended fuse model for thermal relay to see table 1

  No.    Model Rated current A Setting current adjusting
scope A		 Suited AC contactor
model		 Suited fuse model Cross section of
conductor mm
1 RDJ2-25 25 0.1~0.16 CJX2-09~32 RDT16-00-2 1
2 0.16~0.25
3 0.25~0.4
4 0.4~0.63
5 0.63~1
6 1~1.6 RDT16-00-4
7 1.25~2
8 1.6~2.5 RDT16-00-6
9 2.5~4 RDT16-00-10
10 4~6 RDT16-00-16
11 5.5~8
12 7~10 RDT16-00-20 1.5
13 RDJ2-25 25 9~13 CJX2-12~32 RDT16-00–25 2.5
14 12~18 RDT16-00-40
15 17~25
17~25		 CJX2-25、CJX2-32 RDT16-00-50 4
16 RDJ2-36 36 23~32 RDT16-00-63 6
17 28~36 CJX2-32 RDT16-00-80 10
18 RDJ2-93 93 23~32 CJX2-40~95 RDT16-00-63 6
19 30~40 RDT16-00-80 10
20 37~50 CJX2-50~95 RDT16-00-100
21 48~65 RDT16-1-125 16
22 55~70 CJX2-63~95 RDT16-1-160 25
23 63~80 CJX2-80、CJX2-95
24 80~93 CJX2-95 RDT16-1-200 35
25 RDJ2-200 200 80~125 CJX2-115、150、185、225 RDT16-1-250 50
26 100~160 RDT16-2-315 70
27 125~200 RDT16-2-400   95
28 RDJ2-630 630 160~250 CJX2-185、225、265、330、400 RTD16-3-500 120
29 200~320 RTD16-3-630 185
30 250~400 RTD16-4-800 240
31 315~500 CJX2-500、630 RTD16-4-1000 2*150
32 400~630 RTD16-4-1000 2*185

Time-current characteristics curve of thermal relay to see map 1

43

A. Three phase balance, unbalance, starting by cool status;

B. Three phase balance, break phase, starting by thermal status

Map 1 Action scope curve

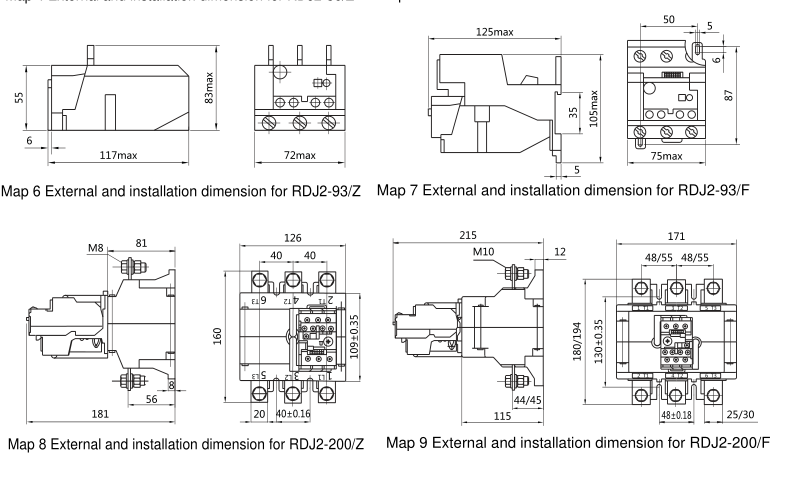

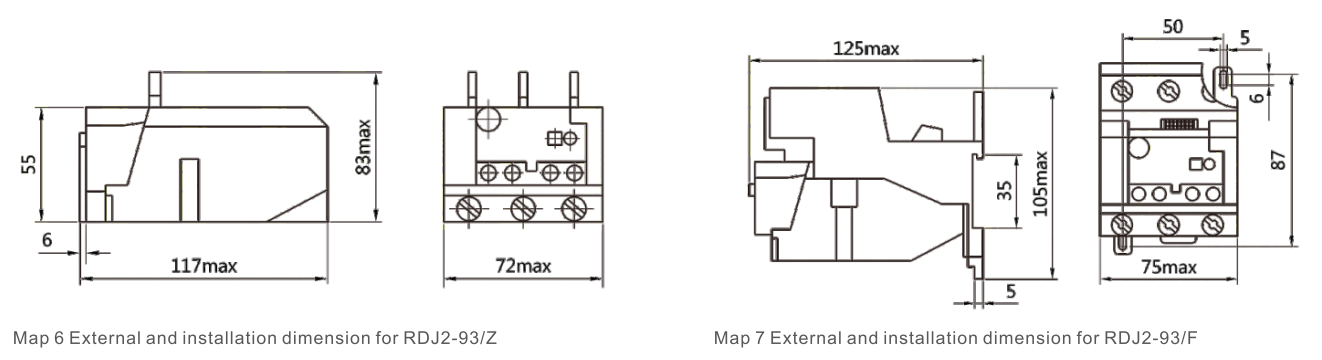

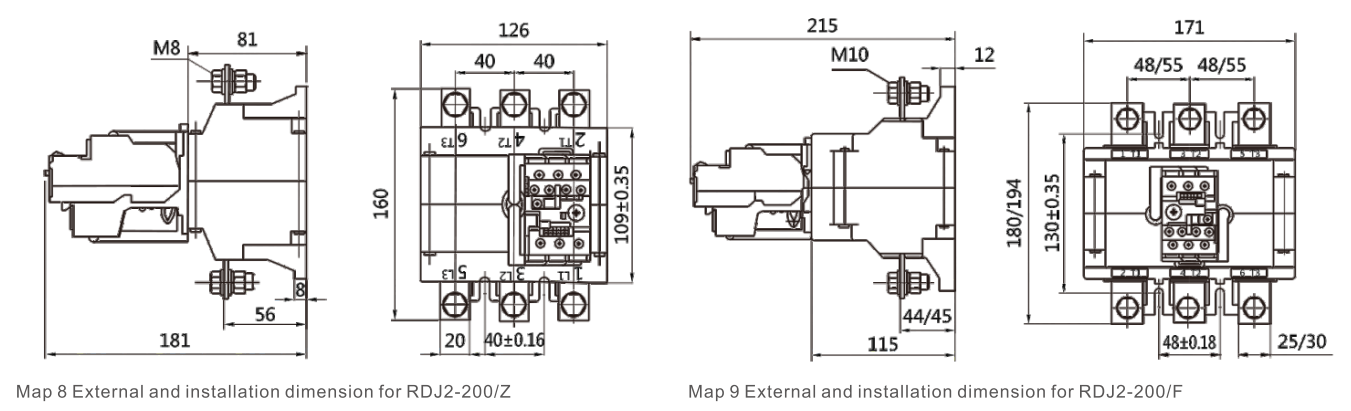

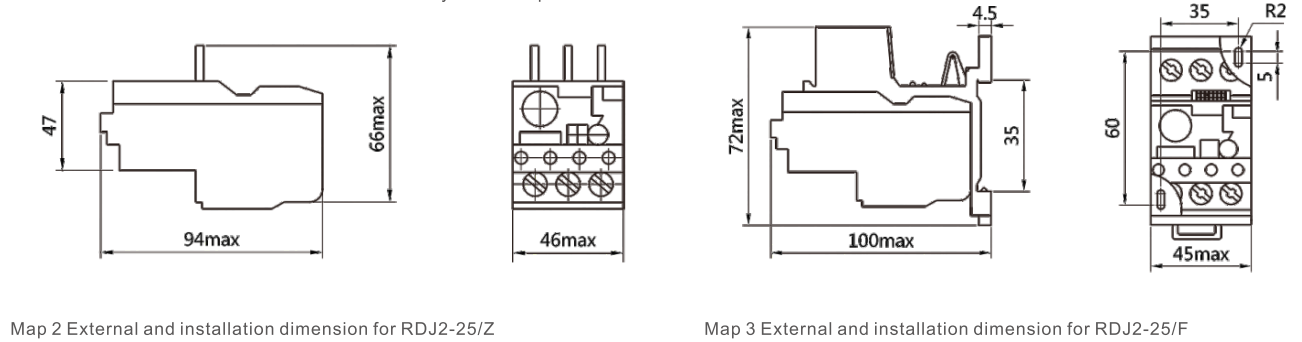

External and installation dimension of thermal relay to see map 2~9

44 45

Usage and its scope of application

Thermal relay with the functions and characteristics of break phase protection temperature compensation, setting current adjusting, optional selection of auto-reset and manual reset, action indication signal, insulation separation of NO, NC auxiliary contacts, small installation section, and various installation mode. Moreover, it has the testing and stop push-buttons, and it can be inspected the action flexibility, has the protective cover that prevent the hand get shocked, safe to use, with the locking device to prevent misoperation etc. This product confirms to : GB14048.4, IEC60947-4-1 etc. standards.

42

Normal operating condition and installation condition

Ambient temperature: -5°C~+40°C, and the average value within 24h does not exceed +35°C
Altitude of the installation place does not exceed 2000m;
Atmosphere condition: The relative humidity does not exceed 50% when it is at +40°C, it allowed relatively high humidity at the relatively low temperature, for example, the relative humidity reaches 90% when +20°C, and it should take special measurements when there produced the condensation on the product due to the temperature variation.
It should be at the no explosion danger medium, and the medium without the gas that cannot corrode the metal and damage the insulation as well as the places that without conductive dust.
Grade of pollution: 3
Installation category: III
Installation position: installed at the normal position, the gradient between the installation side and the vertical side does not exceed ±5°, and without obvious vibration and impact.
Protection grade: IP 20.

41

Rated operating current, setting current adjusting scope, suited AC contactor model and recommended fuse model for thermal relay to see table 1

  No.    Model Rated current A Setting current adjusting
scope A		 Suited AC contactor
model		 Suited fuse model Cross section of
conductor mm
1 RDJ2-25 25 0.1~0.16 CJX2-09~32 RDT16-00-2 1
2 0.16~0.25
3 0.25~0.4
4 0.4~0.63
5 0.63~1
6 1~1.6 RDT16-00-4
7 1.25~2
8 1.6~2.5 RDT16-00-6
9 2.5~4 RDT16-00-10
10 4~6 RDT16-00-16
11 5.5~8
12 7~10 RDT16-00-20 1.5
13 RDJ2-25 25 9~13 CJX2-12~32 RDT16-00–25 2.5
14 12~18 RDT16-00-40
15 17~25
17~25		 CJX2-25、CJX2-32 RDT16-00-50 4
16 RDJ2-36 36 23~32 RDT16-00-63 6
17 28~36 CJX2-32 RDT16-00-80 10
18 RDJ2-93 93 23~32 CJX2-40~95 RDT16-00-63 6
19 30~40 RDT16-00-80 10
20 37~50 CJX2-50~95 RDT16-00-100
21 48~65 RDT16-1-125 16
22 55~70 CJX2-63~95 RDT16-1-160 25
23 63~80 CJX2-80、CJX2-95
24 80~93 CJX2-95 RDT16-1-200 35
25 RDJ2-200 200 80~125 CJX2-115、150、185、225 RDT16-1-250 50
26 100~160 RDT16-2-315 70
27 125~200 RDT16-2-400   95
28 RDJ2-630 630 160~250 CJX2-185、225、265、330、400 RTD16-3-500 120
29 200~320 RTD16-3-630 185
30 250~400 RTD16-4-800 240
31 315~500 CJX2-500、630 RTD16-4-1000 2*150
32 400~630 RTD16-4-1000 2*185

Time-current characteristics curve of thermal relay to see map 1

43

A. Three phase balance, unbalance, starting by cool status;

B. Three phase balance, break phase, starting by thermal status

Map 1 Action scope curve

External and installation dimension of thermal relay to see map 2~9

44 45
