RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE Featured Image

RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE

RDC5 series AC Contactor is mainly used in the circuit of AC 50Hz or 60Hzrated voltage up to 690V rated current up to 95Afor the use of remotely connecting and breaking the circuit it also can be directly combined with thermal relay into electromagnetic starter to protect the circuit that may have overloaded operations. Contactor can also be equipped with accessories such as the block type auxiliary contacts group. air delay contact. mechanical interlock mechanism.,etc. to combine into delay contactor, directional contactor and star-delta starter.

It conforms to the standard IEC/EN60947-4-1.


Download as PDF
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE
  • RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type CE

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

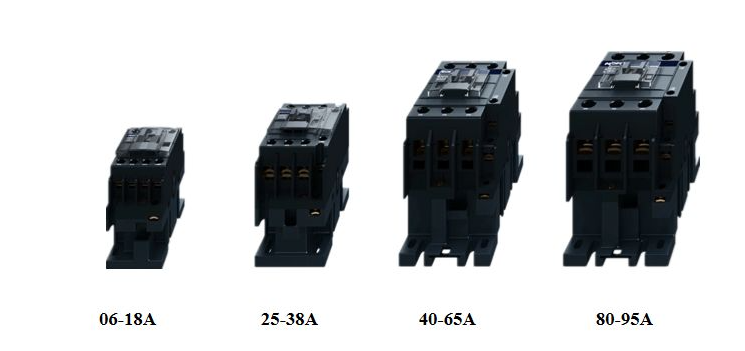

RDC5 series AC contactor has 4 frame current level, the optional current is from 6A to 95A, and the series increase two new currents (06A and 38A compared with CJX2 so as to meet different power distribution requirements.

The product has passed the national CE&CB&CCC certification, takes the lead of similar products in the industry and guarantees the safe and stable operation of power supply system.

Features

1.High quality, withstand analysis

2.Ultra-strong voltage pull-in range

3.Excellent performance and ultra-long life

4.Humanized design and convenient installation

5.Perfect dust-proof effect, wider application scope

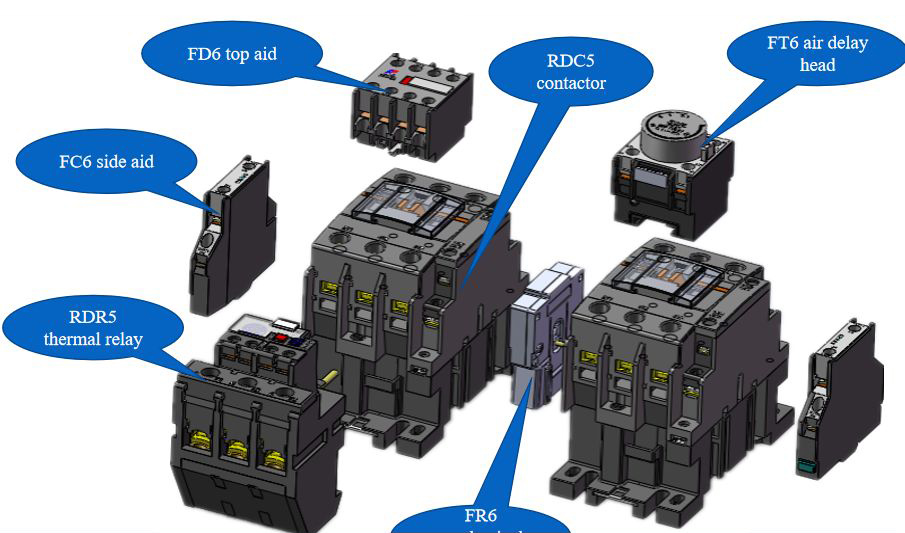

6.Supporting accessories and installation

RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (9) RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (10)

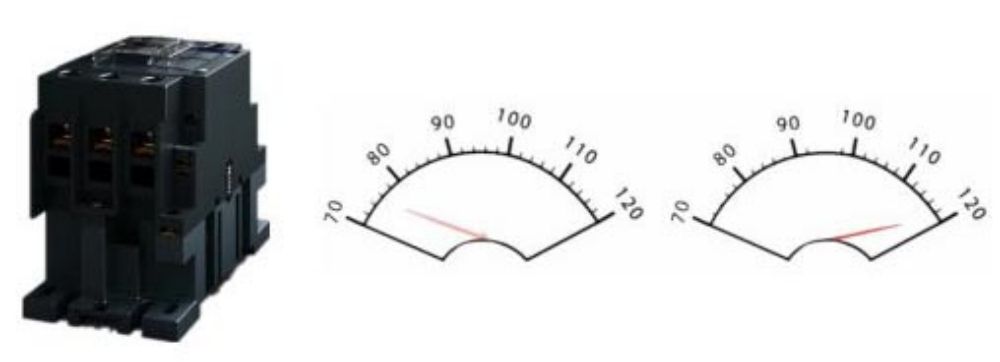

70%-120%Us voltage pull-in range

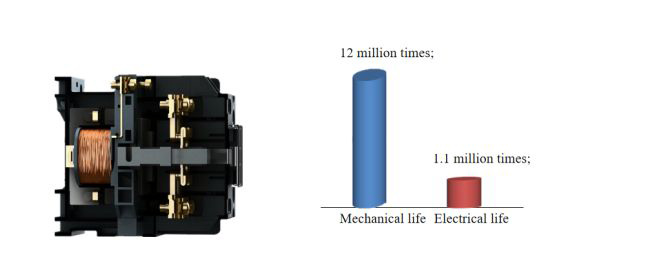

RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (1)

Surpass similar products 20%

ff4275c6835c95bdd731af4d8aafc59b1f7c3296.png@w100_h100 RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (2)

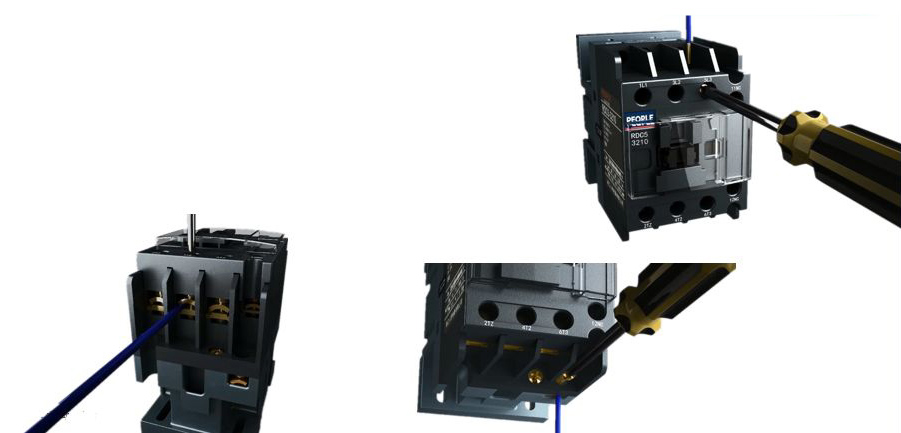

RDC5 has upper and lower wiring terminals so that the user can connect wires more quickly and safely.

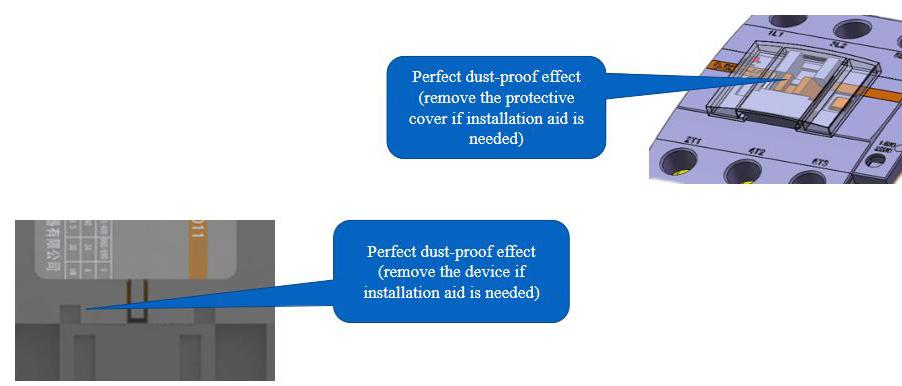

Perfect dust-proof effect, applicable to various operating environment.

RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (3)

RDC5 series Rated Current Magnetic AC Contactor -Electromagnetic type (4)

Product Model

RDC5-06

RDC5-09

RDC5-12

RDC5-18

RDC5-25

RDC5-32

RDC5-38

RDC5-40

RDC5-50

RDC5-65

RDC5-80

RDC5-95

Number of pole

 3 poles

Rated insulation Voltage(Ui)V

 690

Rated operating voltage(Ue)V

380/400, 660/690

Conventional heating current(Ith)A

16

20

20

25

32

40

40

50

60

80

110



110



Rated current (le)A

AC-3

380/400V

6

9

12

18

25

32

38

40

50

65

80

95

660/690V

3.8

6.6

8.9

12

18

22

22

34

39

42

49

49

AC-4

380/400V

2.6

3.5

5

7.7

8.5

12

14

18.5

24

28

37

44

660/690V

1

1.5

2

3.8

4.4

7.5

8.9

9

12

14

17.3

21.3

Rated Power (PE)KW

AC-3

380/400V

2.2

4

5.5

7.5

11

15

18.5

18.5

22

30

37

45

660/690V

3

5.5

7.5

10

15

18.8

18.5

30

33

37

45

45

AC-4

380/400V

1.1

1.5

2.2

3.3

4

5.4

5.5

7.5

11

15

18.5

22

660/690V

0.75

1.1

1.5

3

3.7

5.5

6

7.5

10

11

15

18.5

Mechanical life(10000 times/h)

1200

1000

900

650

Electrical life

AC-3(10000times/h)

110

90

65

AC-4(10000times/h)

22

22

17

11

Operation frequency

AC-3(times/h)

1200

600

AC-4(times/h)

300

Coil

Rared control voltage Us(V)

AC 24,36,48,110,127,220/230,240,380/400,415,440

Pull-in voltage 50/60HZ V

(0.85-1.1)Us

Release voltage 50/60Hz V

(0.2-0.7)Us

Coil power consum-ption

Pull-in VA

50

60

70

200

200

Hold VA

6-9

6-9.5

6-9.5

15-20

15-20

Power W

1-3

1-3

1-3

6-10

6-10

Pieces mm²

1

2

1

2

1

2

1

2

1

2

1

2

1

2

1

2

1

2

1

2

1

2

1

2

Terminals

Flexible wire with terminal mm²

4

2.5

4

2.5

4

2.5

4

2.5

6

4

6

4

6

4

25

10

25

10

25

10

50

16

50

16

Flexible wire without terminal mm²

4

4

4

4

4

4

4

4

6

6

6

6

6

6

25

16

25

16

25

16

50

25

50

25

Hard wire mm²

4

4

4

4

4

4

6

6

6

6

10

6

10

6

25

10

25

10

25

10

50

25

50

25

Tightening torque

(N*m)

1.2

1.8

5

9

Suited fuse type

Model

RDT16(NT)-00

Rated current(A)

16

20

20

32

40

50

63

63

80

80

100



125



Suited thermal relay

RDR5-25

RDR5-25

RDR5-25

RDR5-25

RDR5-25

RDR5-25   RDR5-36

RDR5-25   RDR5-36

RDR5-93

RDR5-93

RDR5-93

RDR5-93

RDR5-93

Auxiliary contacts

Can be added with F4,LA8 auxiliary contacts, LA-D/LA3-D type air delay contacts

24

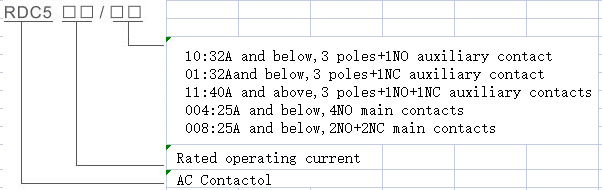

Model No.

6





10:32A and below,3 poles+1NO auxiliary contact
01:32Aand below,3 poles+1NC auxiliary contact
11:40A and above,3 poles+1NO+1NC auxiliary contacts
004:25A and below,4NO main contacts
008:25A and below,2NO+2NC main contacts

 Rated operating current

 AC Contactol

26

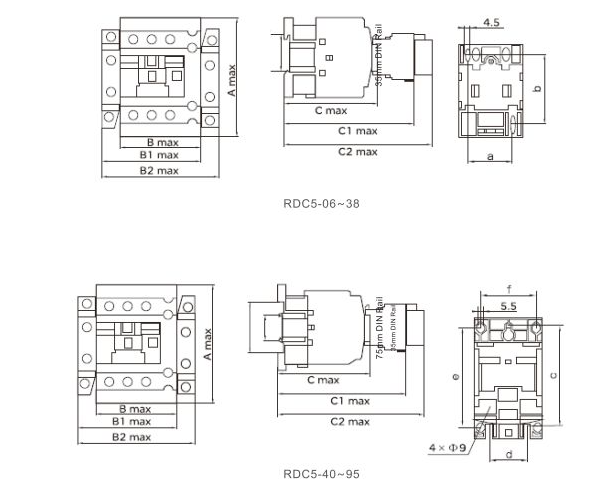

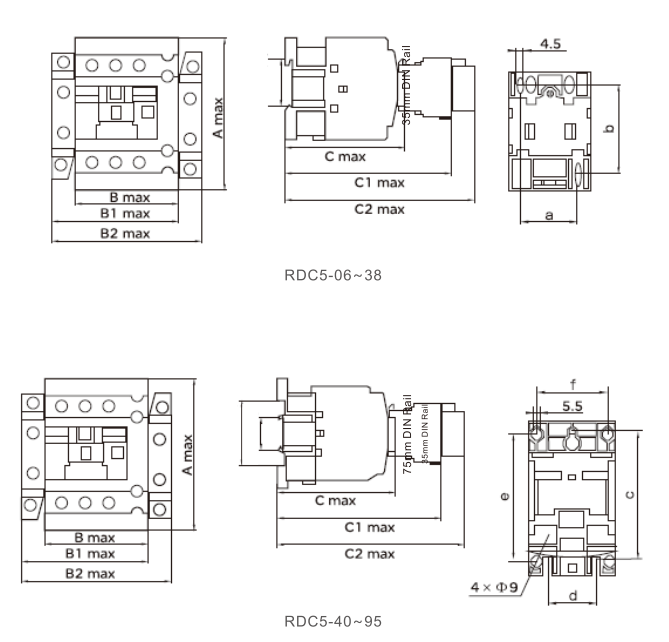

Model  Amax  Bmax  B1max   B2max   Cmax   C1max   C2max
RDC5-06,09,12,18  74.5  45.5  58   71   82.5   114.5   139.5
RDC5-25,32,38  83  56.5  69   82   97   129   154
RDC5-40,50,65  127.5  74.5  88   101   117   148.5   173.5
RDC5-80.95  127.5  85.5  99   112   125.5   157   182
Note: B1max=contactor+LA8;                    B2max=contactor+2×LA8;                  C1max=contactor+F4;               C2max=contactor+LA2(3)D
Model a b c d e f
RDC5-06,09,12,18 35 50/60 - - - -
RDC5-25,32,38 40 50/60 - - - -
RDC5-40,50,65 - -   105 40   100/110 59
RDC5-80.95 - -   105 40   100/110 67

Normal operating condition and installation condition

3.1Ambienttemperature:+5℃~+40℃averaae temperature within 24h does notexceed+35℃

3.2Altitude:doesnotexceed2000m

3.3 Atmospheric condition:when the highest temperature is +40℃the relativelv humidity does not exceed 50%;it can allow relatively high humidity when it is at relatively low temperature, for

instance. it reaches 90% whenit is at+20it should take measurement when there have

condensation occurred due to thetemperature variation.

3.4 Pollution grade:3

3.5Installation categorv:l

3.6 Installation position: the aradient of the mountina surface to the vertical surface does no exceed+5°

3.7lmpact andvibration: product should be installed and used at the places without obvious shake impact and vibration.
