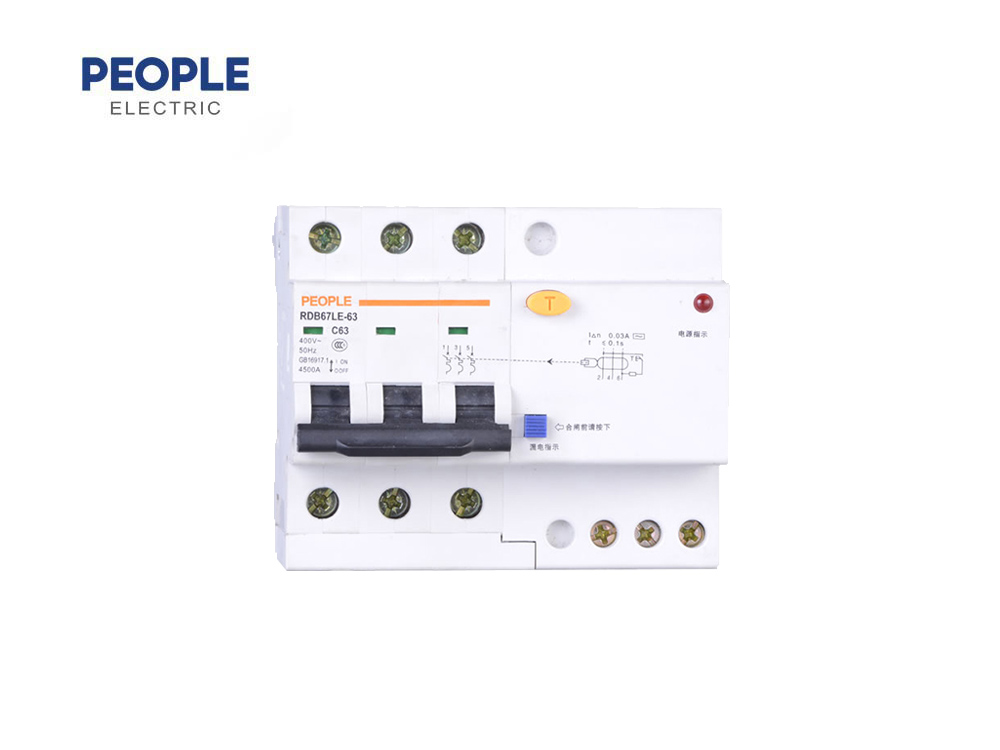

RDB67LE-63 series residual current circuit breaker

RDB67LE-63 residual current operated circuit breaker can be applied to the circuit ofAC50/60Hz, rated voltage 230/40oV, rated current up to 63A.

Send email to us Download as PDF

Product Detail

Application

Parameters

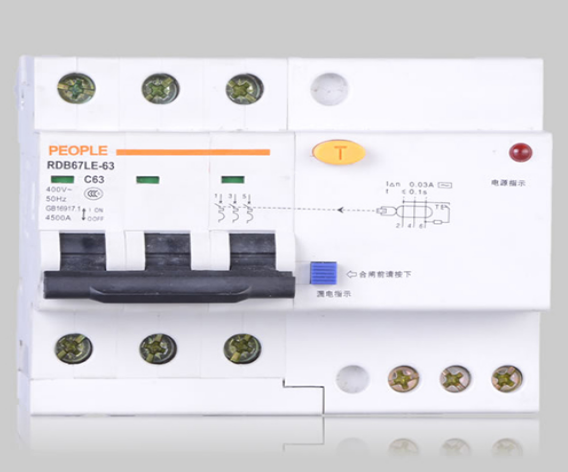

Samples & Structures

Dimensions

Product Introduction

RDB67LE-63 residual current operated circuit breaker can be applied to the circuit ofAC50/60Hz, rated voltage 230/40oV, rated current up to 63A.Line protection against earthleakage,overload and short-circuitsAC or A tripping class.Electronic type RCD.Rated short-circuit breaking capacity Icn=6kAWith indication window & power lamp.Sensitivity range: 30mA,100mA, 300mAComply with IEC61009-1/ GB16917-1

Features

1.Process guaranteed performance

2.Small volume, large capacity

3.Super-strong wiring capacity

4.Good insulation between phases

5.Super-strong conductivity

6.Low temperature rise and power consumption

RDB67LE-63 series residual current circuit

RDB67LE-63 residual current operated circuit breaker can be applied to the circuit ofAC50/60Hzrated voltage 230/400V, rated current up to 63A
Line protection against earthleakage, overload and short-circuits
AC or A tripping class
Electronic type RCD
Rated short-circuit breaking capacity icn=6kA
With indication window & power lamp
Sensitivity range:30mA100mA，300mA
Comply withIEC61009-1/GB16917-1

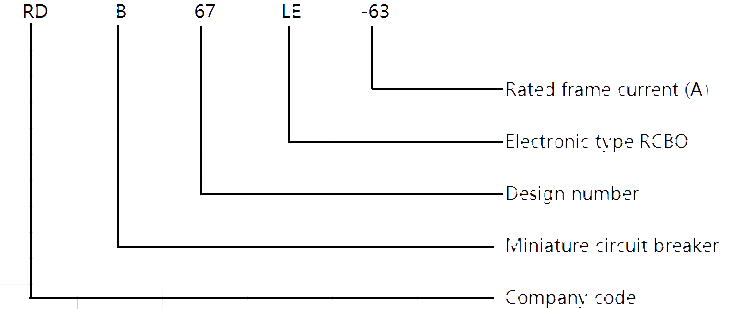

Model No.

Electrical Features	Characteristic	Unit	Parameters
	Thermo-magnetic release characteristic	/	C,D
	Rated current In	A	6,10,16,20, 25,32, 40, 50, 63
	Rated voltage Ue	V	230/400
	Rated sensitivity I△n	A	0.03,0.1,0.3
	Rated residual making and breaking capacity I△m	A	500
	Rated short-circuit capacity lcn	A	6000
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage Uimp	V	4000
	Residual current making & breaking capacity	A	2000
	Insulation voltage Ui	/	500
	Pollution degree	/	2
Standard			IEC/EN 60947-3
	Characteristic	Unit	Parameters
Mechanical features	Electrical life		6,000
	Mechanical life		20,000
	Contact position indicator		IP20
	Protection degre	℃	-5~+40℃
	Ambient temperature(with daily average<35℃)	℃	-25~+70℃
	Storage temperature		Cable/U-type busbar/Pin-type busbar
Installation	Terminal connection type	mm2	25
	Terminal size top for cable		25
	Terminal size top for busbar	mm2	2
	Tightening torque	N*m	18
	Mounting	In-Ibs	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection		From top

Overall and Mounting Dimensions (mm)

Characteristic	A	C	1P+N	2P	3P	3P+N	4P
RDB67LE-63	36	54	18+36	36+36	54+50	54+54	72+54

Model No.

Electrical Features	Characteristic	Unit	Parameters
	Thermo-magnetic release characteristic	/	C,D
	Rated current In	A	6,10,16,20, 25,32, 40, 50, 63
	Rated voltage Ue	V	230/400
	Rated sensitivity I△n	A	0.03,0.1,0.3
	Rated residual making and breaking capacity I△m	A	500
	Rated short-circuit capacity lcn	A	6000
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage Uimp	V	4000
	Residual current making & breaking capacity	A	2000
	Insulation voltage Ui	/	500
	Pollution degree	/	2
Standard			IEC/EN 60947-3
	Characteristic	Unit	Parameters
Mechanical features	Electrical life		6,000
	Mechanical life		20,000
	Contact position indicator		IP20
	Protection degre	℃	-5~+40℃
	Ambient temperature(with daily average<35℃)	℃	-25~+70℃
	Storage temperature		Cable/U-type busbar/Pin-type busbar
Installation	Terminal connection type	mm2	25
	Terminal size top for cable		25
	Terminal size top for busbar	mm2	2
	Tightening torque	N*m	18
	Mounting	In-Ibs	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection		From top
