RDA1 series Push button CE

In the electric automatic control circuit, it is used to manually send control signals to control contactors, relays, electromagnetic starters, etc. Generally, the main circuit is not directly operated, but can also be used in the interconnection circuit. In actual use, in order to prevent misoperation, buttons are usually marked or painted with different colors, including red, yellow, blue, white, black, green, etc. Generally, red indicates operation under “stop” or “dangerous” conditions; Green means “ON” or “ON”. The emergency stop button must be red mushroom head button.

Main Technical data

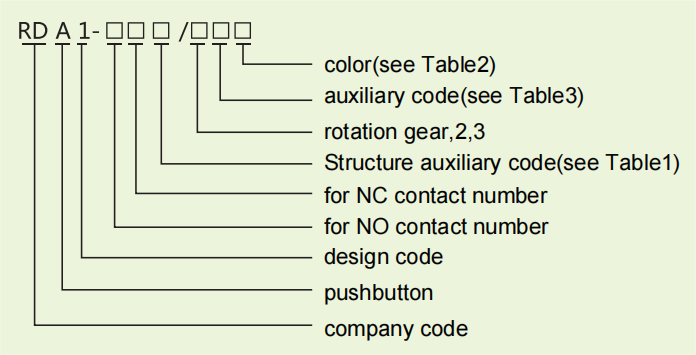

Model No.

Normal working condition and installation condition

3.1 Altitude: lower than 2000m.
3.2 Ambient temperature: no higher than +40°C,and no lower than -5°C, and day average temperature shall no more than +35°C.
3.3 Humidity: Relative humidity shall not excced 50% at the Max temperature 40°C, and higher humidity could be accepted at lower temperature. The condensation must be taken care which is caused by temperature change.
3.4 Pollution class: III type
3.5 Installation level: II type
3.6 Install location should have no corrosion gas and onductive dust.
3.7 Pushbutton should be insall at round hole of control plate. The round hole can have square keyway which has upward position. The control plate thickness is 1 to 6 mm. If necessary, gasket could be used.

Appearance and mounting dimensions

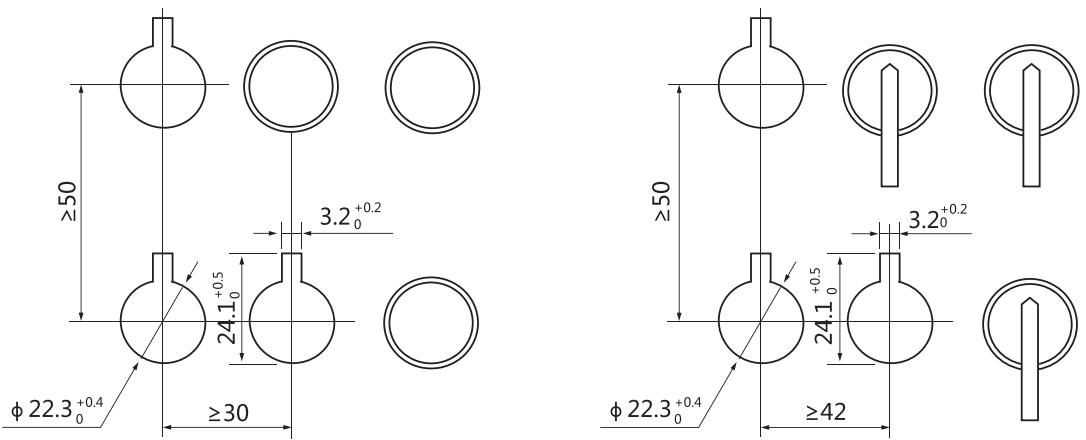

gap between mounting hole dimension and many pushbutton install, see diagra.

Notice

Please note the model no., specification and quantity in the order.
