SVC (TND, TNS) series high-precision automatic AC voltage regulator is composed of contact autotransformer, servo motor and automatic control circuit. When the grid voltage is unstable or the load changes, the automatic control circuit drives the servo motor according to the change of output voltage and adjusts the position of the carbon brush on the contact autotransformer to adjust the output voltage to the rated value, the output voltage is stable, reliable, high efficiency and can work continuously for a long time. Especially in the grid voltage fluctuations or grid voltage seasonal changes in the region using this machine can get satisfactory results. Suitable for instruments, meters, household appliances and other types of load normal work products in line with: JB/T8749.7 standard.
| Design Guide | |||||||||

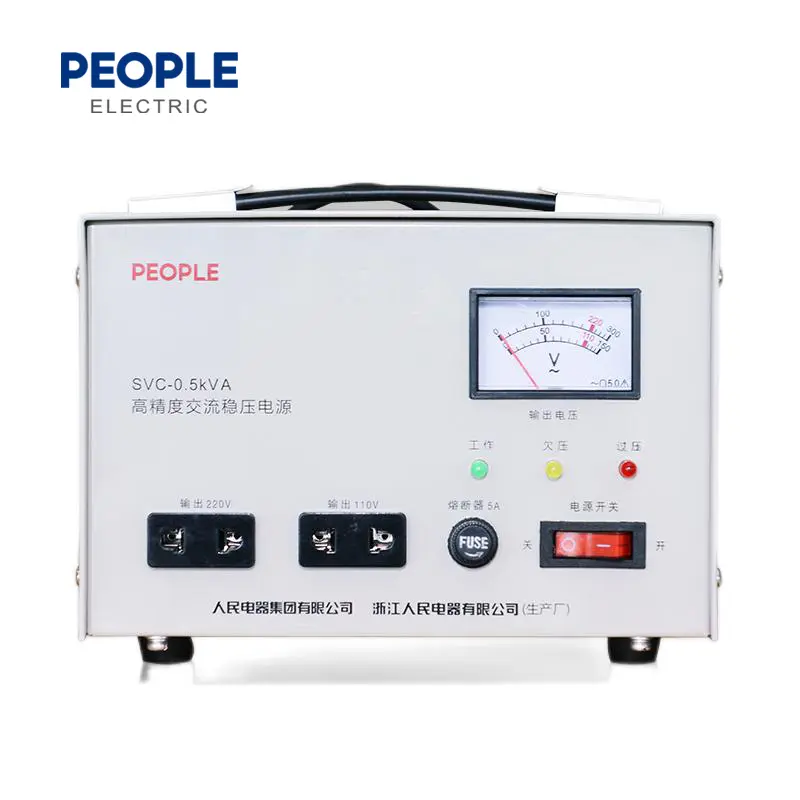

| SVC (TND) | 0.5 | kVA | |||||||
| Model No. | Rated Capacity | Capacity Unit | |||||||
| SVC (TND): Single Phase AC Voltage StabilizerSVC (TNS): Three Phase AC Voltage Stabilizer |
0.5、1 … 100kVA |
kVA | |||||||
| Features and scope of application | |||||||||
| The regulated power supply has the characteristics of beautiful appearance, low self-loss, and complete protection functions. It can be widely used in production, scientific research, medical and health care, air conditioners, refrigerators and other household appliances. It is an AC regulated voltage supply with ideal performance and price. | |||||||||
| Normal working conditions and installation conditions | |||||||||
| Ambient humidity: -5°C~+40°C; Relative humidity: not more than 90% (at a temperature of 25°C); Altitude: ≤2000m; Working environment: In the room without chemical deposits, dirt, harmful corrosive media and flammable and explosive gases, it can work continuously. |
To learn more please click:https://www.people-electric.com/svc-tnd-tns-series-ac-voltage-stabilizer-product/
