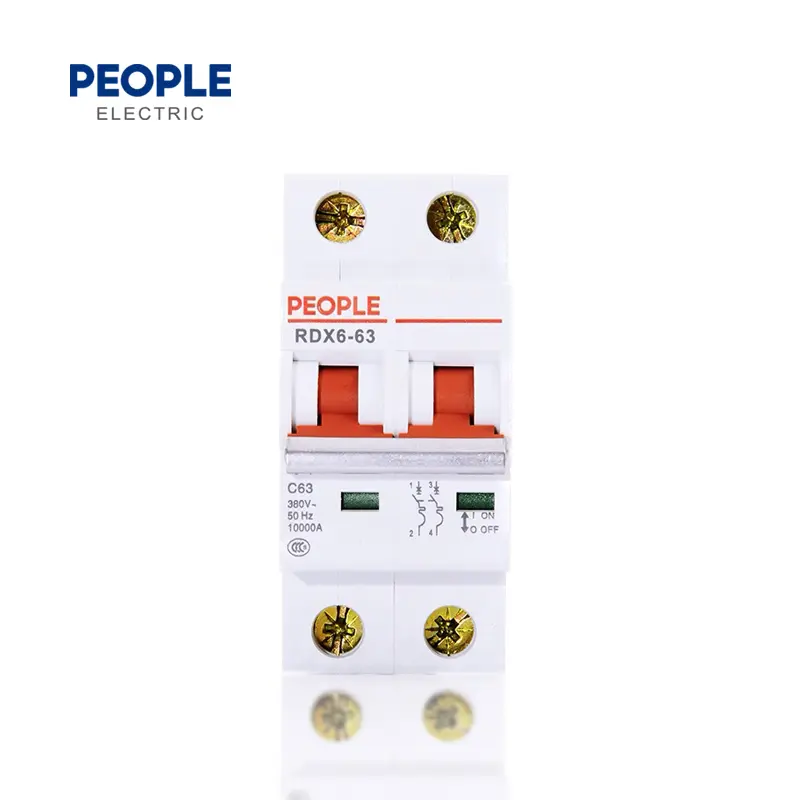

RDX6-63 high breaking small circuit breaker, mainly used for AC 50Hz (or 60Hz), rated working voltage to 400V, rated current to 63A, rated short-circuit breaking force not exceeding 10000A rated current to 63A, rated short-circuit breaking force of not more than 10000A in the protection of power distribution lines, as the line infrequent connection, breaking and conversion, with overload, short-circuit protection function. At the same time, it has powerful auxiliary function modules, such as auxiliary contact, with alarm indication Contact, shunt striker, undervoltage striker, remote striker control and other modules.
The product conforms to GB/T 10963.1, IEC60898-1 standard.
Normal operating conditions and installation conditions
Temperature: The upper limit of surrounding air temperature should not exceed +40℃, the lower limit should not be lower than -5℃, and the 24h average temperature should not exceed +35℃.
Altitude: The altitude of the installation site should not exceed 2000m.
Humidity: The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40℃. Higher relative humidity can be allowed at lower temperatures. Special measures should be taken for condensation that occasionally occurs on the surface of the product due to temperature changes.
Pollution level: Grade 2.
Installation conditions: Installed in a place without significant shock and vibration, and in a medium without explosion hazard.
Installation method: Installed with TH35-7.5 mounting rail.
Installation category: Class II, III.
