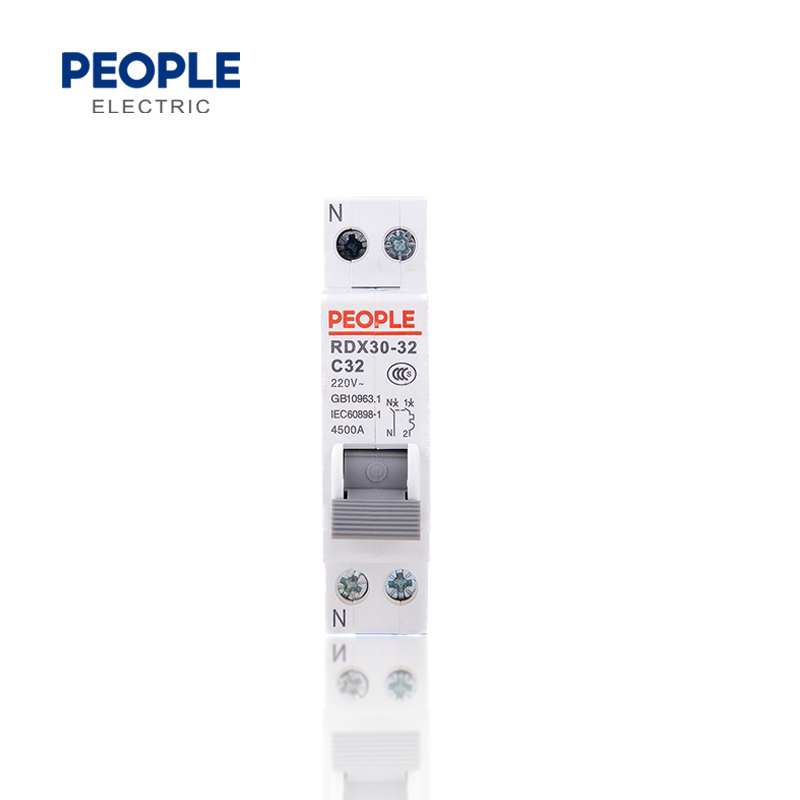

RDX30-32 miniature circuit breaker (DPN) is applicable to a circuit of AC 50/ 60Hz, 230V (single phase), for overload and short circuit protection.Rated current up to 32A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.

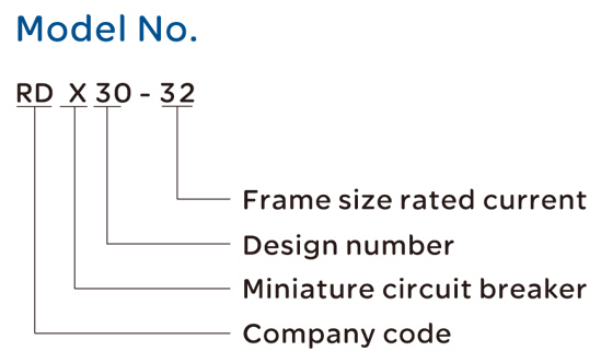

Model No.
Technical specifications：
| Pole | 1P+N | ||||||
| Rated voltage Ue (V) | 230/ 240 | ||||||
| Insulation voltage Ui (V) | 500 | ||||||
| Rated frequency (Hz) | 50/ 60 | ||||||
| Rated current In (A) | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32 | ||||||
| Type of instantaneous release | B, C, D | ||||||
| Protective grade | IP 20 | ||||||
| Breaking capacity (A) | 4500 | ||||||
| Mechanical life | 10000 times | ||||||
| Electrical life | 4000 times | ||||||
| Ambient temperature (℃) | -5~+40 (with daily average≤35) | ||||||
| Terminal connection type | Cable/ Pin type busbar |

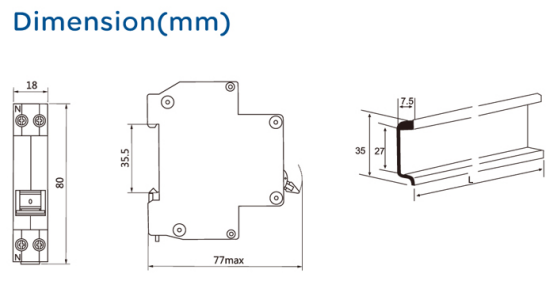

Dimension (mm)
