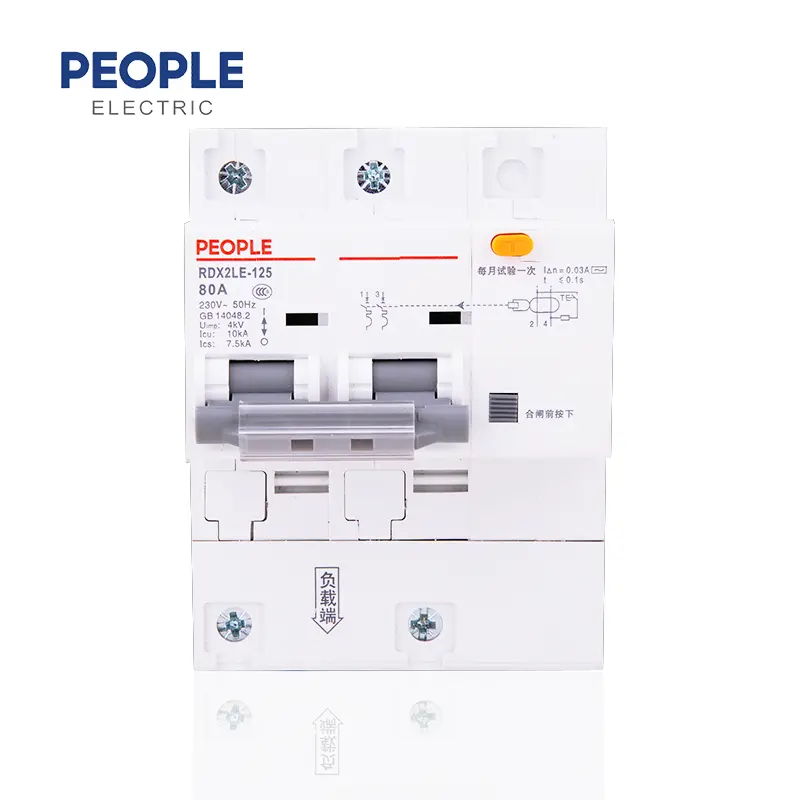

RDX2LE-125 Series(RCBO) Residual Current Circuit Breaker with CE

The RDX2LE-125 RCBO s designed to ensure the protection of low-voltage electrical applications up to 125A,rated voltage 230/400V，AC 50/60Hz

Line protection against earth leakage, overload and short-circuits Electronic type RCD

Rated short-circuit breaking capacity Icn=10kA

Rated current: 40-125A

Sensitivity range: 30mA, 100mA, 300mAComply with IEC61009-1/GB16917.1



Features :
Residual current (leakage) protection, residual current gear can be adjusted online, and delayed and non-delayed types can be selected at will;
●with primary reclosing function;
● Automatic tracking, automatic adjustment of the gear according to the residual current of the line, ensuring the commissioning rate and reliability of the product;
●Long-delay, short-delay and instantaneous three-stage protection, current can be set, with electronic decoupling, independent of power supply voltage;
●High breaking capacity to ensure the reliability of line short circuit protection;
● High-current instantaneous decoupling function, when the circuit breaker is closed and encounters a short-circuit high current (≥20Inm), the circuit breaker is directly decoupled by
electromagnetic decoupler mechanism is directly decoupled;
● Over-voltage protection, under-voltage protection, phase failure protection;
● Leakage non-disconnecting alarm output function;

Electrical features	Certificate		CE
	Thermo-magnetic release characteristic		C,D
	Rated current In	A	40,50,63,80,100,125
	Rated voltage Ue	V	230/400
	Rated sensitivity I△n	A	0.03,0.1,0.3
	Rated residual making and breaking capacty I△m	A	1,500
	Rated short-circuit capacity lcn	A	6000(4~40A);4500(50,63A)
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage Uimp	V	4,000
	Dielectric TEST voltage at ind.Freq.for 1min	kV	2
	Insulation voltage Ui		600
	Pollution degree		2
