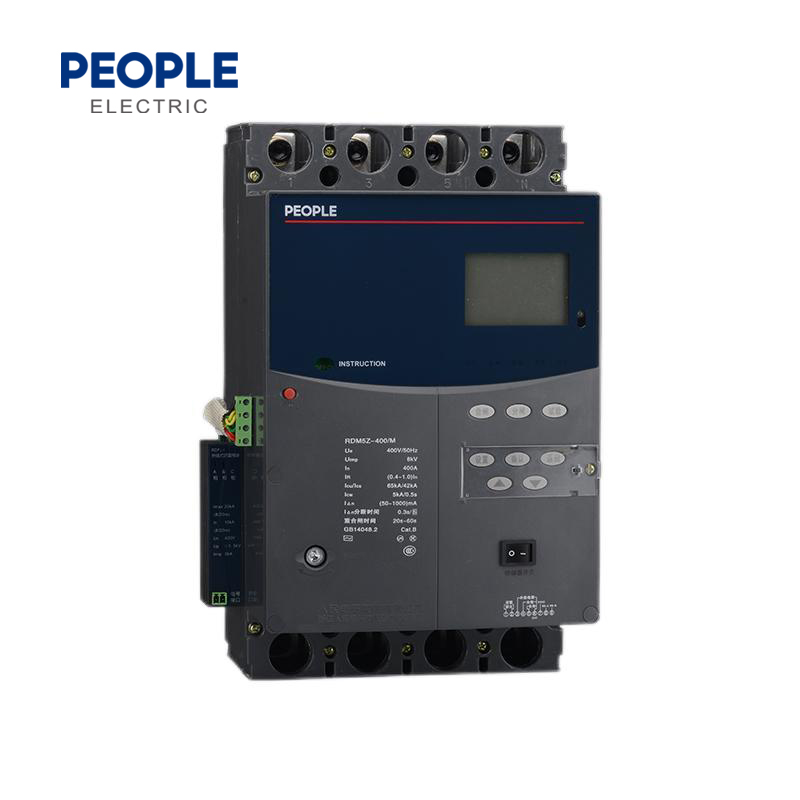

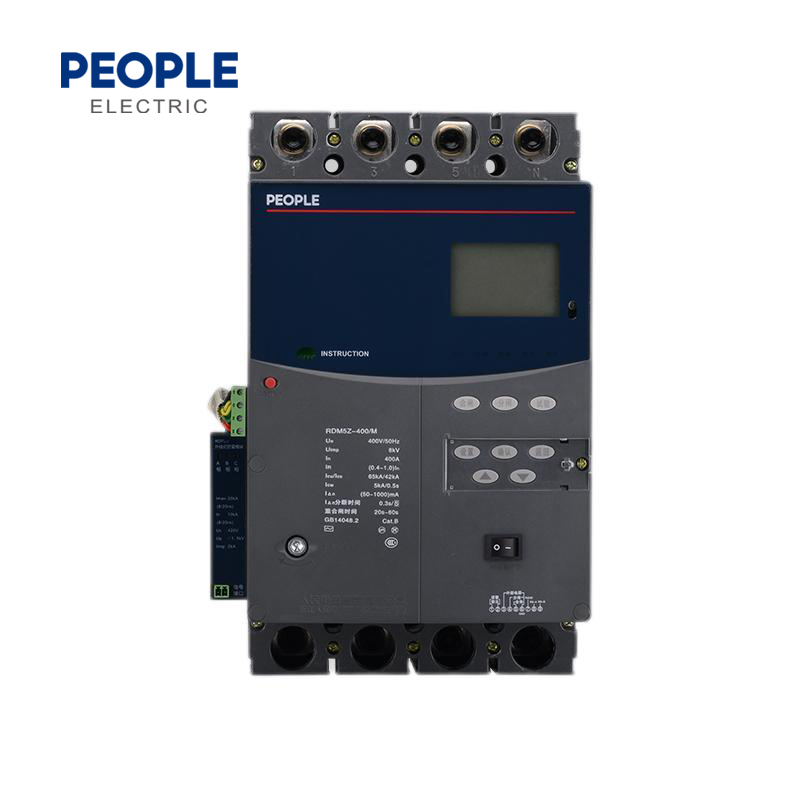

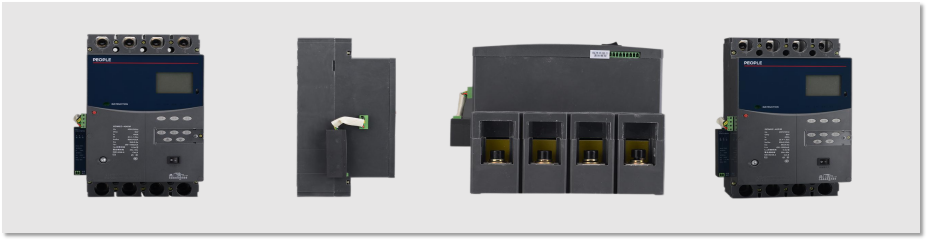

RDM5Z series Auto-Reclose circuit breaker(MCCB) is used to distribute electric energy, protect circuit. And it also works for protecting under-voltage, overvoltage protect(includes power side phase-loss, voltage -loss,Faulted neutral line), overcurrent protect(Current induced self generating function), short-circuit protect, residual current protect. And it has online real time monitor and display the circuit parameters of current, voltage, residual current. And the Auto-reclose function can reclose the circuit after solving the faults automatically.
Standard: IEC60947-2 GB14048.2 and GB/Z6829.
Features：
1. Better Communicate Function
RS485 communicate port, Support protucol of Modbusand State Grid. Functions of Telemetering, Telesignalling.telecontrol. Teleadjusting for system remote control.
2.Full range measure and maintenance
Intelligent control unit consists of microelectronics precessing.
has functions of power grid monitor and protect.
3.Higher Reliability
New design With proprietary technology, through series ofReliability experiment.
4.Safe Power Protection
Has accurate selective protection, auto-reclose function fordistribution automatic operate.
Note:
1) Has externa terminal port, remote switch function instead of reaular shunt release function.Own overvoltace,undervolage protect functionnstead of reqular undervoltage release.
2) Auto-reclose function, has two methods of auto-manual operate and motor operate.
3)Current set(0.4-1.0) XIn+close.1A adiustable
For example: RDM5Z-250M/420 200A 500mA 100Pcs means that RDM5Z-250, Middle type capacity, with Auxliary contact, rated curent 200A, ratedeakage operate current 500mA, other parameter default,100PCS
To learn more please click:https://www.people-electric.com/rdm5z-series-moulded-case-circuit-breaker-auto-reclose-type-product/
Post time: Mar-14-2025
