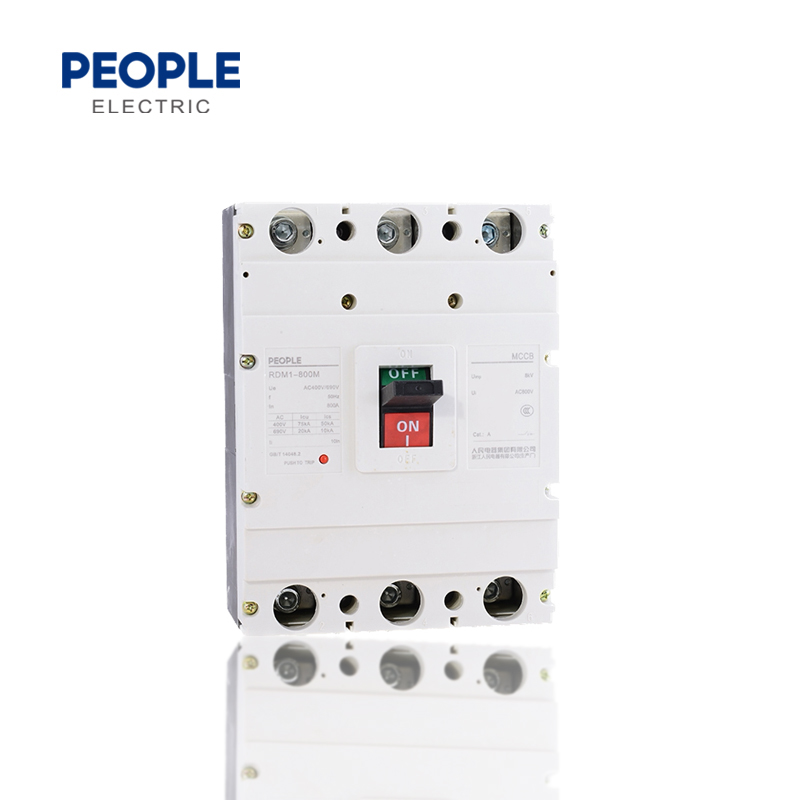

RDM1 Series CE CB ISO Moulded Case Circuit 400V or 690V Breaker (MCCB)

RDM1 series product has small volume, high breaking capacity, short arc, anti vibration advantages, whichis the ideal product for land and marine use. Breaker rated insulation voltage 800V (RDM1-63 insulation voltage is 500V), is applied to distribution network of AC 50Hz/ AC60Hz, rated working voltage up to 690V, rated current up to 1250A to distribe the power and protect the circuit and power source against overload, short- circuit and under-voltage damage, and it also can be used to transfer circuit, motor_x005fstart unfrequently and overload, short-circuit and under-voltage protection. The product can be installed vertically and horizontally.

Normal working condition and Installation environment：

1. Temperature: no higher than +40°C, and no lower than -5°C, and the average temperature no higher than +35°C.
2. Installation location no more than 2000m.
3. The relative humidity: no more than 50%, when Temperature is +40°C. The product can withstand the higher humidity under lower temperature, for instance, when temperature at +20°C, the product can withstand 90% relative humidity. The condensation that happened because of temperature changes should be taken care in special measurements
4. Class of pollution : 3 Class
5. Maximum install inclined Angle : 22.5°
6. Auxiliary circuit and control circuit installation type : II Class; Main circuit breaker installation type: III Class;
It can stand the normal vibration and operate stably under marine condition.

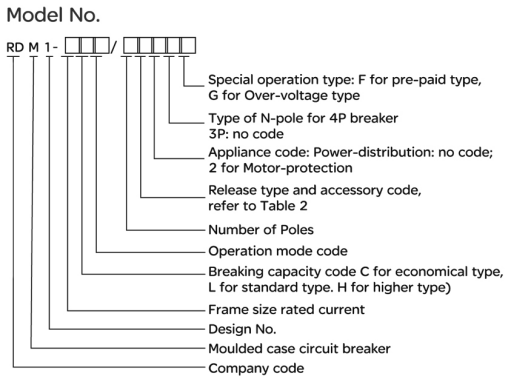

Main technical parameter：

Model No.	Frame size rated current Inm A	Rated current In (A)	Rated working voltage Ue (V)	Poles	Rated short-circuit crcuit Breaker (kA)
					Icu/ cosφ		Ics/ cos Φ
					400V	690V	400V	690V
RDM1-63L	63	(6), 10, 16, 20, 25, 32, 40, 50, 63	400	3	25	-	12.5	-	≤50
RDM1-63M			400	3, 4	50	-	25	-
RDM1-63H			400	3	50	-	25	-
RDM1-125L	125	(10), 16, 20, 25, 32, 40, 50, 63, 80, 100, 125	400	2, 3, 4	35	-	25	-	≤50
RDM1-125M			400/690	2, 3, 4	50	10	35	5
RDM1-125H			400/690	3, 4	85	20	50	10
RDM1-250L	250	100, 125, 160, 180, 200, 225, 250	400	2, 3, 4	35	-	25	-	≤50
RDM1-250M			400/690	2, 3, 4	50	10	35	5
RDM1-250H			400/690	3, 4	85	10	50	5
RDM1-400C	400	225, 250, 315, 350, 400	400	3	50	-	35	-	≤100
RDM1-400L			400/690	3, 4	50	10	35	5
RDM1-400M			400/690	3, 4	65	10	42	5
RDM1-400H			400/690	3, 4	100	10	65	5
RDM1-630L	630	400, 500, 630	400	3, 4	50	-	25	-	≤100
RDM1-630M			400/690	3, 4	65	10	32.5	5
RDM1-630H			400	3, 4	100	-	60	-
RDM1-800M	800	630, 700, 800	4400/690	3, 4	75	20	50	10	≤100
RDM1-800H			400	3, 4	100	-	65	-
RDM1-1250M	1250	700, 800, 1000, 1250	400/690	3, 4	65	20	35	10	≤100
