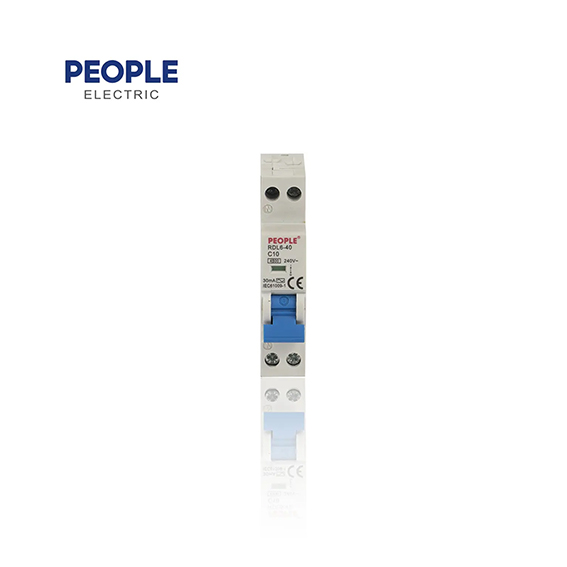

RDL6-40 residual current circuit breaker with overload protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection. Electromagnetic type RCD. Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.
It conforms with the standard of IEC/EN61009.
Application
Products are consistent with the standard: IEC/EN61009
TYPE(wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic:B,C
Rated current : 6,10,16,20,25,32,40A
Rated operational voltage : 230/400V-240/415V
Short-circuit operation capacity lcs : 4500A
Rated sensitivity I△n: 0.03,0.1,0.3A
Break time under I△n: ≤0.1s
Number of poles: 1P+N
Mechanical life: 2000 times
Electrical life: 2000 times
Mounting: On DIN rail EN60715(35mm) by means of fast clip device
Terminal connection type: Cable/pin type busbar/U type busbar
TYPE(wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic:B,C
Rated current : 6,10,16,20,25,32,40A
Rated operational voltage : 230/400V-240/415V
Short-circuit operation capacity lcs : 4500A
Rated sensitivity I△n: 0.03,0.1,0.3A
Break time under I△n: ≤0.1s
Number of poles: 1P+N
Mechanical life: 2000 times
Electrical life: 2000 times
Mounting: On DIN rail EN60715(35mm) by means of fast clip device
Terminal connection type: Cable/pin type busbar/U type busbar
