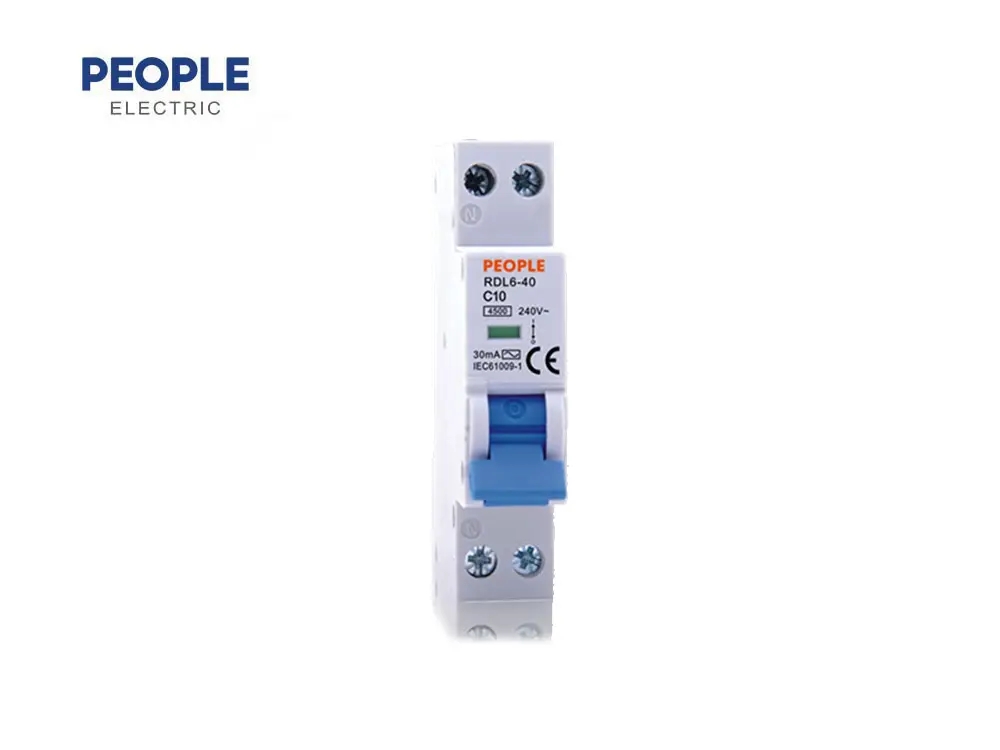

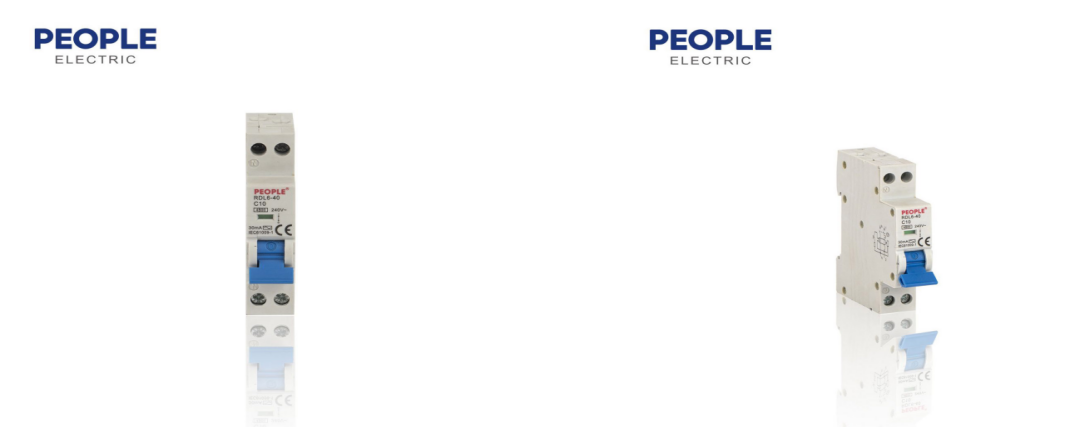

RDL6-40 residual current circuit breaker with overload protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection. Electromagnetic type RCD. Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/EN61009.
| Technical Specifications | ||||||||||||||
| Characteristic | Unit | Parameters | ||||||||||||
| Standard | IEC/EN 61009 | |||||||||||||
| Rated curType(wave form of the earth leakage sensed)rent In | AC, A | |||||||||||||
| Thermo-magnetic release characteristic | B,C | |||||||||||||
| Rated current In | A | 6,10,16,20,25,32,40 | ||||||||||||
| Poles | 1P+N | |||||||||||||
| Rated voltage Ue | V | 230/400-240/415 | ||||||||||||
| Rated sensitivity I△n | A | 0.03,0.1,0.3 | ||||||||||||
| Rated short-circuit capacity Icn | A | 4500 | ||||||||||||
| Break time under I△n | S | ≤0.1 | ||||||||||||
| Electrical life | 2000 times | |||||||||||||
| Mechanical life | 2000 times | |||||||||||||
| Mounting | On DIN rail EN60715(35mm)by means of fast clip device | |||||||||||||
| Terminal connection type | Cable/pin type busbar/ U type busbar | |||||||||||||
To learn more please click:https://www.people-electric.com/rdl6-40rcbo-residual-current-circuit-breaker-product/
