The items is in comply with standard of IEC61008-1,applying to the circuit of AC 50/60Hz,230V single phase,400V three phases or below it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire net, this is a current operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident.

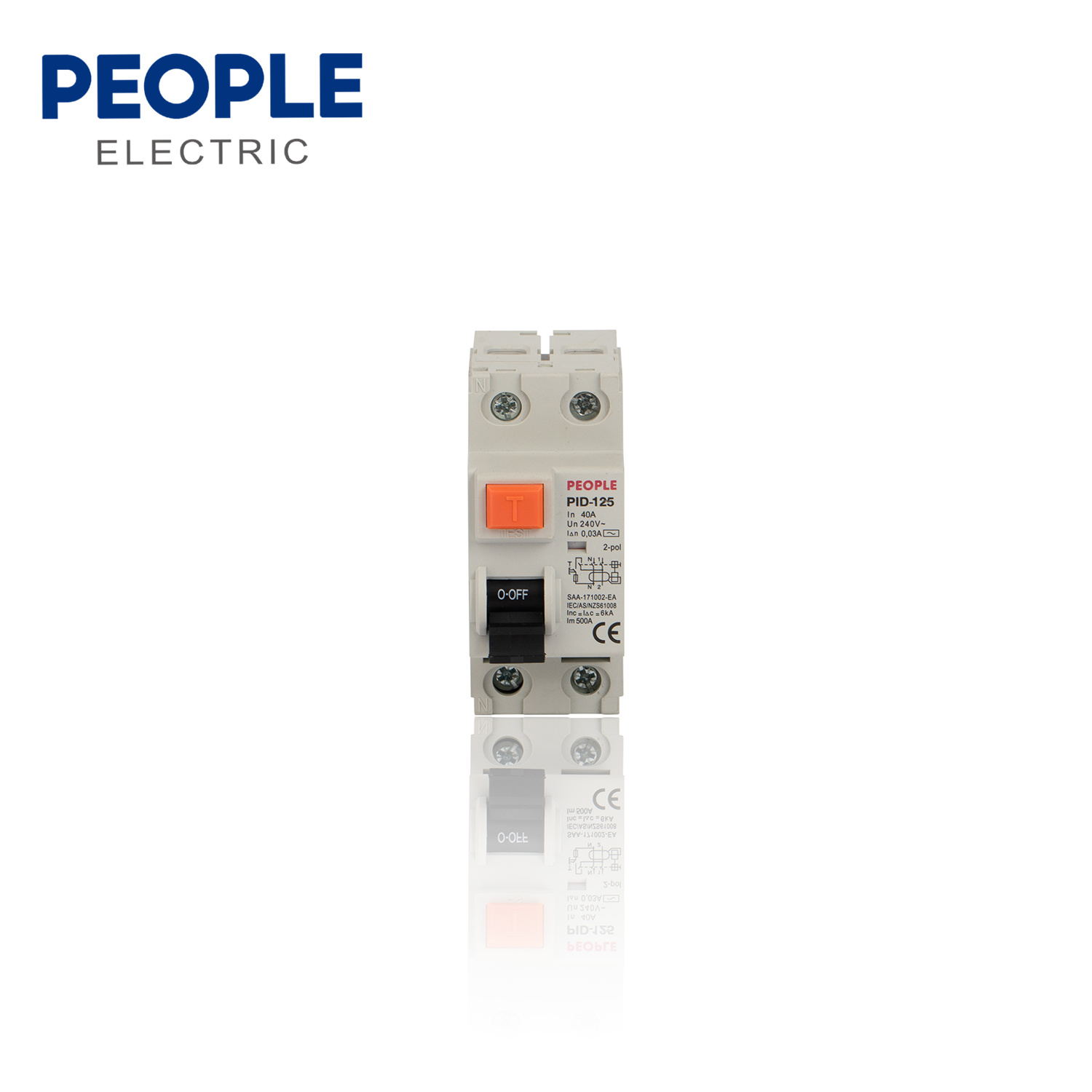

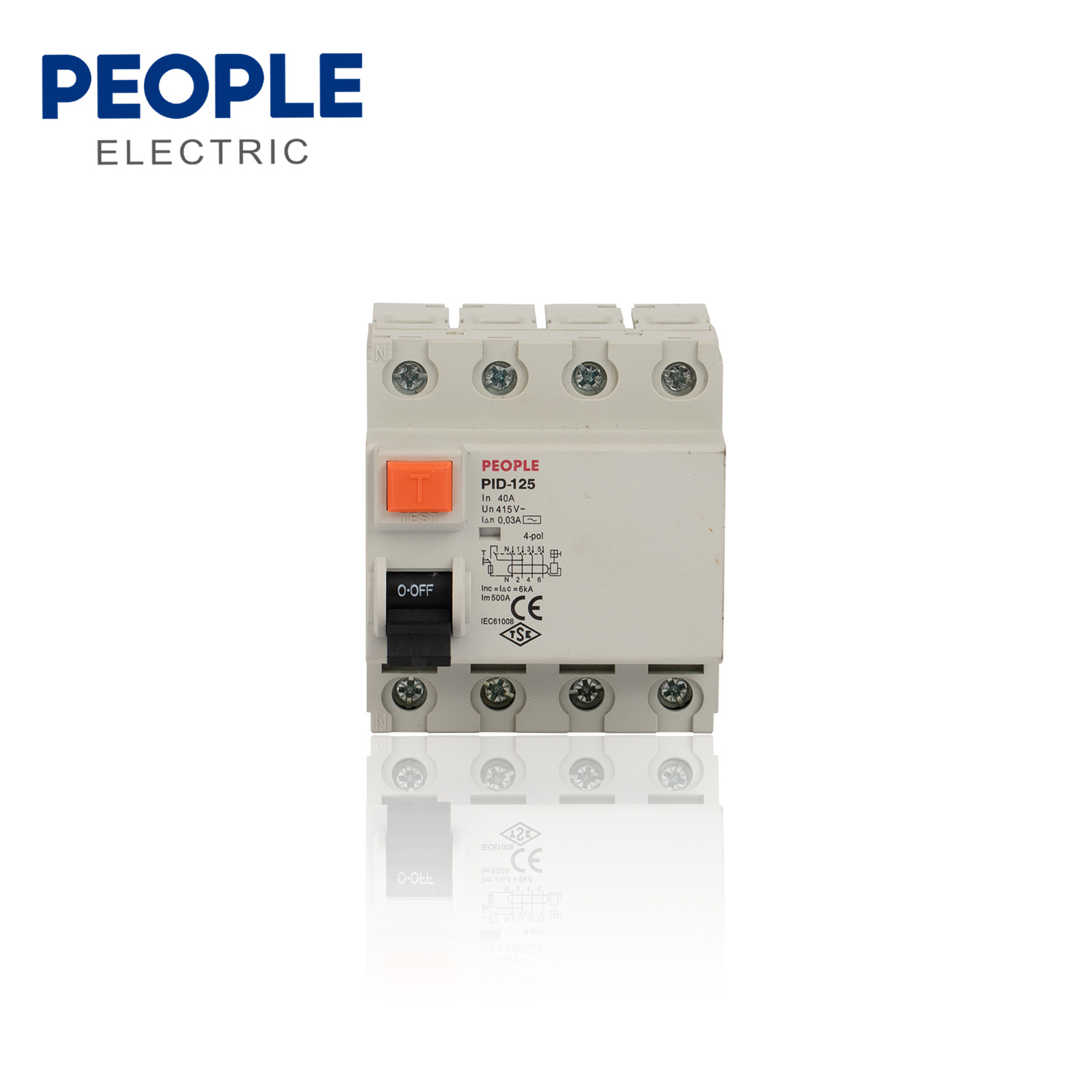

PID-125 can be used to cut off the fault circuit on the occasion of shock hazard or earth leakage of trunk line, It conforms to IEC61008.
Features :
- Prevent leakage accidents at the source
- Quick trip
- Flexible combination, narrow product width, can save distribution box space
- Humanized design and convenient installation
- Simple and elegant appearance
- Product operation is less affected by environmental factors
Parameters：
| Independent of line voltage: | Yes |
| Dependent of line voltage: | No |
| Rated voltage Ue:(V) | 230V or240V(1P+N):400V or 415V(3P+N) |
| Rated current in:(A) | 10A;16A;25A;20A;32A;40A;50A;63A;80A;100A;125A |
| Rated frequency:(Hz) | 50/60Hz |
| Rated residual operating current In:(A) | 30mA;100mA;300mA |
| Type: | AC type and A type |
| Temporisation: | Without time-delay |
| Nature of supply: | ~ |
| Total number of poles: | 1P+N and 3P+N(neutral on left |
| Rated insulation voitage Ui:(V) | 415V |
| Rated impulse withstandvoltageUimp:(V) | 4000V |
| Utilisation rangetemperature:(°C) | -5°℃ to +40℃ |
| Rated making and breaking capacityIm:(A) | 10In for 63A:80A:100A:125A500A for 10A:16A:25A:20A:32A40A:50A |
| Rated residual making and breaking capacity Im:(A) | Same as Im |
| Rated conditional short-circuit current Inc:(A) | 6000A |
| Rated conditional residual short-circuit current Ic:(A) | Same as Im |
| Short-circuit protection devices SCPDs used: | Silver wire |
| Grid distance(short-circuit tests): | 50mm |
| Protection against external influences: | Enclosed |
| Protection degree: | IP20 |
| Material group: | llla |
| Method of mounting: | On rail |
| Method of electrical connection | ~ |
| not associated with the mechanical-mounting | Yes |
| associated with the mechanical-mounting | No |
| Type of terminals | Pillar terminal |
| Nominal diameter of thread:(mm) | 5.9mm |
| Operating means | Lever |
