Product Description

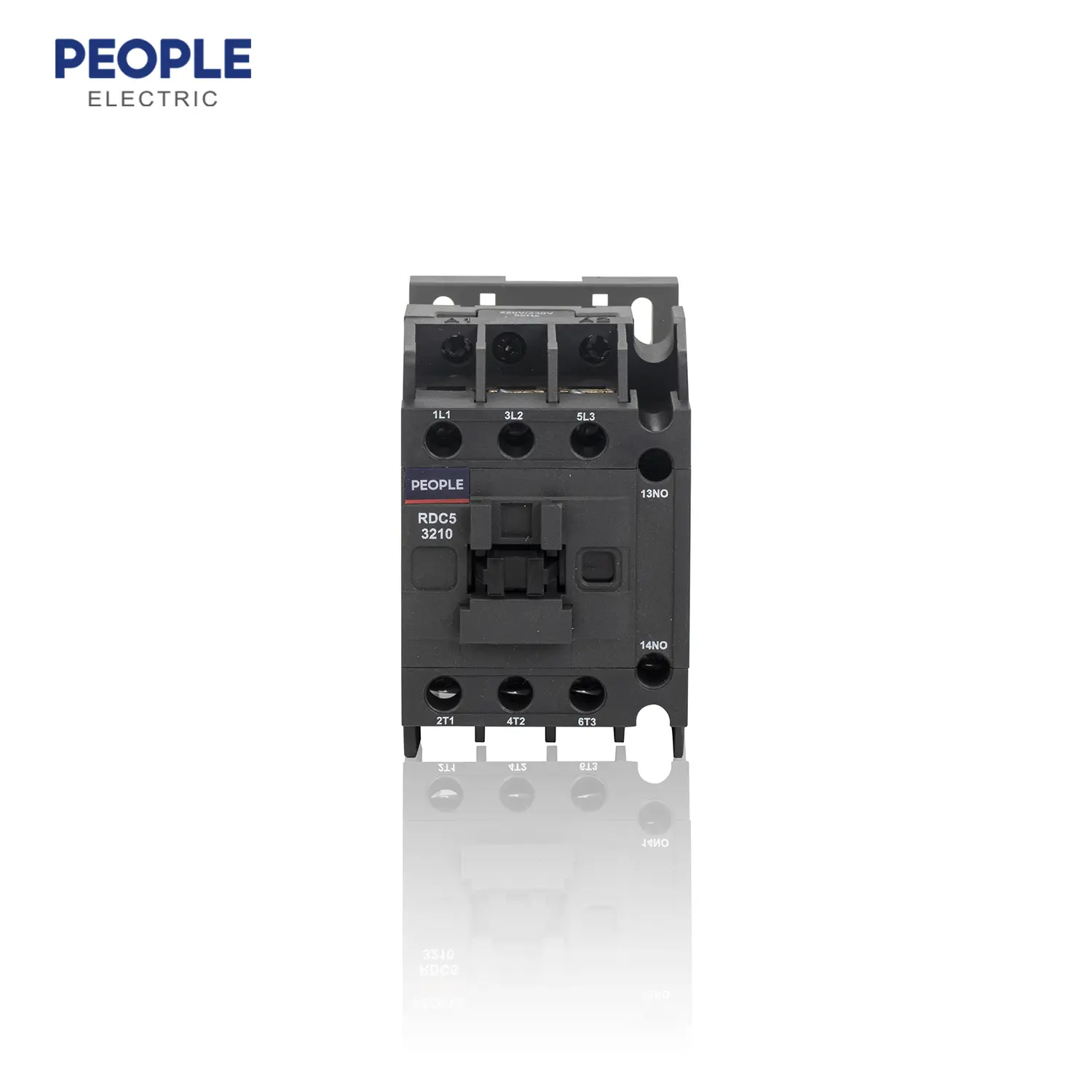

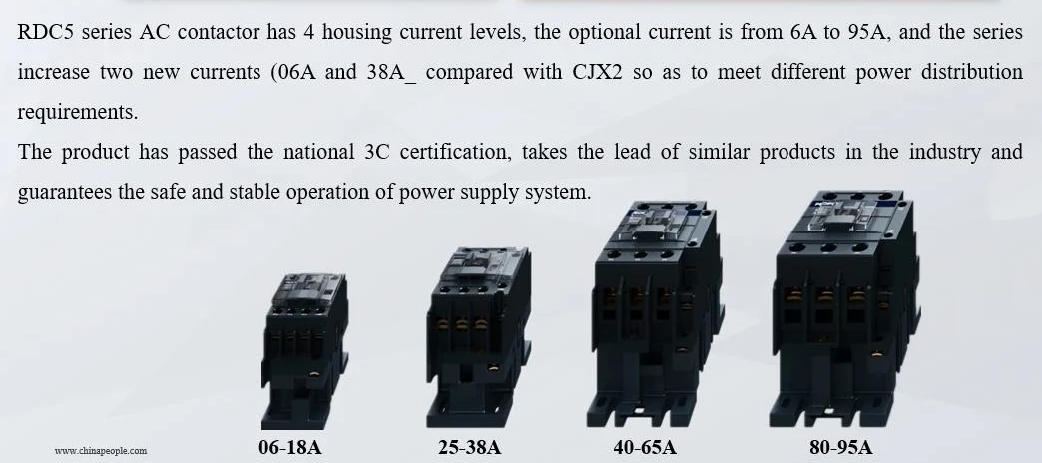

PEOPLE Brand RDC5 AC Contactor 3P Rated Current 6A-95A

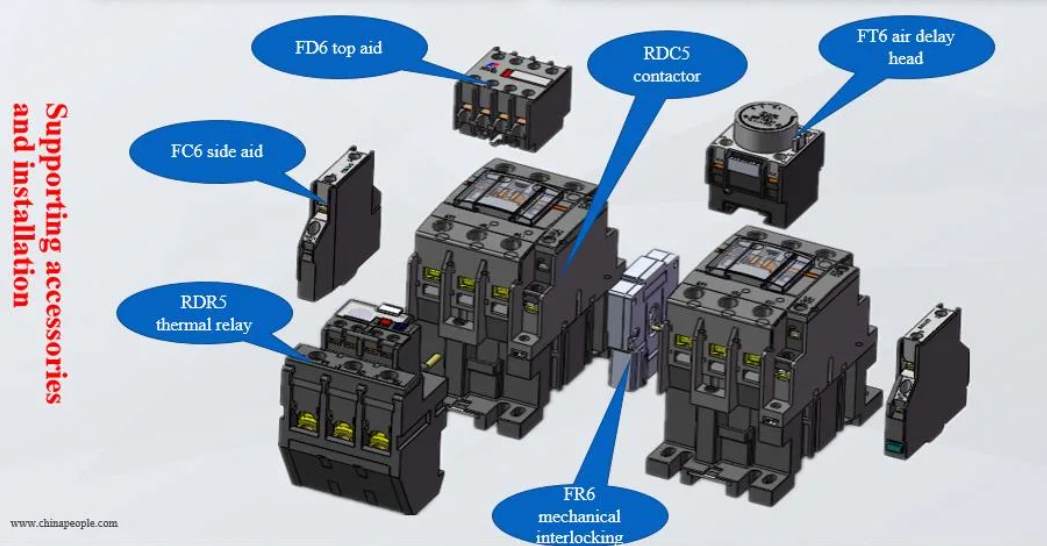

RDC5 series AC contactors are mainly used in circuits with AC 50Hz/60Hz, rated working voltage up to 690v, and rated working current up to 95A, for long-distance connection and segmented circuits, and can be directly plugged with thermal relays to form electromagnetic starters , to protect circuits that may be overloaded by operation. The contactor can also be assembled with accessories such as building block auxiliary contact group, air delay head, mechanical interlocking mechanism, etc., to form a delay contactor, a contactor, and a star-delta starter.
Product standard: GB/T 14048.4, IEC60947-4-1 and other national standards
Normal operating condition andinstallation condition
1.Ambienttemperature:+5ºC~+40ºCaverage temperature within 24h does notexceed+35ºC
2.Altitude:doesnotexceed2000m
3. Atmospheric condition:when the highest temperature is +40ºCthe relatively humidity does not exceed 50%;it can allow relatively high humidity when it is at relatively low temperature, for instance, it reaches 90% when it is at +20ºCit should take measurement when there have
condensation occurred due tothetemperaturevariation.
4.Pollutiongrade:3
5.Installation category:III
6. Installation position: the gradient of the mounting surface to the vertical surface does not exceed ±5°
7. lmpact and vibration: product should be installed and used at the places without obvious shake impactandvibration.
