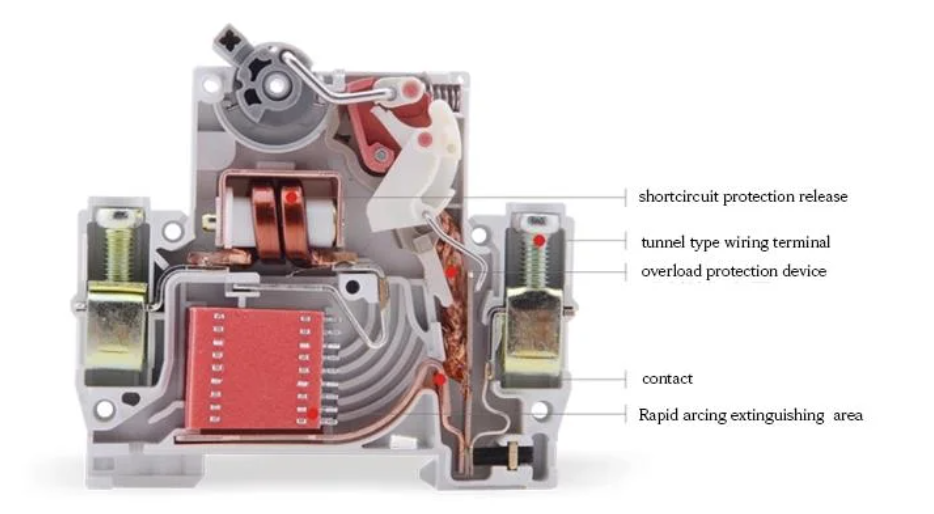

MINIATURE CIRCUIT BREAKER

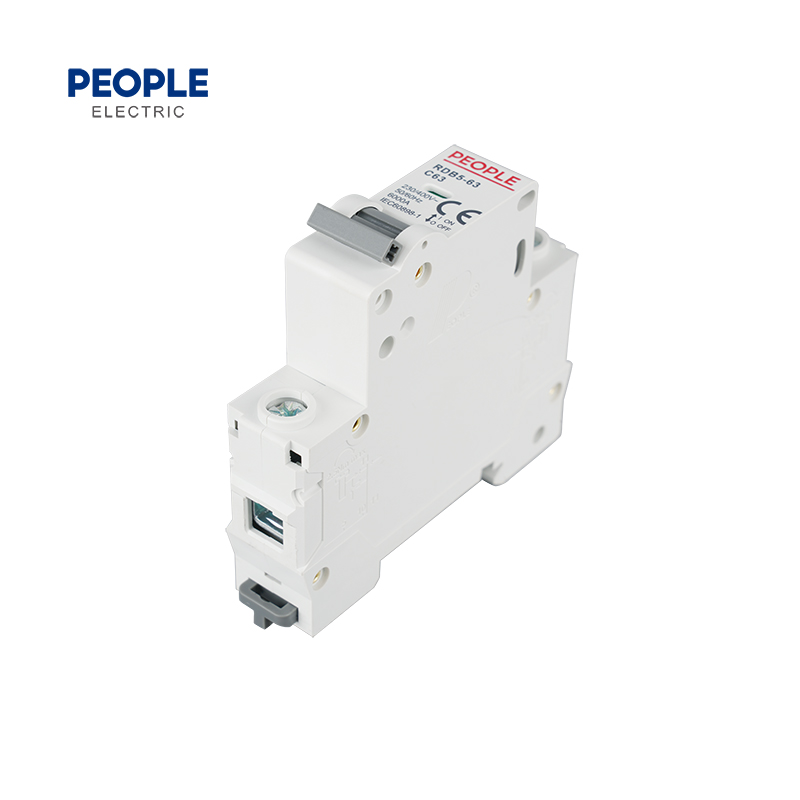

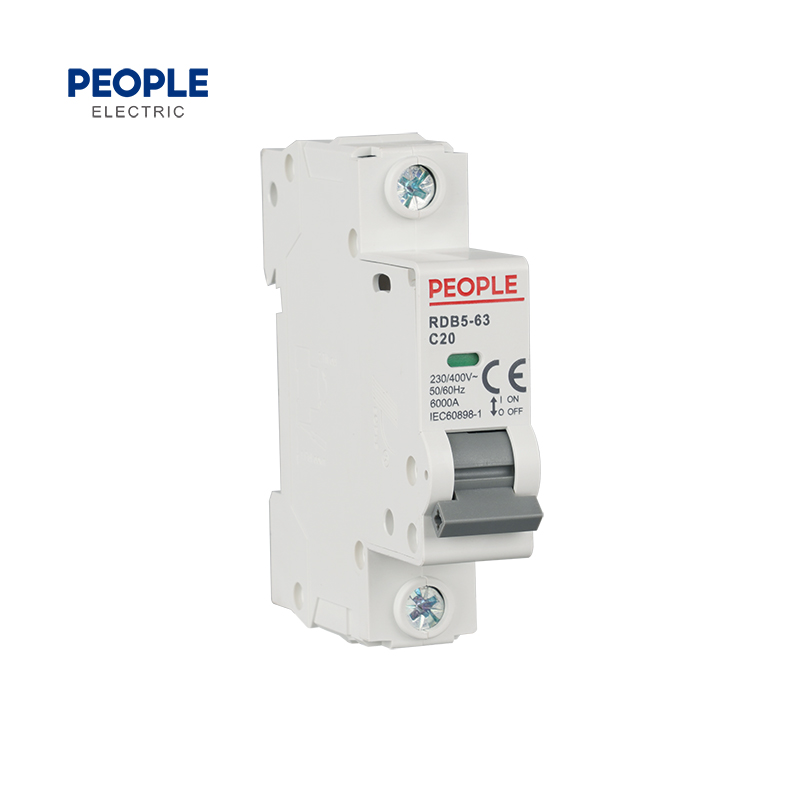

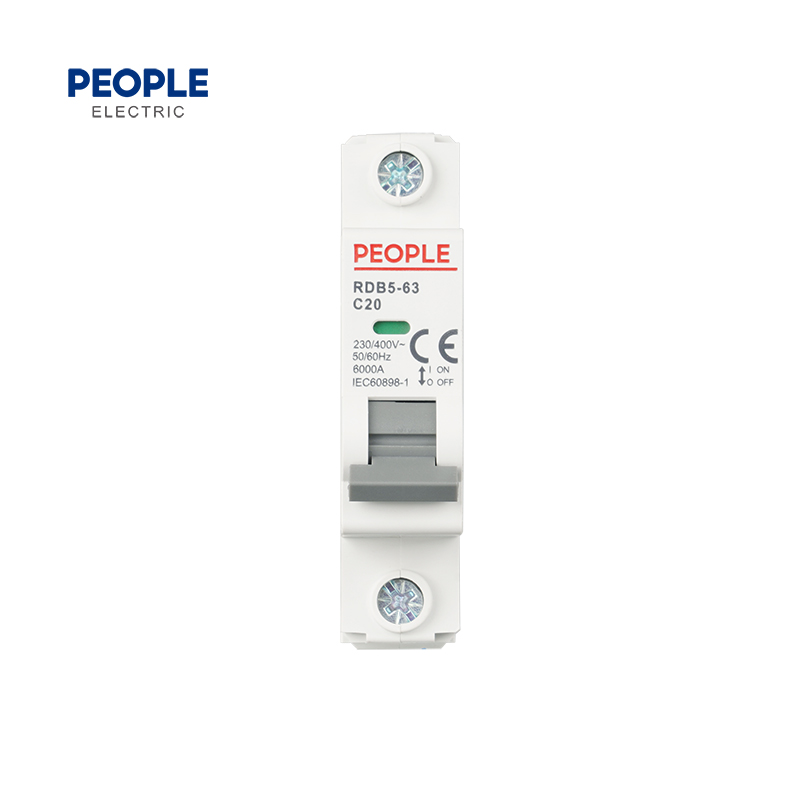

RDB5-63
Application:
RDB5-63 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V (single phase),400V(2,3, 4 phases), for overload and short circuit protection. Rated current up to 63A. It also can be used as a switch for an infrequent conversion line. It is main used in domestic installation, as well as in commercial and industrial electrical distribution systems.It conforms with the standard of IEC/EN60898-1
LEADING SERIES-RDB5 miniature circuit breaker
Technical parameters :
Products are consistent with the standard:IEC60898-1
Rated current (A):1,3,6,10,16,20,25,32,40,50,63A
Rated operational voltage (V):AC230V/400V
Rated frequency (Hz):50/60Hz
Instantaneous release:B,C,D
Number of poles:1P, 2P, 3P, 4P,1P+N,3P+N
Mechanical life:20000 times
Electrical life:10000 times
Rated insulation voltage Ui(V):AC500V
Protective grade:IP 20
Operating short-circuit capability Ics(A):6000
Ambient temperature(ºC):-10ºC~+55ºC
Terminal connection type:Cable/Pin type busbar
Terminal size top/bottom for cable(mm²)：25
Arcing distance(mm):≤50
Mounting：On DIN rail EN60715(35mm) by means of fast clip device
