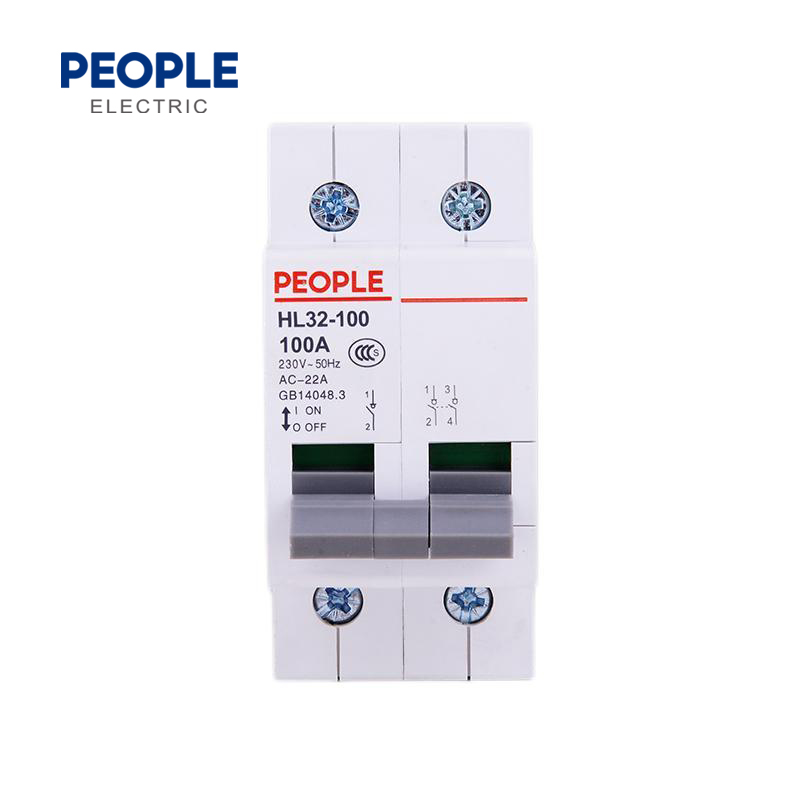

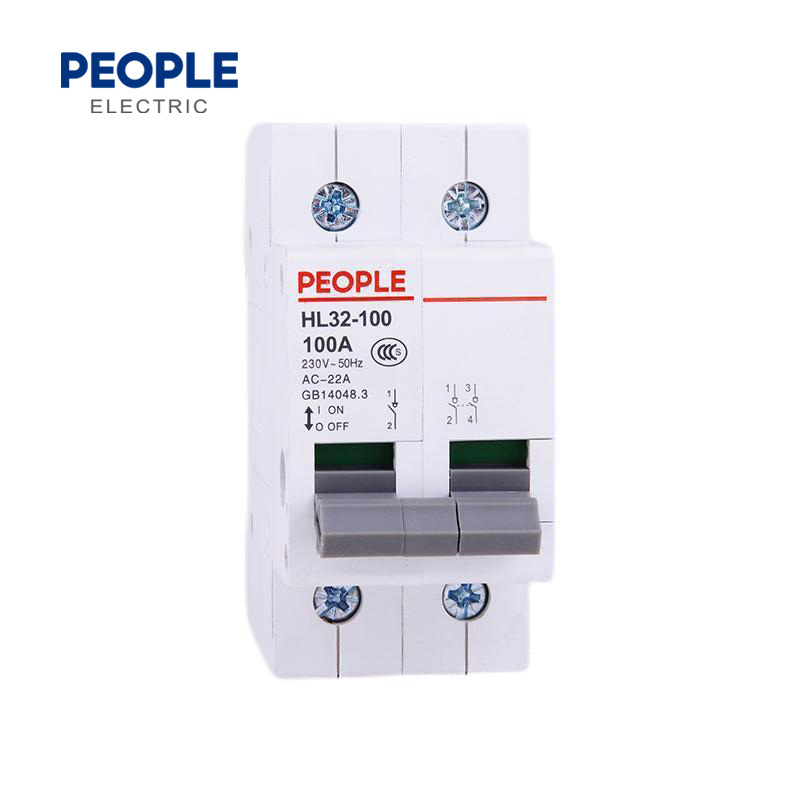

HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50Hz/60Hz, rated voltage of 230/400V and rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.The product meets the standards of IEC60947.3
Application:
HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400Vand rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.
Product category:
1.Rated current In: 32A,63A,100A;
2.Number of poles: Single pole, Two poles, Three poles, Four poles;
Technical parameter:
| Standard | IEC/EN 60947-3 | |||||
| Electrical features | Rated voltage Ue | V | 230/400 | |||
| Rated current le | A | 32,63,100 | ||||
| Rated frequency | Hz | 50/60 | ||||
| Rated impulse withstand voltage Uimp | V | 4000 | ||||
| Rated short-time withstand current Icw | 12le,1s | |||||
| Rated making and breaking capacity | 3le,1.05Ue,cosφ=0.65 | |||||
| Rated short circuit making capacity | 20le,t=0.1s | |||||
| Insulation voltage Ui | V | 500 | ||||
| Pollution degree | 2 | |||||
| Use category | AC-22A | |||||
| Terminal connection type | Cable/Pin-type busbar | |||||
| Terminal size top/bottom for cable | mm2 | 50 | ||||
| AWG | 18-1/0 | |||||
| Terminal size top/bottom for busbar | mm2 | 25 | ||||
| AWG | 18-3 | |||||
| Tightening torque | N*m | 2.5 | ||||
| In-Ibs | 22 | |||||
| connection | From top and bottom | |||||
| Mechanical features | Electrical life | 1500 | ||||
| Mechanical life | 8500 | |||||
| Protection degree | IP20 | |||||
| Ambient temperature (with daily averages 35℃) | ℃ | -5~+40 | ||||
| Storage temperature | ℃ | -25~+70 | ||||
Main specifications:
1. Rated short-time withstand current: 12In,electrifying time 1s;
2 .Rated short-time making capacity:20In,electrifying time 0.1s;
3. Rated making and breaking capacity: 1.05Ue,3in,cosf=0.65
4.Rated limited short-circuit current:20KA
5. Operating performance: No load 8500 times, On load 1500 times, 10000 in total. cosf=0.8, Operation frequency is 120 times/hour.

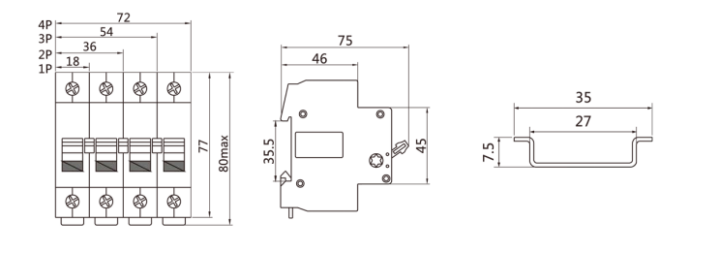

Shape and installation dimensions:
