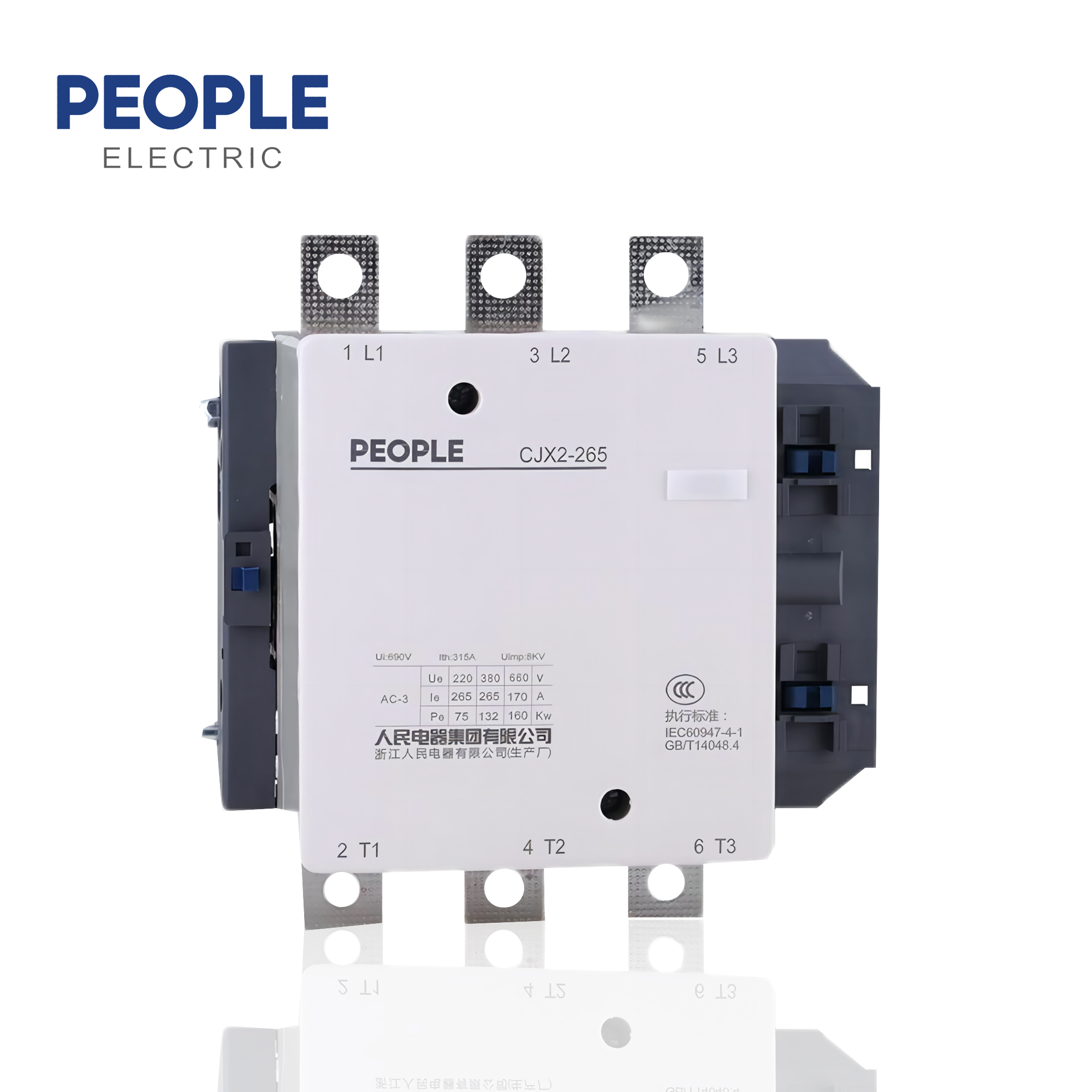

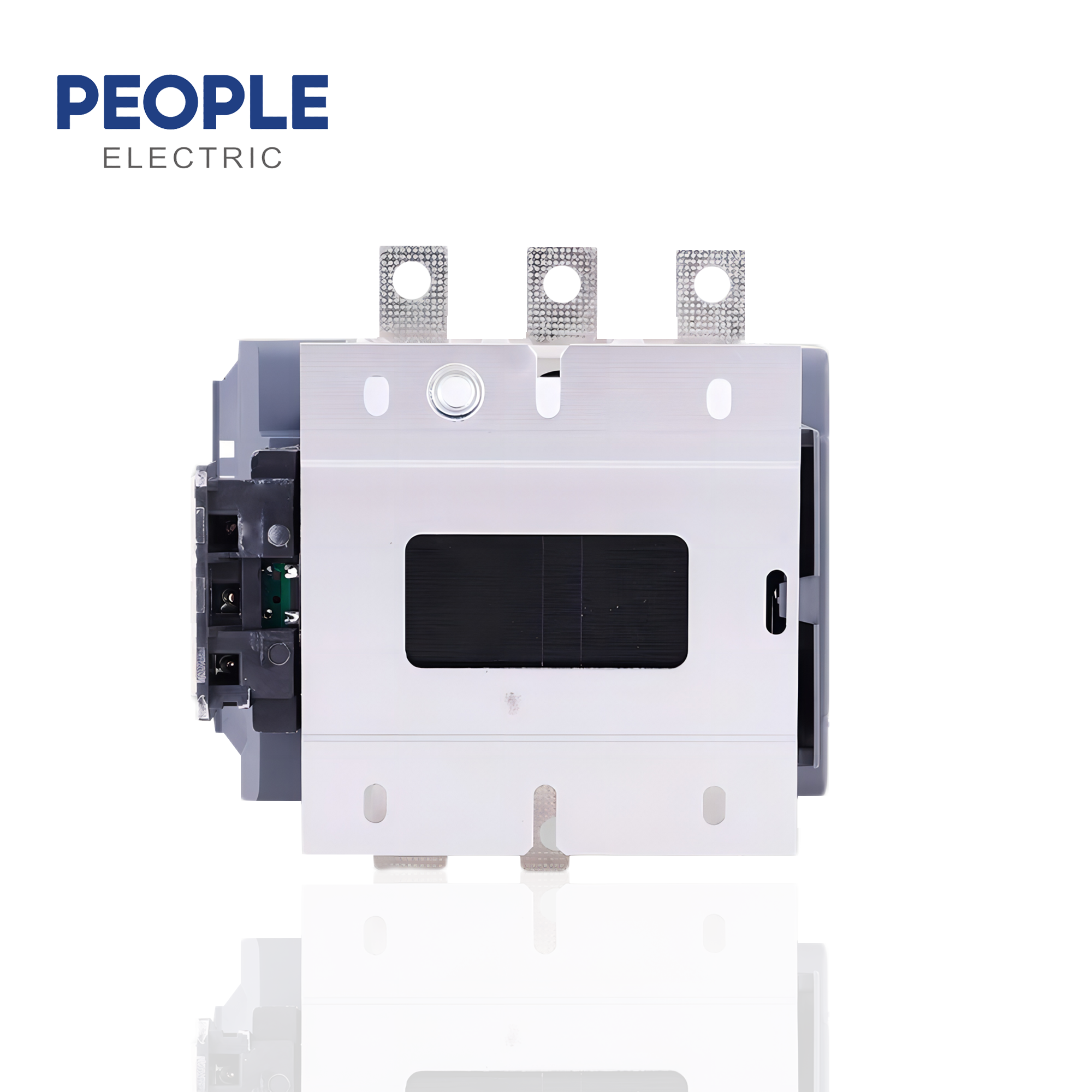

The CJX2 series AC contactors are mainly used in circuits with AC 50Hz (or 60Hz), rated working voltage up to 690V, and rated working current up to 630A, for remote connection and disconnection of circuits. They can also be combined with appropriate thermal overload relays to protect circuits that may experience operational overload.Product confirms to:GB14048.4, IEC60947-4-1 etc. standards
| Application | ||||||||||||||
| 1.1 Altitude height ofInstallation places does not exceed 2000m | ||||||||||||||
| 1.2 Ambient temperature | ||||||||||||||
| Up limitation of ambient temperature does not exceed +40℃: Average value in 24h of ambienttemperature does not exceed +35℃. The low limitation of ambient temperature does not lowerthan -5℃ | ||||||||||||||
| 1.3 Condition of atmosphere | ||||||||||||||
| 1.4 Humidity | ||||||||||||||
| When it is the highest temperature +40℃, the relative humidity does not exceed 50%, and itallows a certain high relative humidity when it is at relatively low temperature. For example, itreaches 90% when 20C and it should take special measurements when there occurringcondensation due to the temperature variation. | ||||||||||||||
| 1.5 Pollution grade: Class 3 | ||||||||||||||
| 1.6 Installation condition | ||||||||||||||
| nstalling at the places that without impact vibration and without snow or rain: up termina.connects power, and the low terminal connects the load: the gradient between the vertical and theproduct does not exceed 5℃ | ||||||||||||||
| 1.7 Installation category: IIl | ||||||||||||||
To learn more please click:https://www.people-electric.com/cjx2-115-630-series-ac-contactor-2-product/
Post time: Mar-01-2025
