Hot-selling GTW1-4000-4P Intelligent Universal Fixed Air Circuit Breaker Acb with IEC60947-2

RDW5 series universal circuit breakers are suitable for distribution network with AC 50Hz/60Hz, rated working voltage 400V.690V, rated current below 6300A, mainly used for power distribution, feeding and power generation protection, so that lines and power equipment are protected from Overload, undervoltage, overvoltage, current and voltage unbalance, short circuit and grounding/leakage and other fault hazards. Through load monitoring, regional interlocking and other functions to achieve reasonable operation of the power grid.

At the same time, it can also be used to measure the current, voltage, power, frequency, electric energy, demand, harmonics and other grid parameters of grid nodes. The circuit breaker can also be directly used for overload, undervoltage and short circuit protection of motors and generators. The core part of the circuit breaker adopts intelligent controller with precise selective protection


  • Hot-selling GTW1-4000-4P Intelligent Universal Fixed Air Circuit Breaker Acb with IEC60947-2
  • Hot-selling GTW1-4000-4P Intelligent Universal Fixed Air Circuit Breaker Acb with IEC60947-2

Product Detail

Application

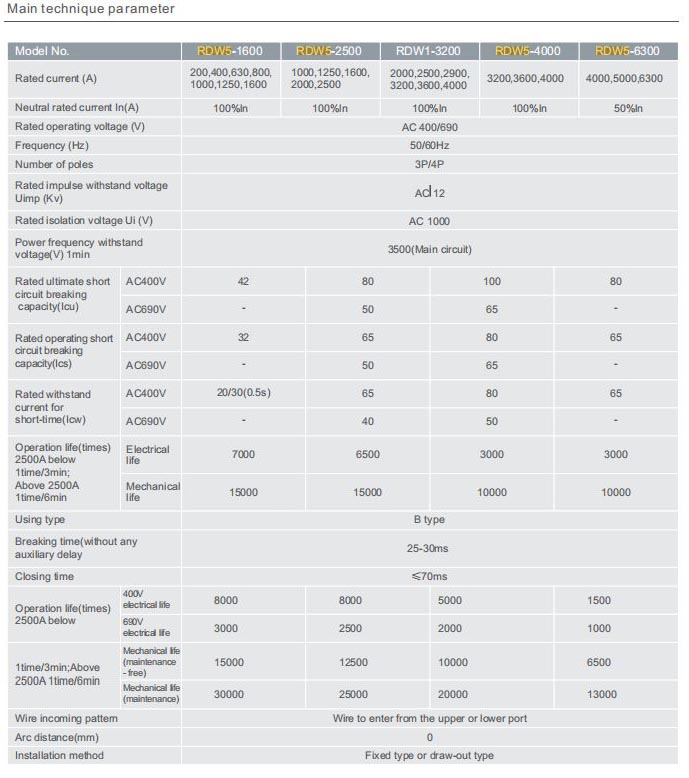

Parameters

Samples & Structures

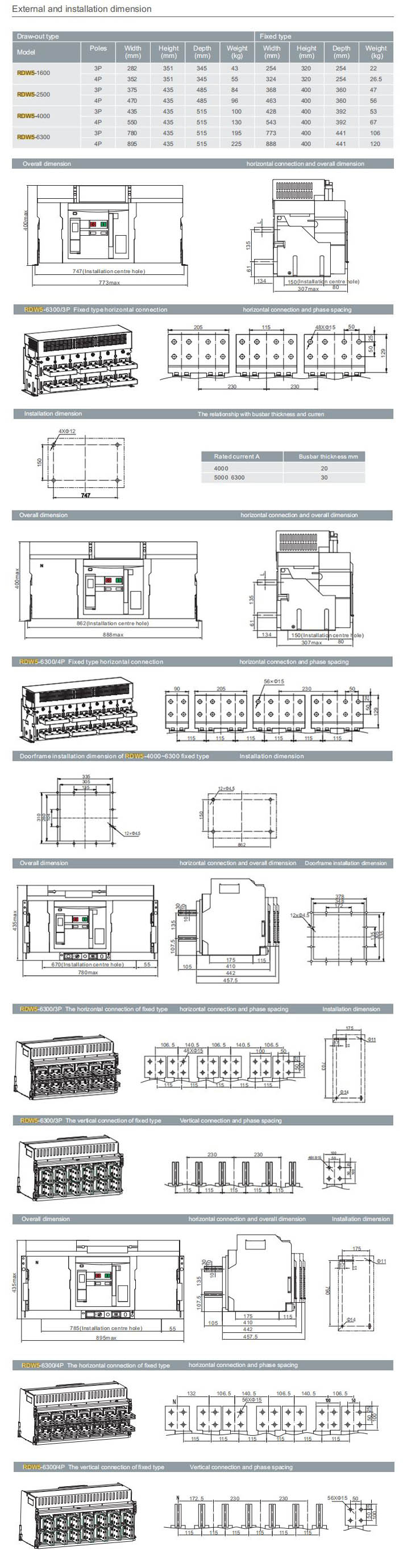

Dimensions

As for aggressive charges, we believe that you will be searching far and wide for anything that can beat us. We could state with absolute certainty that for such excellent at such costs we’ve been the lowest around for Hot-selling GTW1-4000-4P Intelligent Universal Fixed Air Circuit Breaker Acb with IEC60947-2, We often welcome new and previous customers offers us with worthwhile information and proposals for cooperation, let’s grow and create jointly, and also to lead to our group and employees!
As for aggressive charges, we believe that you will be searching far and wide for anything that can beat us. We could state with absolute certainty that for such excellent at such costs we’ve been the lowest around for China Acb and Air Circuit Breaker, Our production have been exported to more than 30 countries and regions as first hand source with lowest price. We sincerely welcome customers from both at home and abroad to come to negotiate business with us.

Product Introduction

RDW5 series intelligent type Air circuit breaker is applied to power distribution network of AC 50/60Hz, rated operating voltage up to 400V/690V, rated current up to 6300A. It’s mainly used to distribute power and protect circuit and power-supply equipment against damage of faults, such as overload, under-voltage, short-circuit, single-phase grounding, and it has insulation function. Besides, the circuit breaker has various intelligent protect function, can realize bidirectional communication between several breaker and central control computer by its network system, realize remote control function to satisfied the requirements of automatic system control. The circuit breaker conforms the standard of IEC60947-2.

Features

1.ECONOMICAL & FLEXIBLE

2.Quality Parts, Durability, Modular Design, Safe & Reliable

3.HIGHER electrical lifespan

4.More durable & Better performance

5.reduced maintenance cost

6.Innovaive ARC Extinguishing Design

7.Creating“CORE”design “WISDOM”for future

8.Compact in Size

9.Unique Secondary Terminal

10.Flexible Connection

11.Stringent environment capabilitiesAs for aggressive charges, we believe that you will be searching far and wide for anything that can beat us. We could state with absolute certainty that for such excellent at such costs we’ve been the lowest around for Hot-selling GTW1-4000-4P Intelligent Universal Fixed Air Circuit Breaker Acb with IEC60947-2, We often welcome new and previous customers offers us worthwhile information and proposals for cooperation, let’s grow and create jointly, and also to lead to our group and employees!
Hot-selling China Acb and Air Circuit Breaker, Our production has been exported to more than 30 countries and regions as a first-hand source with the lowest price. We sincerely welcome customers from both at home and abroad to come to negotiate business with us.

Application (1) Application (2) Application (3) Application (4) Application (5) Application (6) Application (7) Application (8) Application (9) Application (10) Application (11)

Application (12)

Application (14)

Application (15)

Application (1) Application (2) Application (3) Application (4) Application (5) Application (6) Application (7) Application (8) Application (9) Application (10) Application (11)

Application (12)

Application (14)

Application (15)
