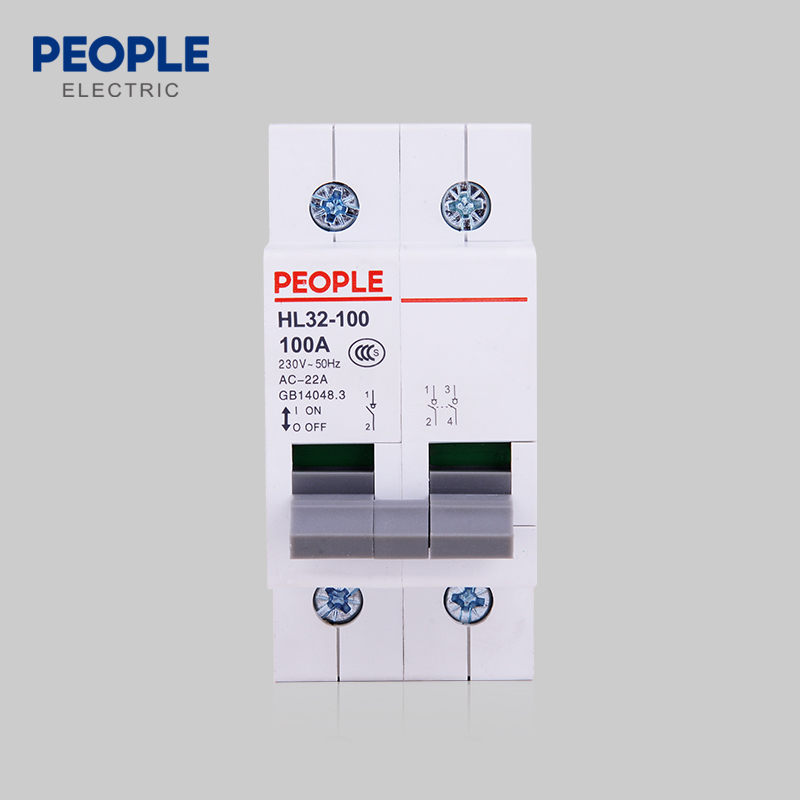

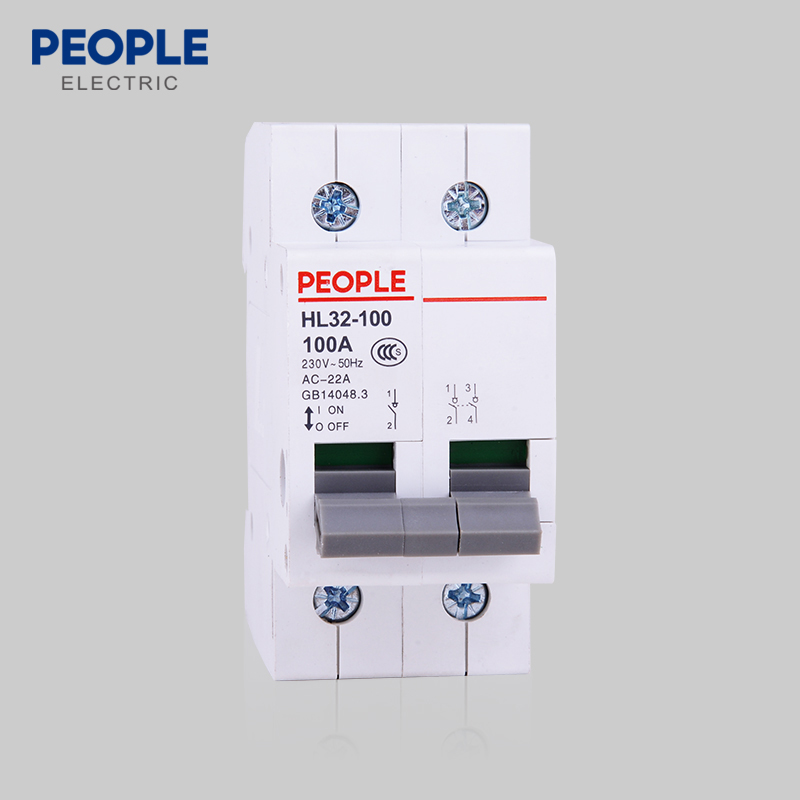

HL32-100 Series Isolating Switch – MCB Type

HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400Vand rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.
The product meets the standards of IEC60947.3


Download as PDF
  • HL32-100 Series Isolating Switch – MCB Type
  • HL32-100 Series Isolating Switch – MCB Type
  • HL32-100 Series Isolating Switch – MCB Type
  • HL32-100 Series Isolating Switch – MCB Type

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400Vand rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.
The product meets the standards of IEC60947.3

HL32-100

HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400Vand rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.

Product category

1.Rated current In: 32A,63A,100A;
2.Number of poles: Single pole, Two poles, Three poles, Four poles;

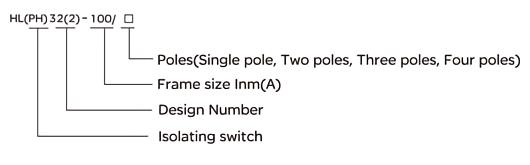

Model No.

10

Technical parameter

  Standard   IEC/EN 60947-3
Electrical features Rated voltage Ue V 230/400
Rated current le A 32,63,100
Rated  frequency   Hz    50/60
Rated impulse withstand voltage Uimp      V 4000
Rated short-time withstand current Icw   12le,1s
Rated making and breaking capacity   3le,1.05Ue,cosφ=0.65
Rated short circuit making capacity       20le,t=0.1s
Insulation voltage Ui   V 500
Pollution degree     2
Use category      AC-22A
Terminal connection type    Cable/Pin-type busbar
Terminal size top/bottom for cable mm2 50
AWG 18-1/0
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2.5
In-Ibs 22
connection   From top and bottom
Mechanical features Electrical life    1500
Mechanical life     8500
Protection degree       IP20
Ambient temperature (with daily averages 35℃) ℃  -5~+40
Storage temperature ℃  -25~+70

Main specifications

1. Rated short-time withstand current: 12In,electrifying time 1s;
2 .Rated short-time making capacity:20In,electrifying time 0.1s;
3. Rated making and breaking capacity: 1.05Ue,3in,cosf=0.65
4.Rated limited short-circuit current:20KA
5. Operating performance: No load 8500 times, On load 1500 times, 10000 in total. cosf=0.8, Operation frequency is 120 times/hour.

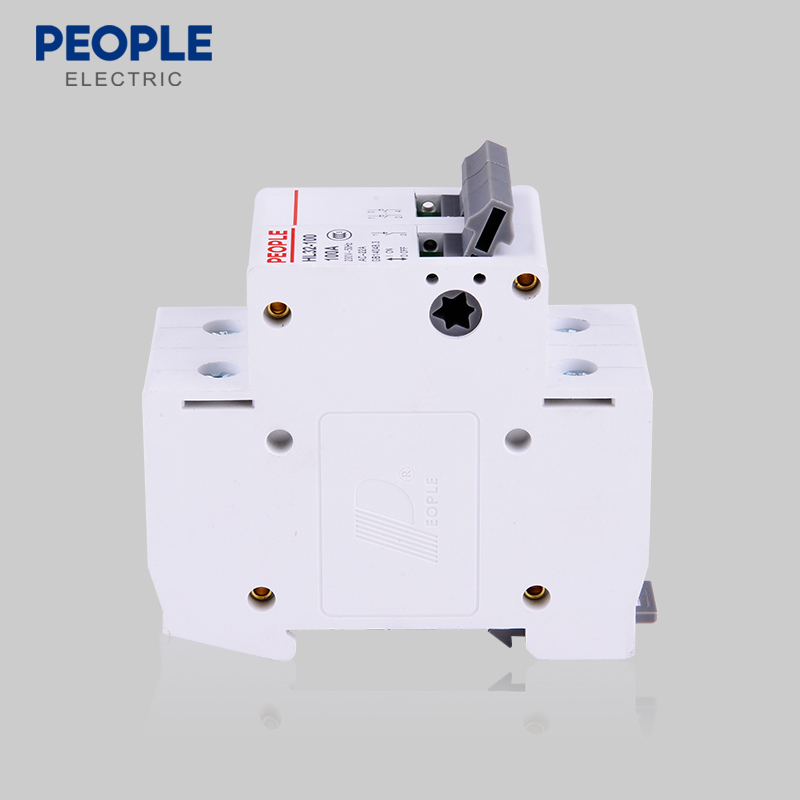

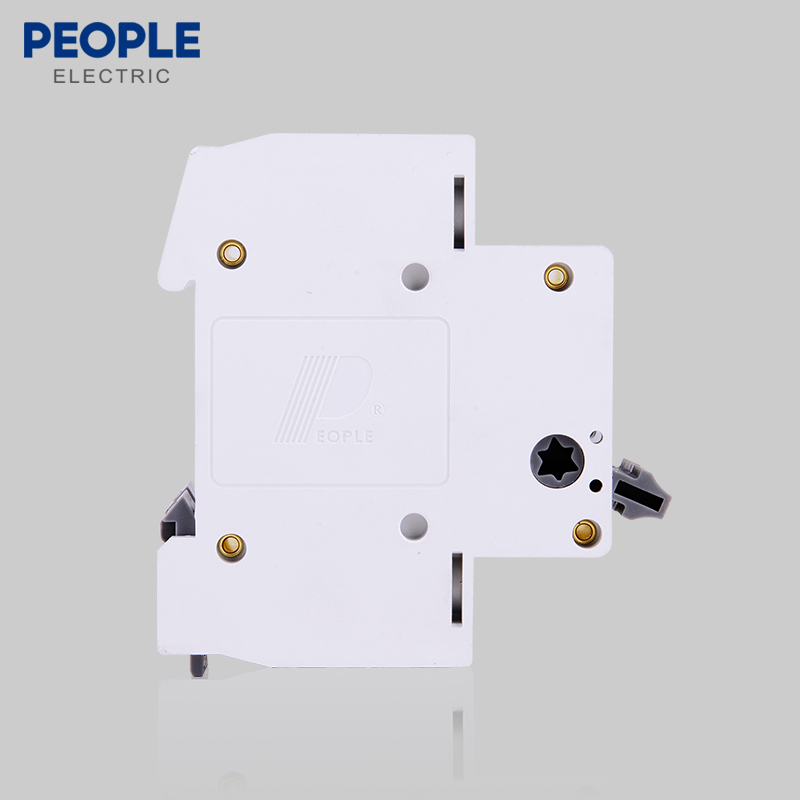

HL32-100 1 HL32-100 2 HL32-100 3

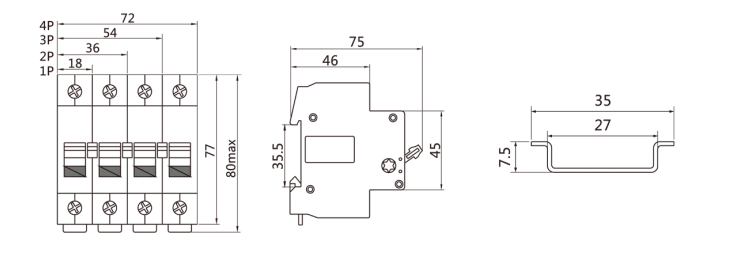

Shape and installation dimensions

11

HL32-100(PH2-100) series isolating switch is applicable to the power distribution andcontrol circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400Vand rated current up to 100A as master switch of terminal electrical equipment. It canbe used to control various motors, small powor electric appliance and illumination etc.lt is widely used for industrial and mining enterprises, high buildings, commercial places,home and so on.

Product category

1.Rated current In: 32A,63A,100A;
2.Number of poles: Single pole, Two poles, Three poles, Four poles;

Model No.

10

Technical parameter

  Standard   IEC/EN 60947-3
Electrical features Rated voltage Ue V 230/400
Rated current le A 32,63,100
Rated  frequency   Hz    50/60
Rated impulse withstand voltage Uimp      V 4000
Rated short-time withstand current Icw   12le,1s
Rated making and breaking capacity   3le,1.05Ue,cosφ=0.65
Rated short circuit making capacity       20le,t=0.1s
Insulation voltage Ui   V 500
Pollution degree     2
Use category      AC-22A
Terminal connection type    Cable/Pin-type busbar
Terminal size top/bottom for cable mm2 50
AWG 18-1/0
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2.5
In-Ibs 22
connection   From top and bottom
Mechanical features Electrical life    1500
Mechanical life     8500
Protection degree       IP20
Ambient temperature (with daily averages 35℃) ℃  -5~+40
Storage temperature ℃  -25~+70

Main specifications

1. Rated short-time withstand current: 12In,electrifying time 1s;
2 .Rated short-time making capacity:20In,electrifying time 0.1s;
3. Rated making and breaking capacity: 1.05Ue,3in,cosf=0.65
4.Rated limited short-circuit current:20KA
5. Operating performance: No load 8500 times, On load 1500 times, 10000 in total. cosf=0.8, Operation frequency is 120 times/hour.

HL32-100 1 HL32-100 2 HL32-100 3

Shape and installation dimensions

11
