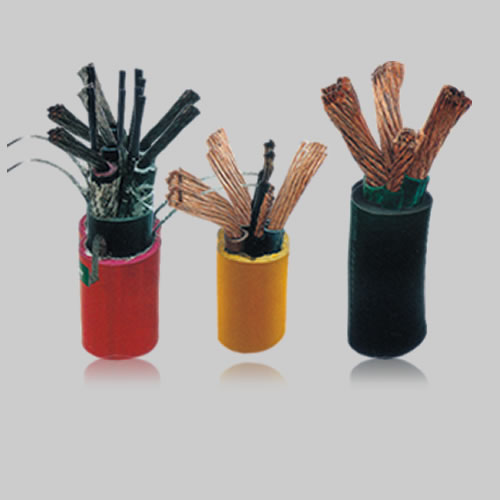

General rubber sheathed flexible cables

General rubber sheathed flexible cables is made for the application in power transmission of powe, home applance and al outdoor movable electric equiments at A.C.rated voltage up to WyU/ 450/750V.


  • General rubber sheathed flexible cables

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

General rubber sheathed flexible cables is made for the application in power transmission of powe, home applance and al outdoor movable electric equiments at A.C.rated voltage up to WyU/ 450/750V.

Features

1676599645992

Rated voltage U0/U为450/750V300/500V.300/300V.

"W” Type cable with the performance of air resistance and oil resistivity is suitable for the use of outdoor occasions or the of contacting with the greasy dirt

Product Introduction (1)

Application characteristic

Rated voltage UU 450/750V.300/500V.300/300V.

“W”Type cable with the perfomance of air resistance and oil resistivty is suitable for the use of outdooroccasions or the of contacing with the greasy dit.Product range

Model No.of cores Normal cross sectional area of conductor mm2
YC
YCW		 1
2
3,4，3+1
5		 1.5-400
1.5-95
1.5-150
1.5-25
YZ
YZW		   0.75-6

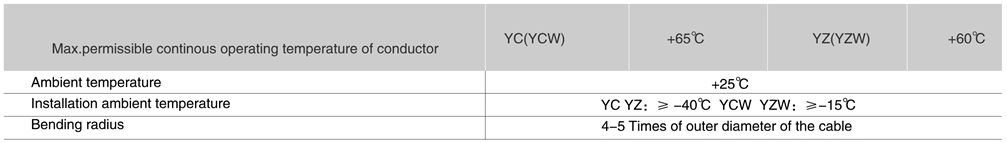

Max.permissible continous operating temperature of conductor YC(YCW) 65℃ YZ(YZW) 60℃
Ambient temperature +25℃
Installation ambient temperature YC YZ:=-40℃ YCW YZW: =-15℃
Bending radius 4-5 Times of outer diameter of the cable

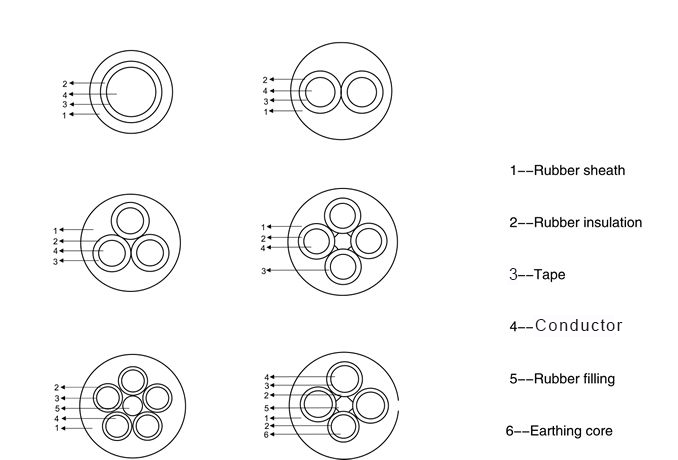

Type of cable

Model Desicription Application
Yc Heavy duty rubber sheath flexible cable Connection of all movable-type electric equipment.
withstand heavier mechnical external force.
YCW Field heavy duty rubber sheath flexible cable Connection of all movable-type electric equipment，withstand heaviermechmical external force with climate resistant and oil resistant properties.
YZ Medium-size rubber-sheathed flexible cable Applying to various mobile appliance device and undertaking togeneral mechanical outside force
YZW Field medium-size rubber-sheathed flexible cable Applying to various mobile appliance device oil resistant properties

Single-core general rubber sheathed flexible cable

Normal crosssectional area ofconductor Corex mm2   diameter of conductor
mm  		 Normal thickness
of sheath mm  		 Out diameterof cable mm Calcultatedweight of cablekg/km  Current-carryingquantity
A
Min Max
1.5 1.8 0.8  1.4  5.6 7.2 62 29
2.5 2.6 0.9  1.4  6.4 8 85 37
4 3.2 1  1.5  7.2 9 114 47
6 3.9 1  1.6  8 11 148 52
10 5.1 1.2  1.8  9.8 13 227 75
16 6.3 1.2  1.9  11 14.5 305 112
25 7.8 1.4  2  12.5 16.5 446 148
35 9.2 1.4  2.2  14 18.5 595 148
50 11 1.6  2.4  16.5 21 799 226
70 13.1 1.6  2.6  18.5 24 1060 289
95 15.1 1.8  2.8  21 26 1401 353
120 17 1.8  3  23 28.5 1667 415
150 19 2  3.2  25 32 2034 460
185 20 2.2  3.4  27.5 34.5 2524 529
240 24 2.4  3.5  30.5 38 3195 636
300 27 2.6  3.6  33.5 41.5 3901 732
400 31 2.8  3.8  37.5 46.5 5095 877

Two-core general rubber sheathed tlexible cable

Normal crosssectional area ofconductor Corex mm2  diameter of conductor
mm 		 Normal thickness of insula-
tion mm 		 Normal thickness
of sheath mm 		 Out diameterof cable mm Calcultatedweight of cable
kg/km 		 Current-carryingquantity
A
Min Max
2×1.5 1.8 0.8 1.5 9 11.5 147 21
2×2.5 2.6 0.9 1.7 10.5 13.5 232 30
2×4 3.2 1 1.8 12 15 308 39
2×6 3.9 1 2 13.5 18.5 409 57
2×10 5.1 1.2 3.1 18.5 24 737 74
2×16 6.3 1.2 3.3 21 27.5 965 98
2×25 7.8 1.4 3.6 24.5 31.5 1444 135
2×35 9.2 1.4 3.9 27.5 35.5 1875 167
2×50 11 1.6 4.3 32 41 2536 208
2×70 13.1 1.6 4.6 36 46 3257 259
2×95 15.1 1.8 5 40.5 50.5 4349 318

Three-core general rubber sheathed flexible cable

Normal crosssectional area ofconductor Corex mm2  diameter of conductor
mm 		 Normal thickness of insula-
tion mm 		 Normal thickness
of sheath mm 		 Out diameterof cable mm Calcultatedweight of cable
kg/km 		 Current-carryingquantity
A
Min Max
3×1.5 1.8 0.8 1.6 9.6 12.5 178 19
3×2.5 2.6 0.9 1.8 11.5 14.5 276 26
3×4 3.2 1 1.9 13 16 374 34
3×6 3.9 1 2.1 14.5 20.5 499 43
3×10 5.1 1.2 3.3 20 25.5 898 63
3×16 6.3 1.2 3.5 22.5 29.5 1191 84
3×25 7.8 1.4 3.8 26.5 34 1780 115
3×35 9.2 1.4 4.1 29.5 38 2330 142
3×50 11 1.6 4.5 34.5 43.5 3054 176
3×70 13.1 1.6 4.8 38.5 49.5 4095 224
3×95 15.1 1.8 5.3 44 54 5481 273
3×120 17 1.8 5.6 48 59 6459 316
3×150 19 2 6 53 66.5 7797 454

Four-core general rubber sheathed flexible cable

Normal crosssectional area ofconductor Corex mm2  diameter of conductor
mm 		 Normal thickness of insula-
tion mm 		 Normal thickness
of sheath mm 		 Out diameterof cable mm Calcultatedweight of cable
kg/km 		 Current-carryingquantity
A
Min Max
4×1.5 1.8 0.8 1.7 10.5 13.5 219 19
4×2.5 2.6 0.9 1.9 12.5 15.5 341 26
4×4 3.2 1 2 14.5 18 464 34
4×6 3.9 1 2.3 16.5 22 627 43
4×10 5.1 1.2 3.4 21.5 28 1101 63
4×16 6.3 1.2 3.6 24.5 32 1471 84
4×25 7.8 1.4 4.1 29.5 37.5 2244 115
4×35 9.2 1.4 4.4 33 42 2942 142
4×50 11 1.6 4.8 38 48.5 3971 176
4×70 13.1 1.6 5.2 43 55 5210 224
4×95 15.1 1.8 5.9 49 60.5 7024 273
4×120 17 1.8 6 53 65.5 8213 316
4×150 19 2 6.5 59 74 10042 454

core general rubber sheathed flexible cable

Normal cross-sectional area
of conductor Core x mm2 		 diametter of
conductor
mm 		 Normal thickness of
insulation mm		 Normal thickness
of sheath
mm 		 out diameter of cable
mm 		 kg/km Calcultatedweight of cable
kg/km 		 Current-carryingquantity
A
Master
core		 Neutral
core		 Master
core		 Neutral
core		 Min Max
3×2.5 1.5 2.6 0.9 0.8 2 12.5 15.5 321 26
3×4 2.5 3.2 1 0.9 2 14.5 17.5 434 34
3×6 4 3.9 1 1 2.2 16 21 585 43
3×10 6 5.1 1.2 1 3 20.5 26.5 966 63
3×16 6 6.3 1.2 1 3.5 23 30.5 1291 84
3×25 10 7.8 1.4 1.2 4 28 35.5 1963 115
3×35 10 9.2 1.4 1.2 4 30 38.5 2438 142
3×50 16 11 1.6 1.2 5 36 46 3438 176
3×70 25 13.1 1.6 1.4 5 40 51 4465 224
3×95 35 15.1 1.8 1.4 5 44 55 5829 273
3×120 35 17 1.8 1.4 5 46.5 59 6672 316
3×150 50 19 2 1.6 5 52 66 7707 454

300/500 YZ，YZW Medium-size rubber sheathed flexible cable

mal cross sectional area
of conductor mm2 		 Diameter of
conductor
mm 		 Normal thickness
of insulation
mm 		 Normal thickness
of sheath mm 		 Out diameter
of cable mm 		 Conductor resistacne
Max. at 20℃
Cu-core Tinned Cu-core
2×0.75 0.21 0.6 0.8 7 26 26.7
2x 1.0 0.21 0.6 0.9 7.2 19.5 20
2×1.5 0.26 0.8 1 9 13.3 13.7
2×2.5 0.26 0.9 1.1 10.5 7.98 8.21
2×4 0.31 1 1.2 10.6 4.95 5.09
2×6 0.31 1 1.3 11.8 3.3 3.39
3×0.75 0.21 0.6 0.9 7.5 26 26.7
mal cross sectional area
of conductor mm2 		 Diameter of
conductor
mm 		 Normal thickness
of insulation
mm 		 Normal thickness
of sheath mm 		 Out diameter
of cable mm 		 Conductor resistacne
Max. at 20℃
Cu-core Tinned Cu-core
3x 1.0 0.21 0.6 0.9 8 19.5 20
3x 1.5 0.26 0.8 1 10 13.3 13.7
3×2.5 0.26 0.9 1.1 11 7.98 8.21
3×4 0.31 1 1.2 11.3 4.95 5.09
3×6 0.31 1 1.3 12.6 3.3 3.39
4×0.75 0.21 0.6 0.9 8 26 26.7
4×1.0 0.21 0.6 0.9 8.5 19.5 20
4×1.5 0.26 0.8 1.1 10.5 13.3 13.7
4×2.5 0.26 0.9 1.2 12 7.98 8.21
4X4 0.31 1 1.3 12.7 4.95 5.09
4×6 0.31 1 1.4 14 3.3 3.39
3x 1.5+1 x 1.0 0.26/0.21 0.8/0.6 1.1 8.6 13.3 13.7
3 x 2.5+1 x 1.5 0.26/0.26 0.9/0.8 1.2 10.4 7.98 8.21
3X 4+1 x 1.25 0.31/0.26 1.0/0.9 1.3 12.3 4.95 5.09
3X6+1 x4 0.31/0.31 1.0/1.0 1.4 13.7 3.3 3.39
5×0.75 0.21 0.6 1 8.5 26 26.7
5×1 0.21 0.6 1 9 19.5 20
5×1.5 0.26 0.8 1.1 11 13.3 13.7
5 x2.5 0.26 0.9 1.3 13 7.98 8.21
5×4 0.31 1 1.4 14.1 4.95 5.09
5×6 0.31 1 1.6 15.7 3.3 3.39
6X0.75 0.21 0.6 1 8.2 26 26.7
6×1.0 0.21 0.6 1.1 8.7 19.5 20
6×1.5 0.26 0.8 1.2 10.9 13.3 13.7
6×2.5 0.26 0.9 1.4 13.2 7.98 8.21
6×4 0.31 1 1.5 15.5 4.95 5.09
6×6 0.31 1 1.7 17.4 3.3 3.39
