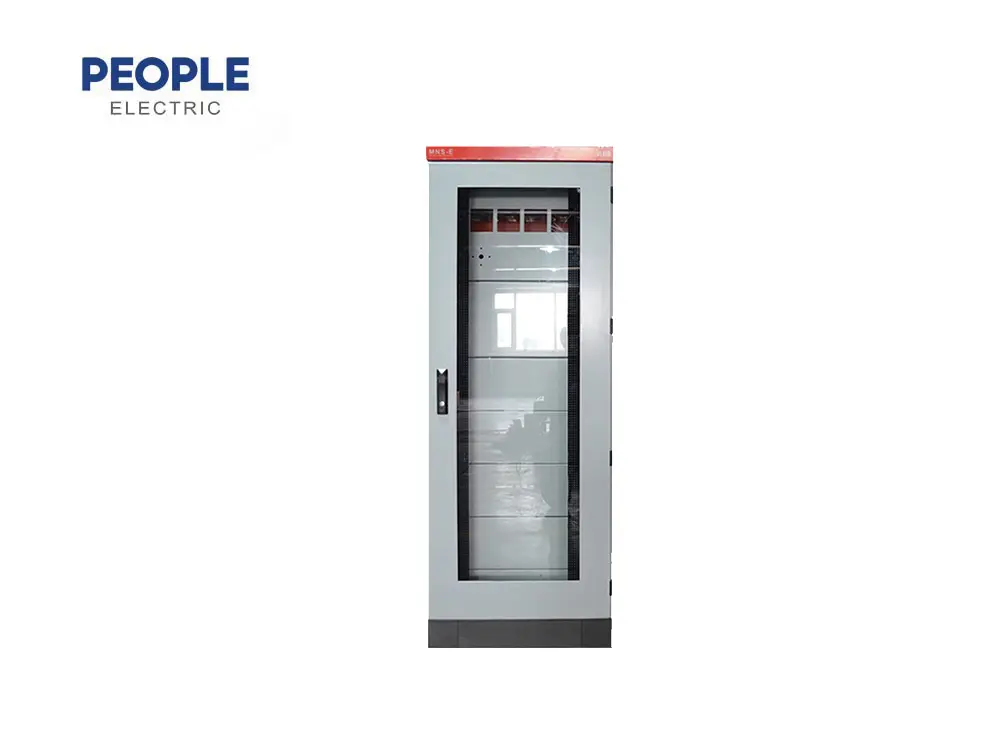

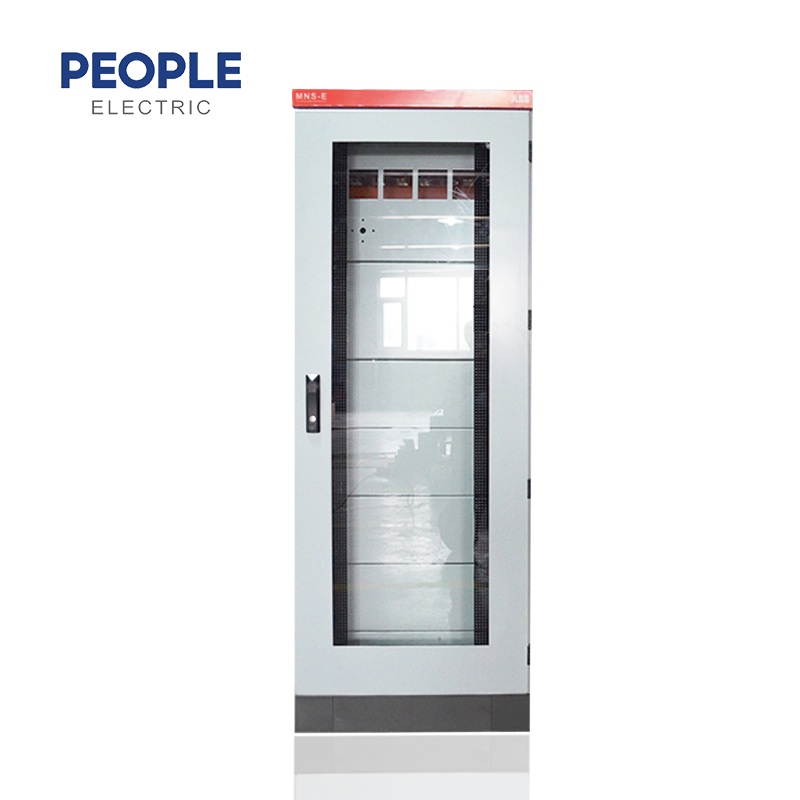

MNS-E series low-voltage dynamic distribution and control Panels – LV Switchgear

MNS-E series low-voltage power distribution control box adopts all-metal shell. The cabinet door should be made of glass door or metal door, and the opening angle is 180°: the installation method of the cabinet body is hanging box and floor O-shaped box, the hanging box is made of 1.5mm high-quality cold rolled steel plate, and the grounding box is made of 2mm high-quality cold-rolled steel plate production. Cassette type can be divided into sub-package type or welding type. The color of the whole cabinet is elegant and beautiful


Download as PDF
  • MNS-E series low-voltage dynamic distribution and control Panels – LV Switchgear

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

MNS-E series low-voltage power distribution control box adopts all-metal shell. The cabinet door should be made of glass door or metal door, and the opening angle is 180°: the installation method of the cabinet body is hanging box and floor O-shaped box, the hanging box is made of 1.5mm high-quality cold rolled steel plate, and the grounding box is made of 2mm high-quality cold-rolled steel plate production. Cassette type can be divided into sub-package type or welding type. The color of the whole cabinet is elegant and beautiful

LV Switchgear

MNS-E series low-voltage dynamic distribution control box is based on ABB low-voltage distribution box products, enabling ABB to have a complete low-voltage distribution box product chain, covering the distribution box needs of all walks of life

Environmental conditions:

When in normal working, climate environment shall conform to Part 500′s regulations of lEC60439,EN60439 and VDE0660.When surrounding temperature is in 40℃, relative humidity shall be 50%.lf box is installed in place where the elevation is higher than 2000m, the equipment shall be runningwith corresponding capacity reduction.

Box parameter:

Standards to conform to: GB7251.1 and GB7251.3

Insulation voltage: ≤1000v

Working voltage: ≤69ov

Maximum operating current: 400A(suspending box)

630A(grounding box)

Protection level: lP30/IP40

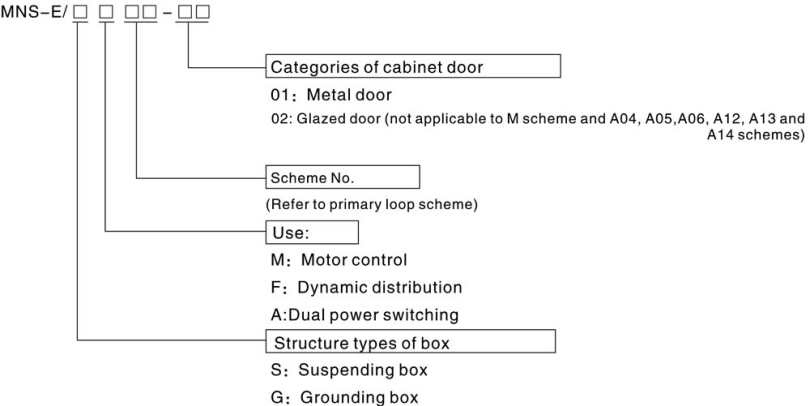

Type explanation:

1

MNS-E Series

For details, please contact our salesman through the FAQ

MNS-E series low-voltage dynamic distribution control box is based on ABB low-voltage distribution box products, enabling ABB to have a complete low-voltage distribution box product chain, covering the distribution box needs of all walks of life

Environmental conditions:

When in normal working, climate environment shall conform to Part 500′s regulations of lEC60439,EN60439 and VDE0660.When surrounding temperature is in 40℃, relative humidity shall be 50%.lf box is installed in place where the elevation is higher than 2000m, the equipment shall be runningwith corresponding capacity reduction.

Box parameter:

Standards to conform to: GB7251.1 and GB7251.3

Insulation voltage: ≤1000v

Working voltage: ≤69ov

Maximum operating current: 400A(suspending box)

630A(grounding box)

Protection level: lP30/IP40

Type explanation:

1

MNS-E Series

For details, please contact our salesman through the FAQ
