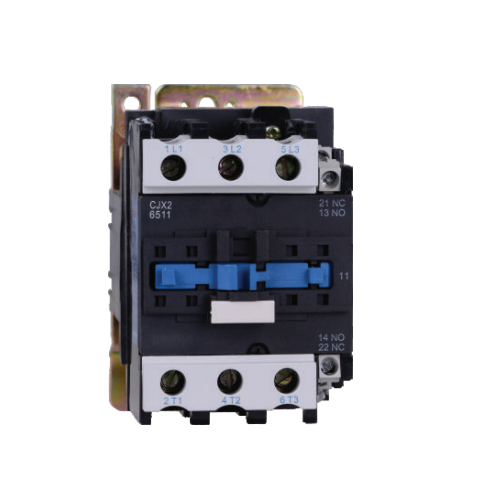

CJX2-Z Series AC/DC Contactor CE

CJX2-Z series DC operated AC contactor is mainly used in the circuit of AC 50Hz or 60Hz, ratedvoltage up to 690V, rated current up to 95A, for the use of remote frequently connecting and breakingthe circuit, it can control the motor, also can control the electric welder, capacitor group, electricheating device, lighting equipment and other loads.
lt conforms to the standard IEC/EN60947-4-1.

Send email to us Download as PDF

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

Normal operating condition and installation condition

1. Ambient temperature: +5°C~+40°C, average temperature within 24h does not exceed +35°C
2. Altitude: does not exceed 2000m
3. Atmospheric condition: when the highest temperature is +40°C, the relatively humidity doesnot exceed 50%: it can allow relatively high humidity when it is at relativelv low temperature, forinstance, it reaches 90% when it is at +20°C, it should take measurement when there havecondensation occurred due to the temperature variation.
4. Pollution grade: 3
5.Installation category: lll
6. Installation position: the gradient of the mounting surface to the vertical surface does not exceed ±5°
7. lmpact and vibration: product should be installed and used at the places without obviousshakeimpact and vibration.

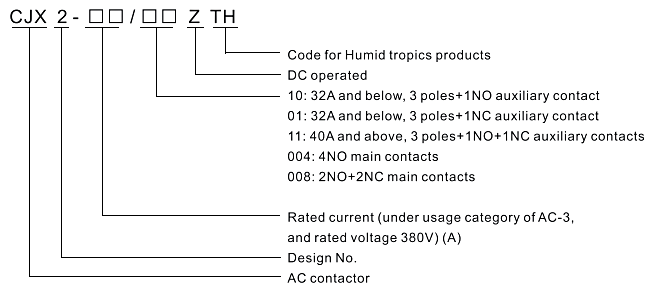

Model No.

Main technique parameter

Main technique parameter of contactor to see table 1

Model				CJX2-09Z		CJX2-12Z		CJX2-18Z		CJX2-25Z		CJX2-32Z		CJX2-40Z		CJX2-50Z		CJX2-65Z		CJX2-80Z		CJX2-95Z
Main contacts	Rated current leA	AC-3	380V	9		12		18		25		32		40		50		65		80		95
			660V	6.6		8.9		12		18		21		34		39		42		49		49
	Rated control power(kW)	AC-3	380V	4		5.5		7.5		11		15		18.5		22		30		37		45
			660V	5.5		7.5		10		15		18.5		30		37		37		45		45
	Conventional heating current lth(A)			25		25		32		40		50		60		80		80		125		125
	Rated voltage Ue(V)			660
	Rated insulation voltage Ui(V)			690
	Electrical life(10000times)	AC-3		100		100		100		100		80		80		60		60		60		60
	Operation frequency h			1200		1200		1200		1200		600		600		600		600		600		600
	Electricallife(10000times)	AC-4		20		20		20		20		20		20		15		15		10		10
	Operation frequency h			300		300		300		300		300		300		300		300		300		300
	Mechanical life(10000times)			1000		1000		1000		800		800		800		800		800		800		600
Coil	Rated control voltage Us			DC:24V,48V,110V,220V
	Pull-in voltage			85%~110% Us
	Release voltage			0.1~0.70 Us
	Coil power(W)less than			11		11		11		13		13		22		22		22		22		22
Terminal	Pieces of wire			1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2
	Flexible wire			2.5	2.5	2.5	2.5	4	4	4	4	6	6	10	10	16	16	16	16	50	25	50	25
	Hard wire			4	4	4	4	6	6	6	-	-	10	10	10	25	-	25	-	50	-	50	-
Auxiliary contacts				Can be added with F4, LA2-D/LA3-D type air delay contacts

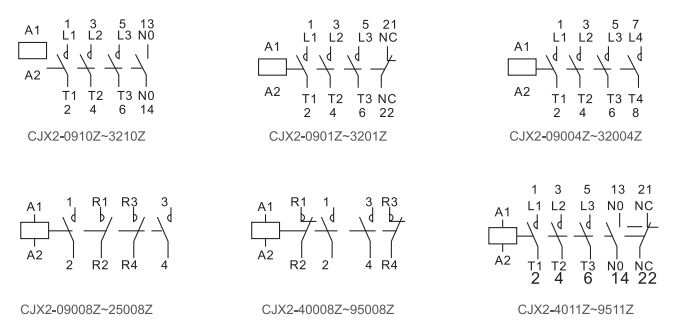

Wiring diagram
