CJX2-09~95 Series 9/12/18/25/32/40/50/63/80/95A Magnetic AC/DC Contactor CE

The CJX2-09~95 Series AC Contactor (hereinafter referred to as “contactor”) is suitable for the circuits with AC 50 Hz or 60 Hz, rated working voltage up to 660 V, rated working current up to 95 A when the rated working voltage is 380 V in AC-3 use category. The contactor can be used for long-distance making and breaking of circuits, and can be combined with appropriate thermal overload relays to form an electromagnetic starter to protect circuits that may be overloaded.

Send email to us

Product Detail

Application

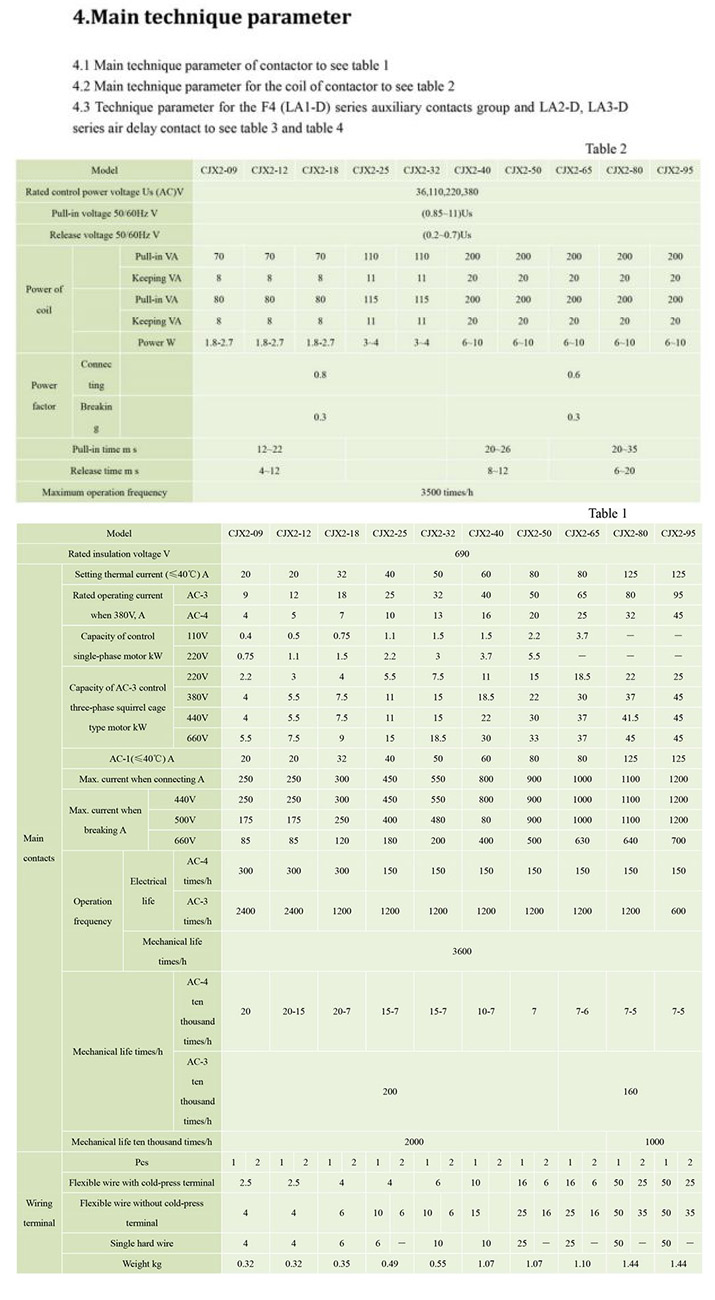

Parameters

Samples & Structures

Dimensions

Product Introduction

CJX2 series AC Contactor is mainly used in the circuit of AC 50Hz or 60 Hz, rated operating voltage up to 690V, rated operating current up to 95A, for the use of remotely connecting and breaking, it also can be connected with thermal relay combined into electromagnetic starter to protect the circuit’s over-load of operation. Contactor can also be equipped with the building block type auxiliary contacts group, air delay contact, mechanical interlock mechanism, etc. Accessories to combine into delay contactor, directional contactor, and start-delta starter.

Products conforms to: GB14048.4, IEC60947-4-1 etc. standards.

Features

1.Small volume

2.Light weight

3.Low power consumption

4.High life span

5.Safety and reliability

Alitude height of Installation places does not exceed 2000m

3.2 Ambient temperature
Up limitation of ambient temperature does not exceed +40C; Average value in 24h of ambient temperature does not exceed +35C. The low limitation of ambient temperature does not lower than -5C.

Condition of atmosphere

Humidity
When it is the highest temperature +40C, the relative humidity does not exceed 50%, and it allows a certain high relative humidity when it is at relatively low temperature. For example, it reaches 90% when 20C， and it should take special measurements when there occurring condensation duc to the temperature variation.

Pollution grade:3

Installation condition
Installing at the places that without impact vibration and without snow or rain; up terminal connccts power, and the low terminal connects the load; the gradient between the vertical and the product does not exceed 5°

Installation category: III

CJX2 (2)

Model No.

10:32A and below,3 poles+1NO auxiliary contact
01:32Aand below,3 poles+1NC auxiliary contact
11:40A and above,3 poles+1NO+1NC auxiliary contacts
004:25A and below,4NO main contacts
008:25A and below,2NO+2NC main contacts

Rated operating current

AC Contactol

Model	Amax	Bmax	B1max	B2max	Cmax	C1max	C2max
RDC5-06,09,12,18	74.5	45.5	58	71	82.5	114.5	139.5
RDC5-25,32,38	83	56.5	69	82	97	129	154
RDC5-40,50,65	127.5	74.5	88	101	117	148.5	173.5
RDC5-80.95	127.5	85.5	99	112	125.5	157	182
Note:	B1max=contactor+LA8; B2max=contactor+2×LA8; C1max=contactor+F4; C2max=contactor+LA2(3)D

Model	a	b	c	d	e	f
RDC5-06,09,12,18	35	50/60	-	-	-	-
RDC5-25,32,38	40	50/60	-	-	-	-
RDC5-40,50,65	-	-	105	40	100/110	59
RDC5-80.95	-	-	105	40	100/110	67

Normal operating condition and installation condition

3.1Ambienttemperature:+5℃~+40℃averaae temperature within 24h does notexceed+35℃

3.2Altitude:doesnotexceed2000m

3.3 Atmospheric condition:when the highest temperature is +40℃the relativelv humidity does not exceed 50%;it can allow relatively high humidity when it is at relatively low temperature, for

instance. it reaches 90% whenit is at+20it should take measurement when there have

condensation occurred due to thetemperature variation.

3.4 Pollution grade:3

3.5Installation categorv:l

3.6 Installation position: the aradient of the mountina surface to the vertical surface does no exceed+5°

3.7lmpact andvibration: product should be installed and used at the places without obvious shake impact and vibration.
