Our advantages are reduced prices,dynamic product sales workforce,specialized QC,solid factories,superior quality services for Cheap price Singi DC Dz47le 6ka 4p 10A Electrical Air Miniature Circuit Breaker MCB, We welcome all with the shoppers and buddies to call us for mutual rewards. Hope to do further more business along with you.
Our advantages are reduced prices,dynamic product sales workforce,specialized QC,solid factories,superior quality services for China Circuit Breaker and Miniature Circuit Breaker, We have our own registered brand and our company is developing rapidly owing to high quality items, competitive price and excellent service. We sincerely hope to establish business relations with more friends from home and abroad in the near future. We look forward to your correspondence.

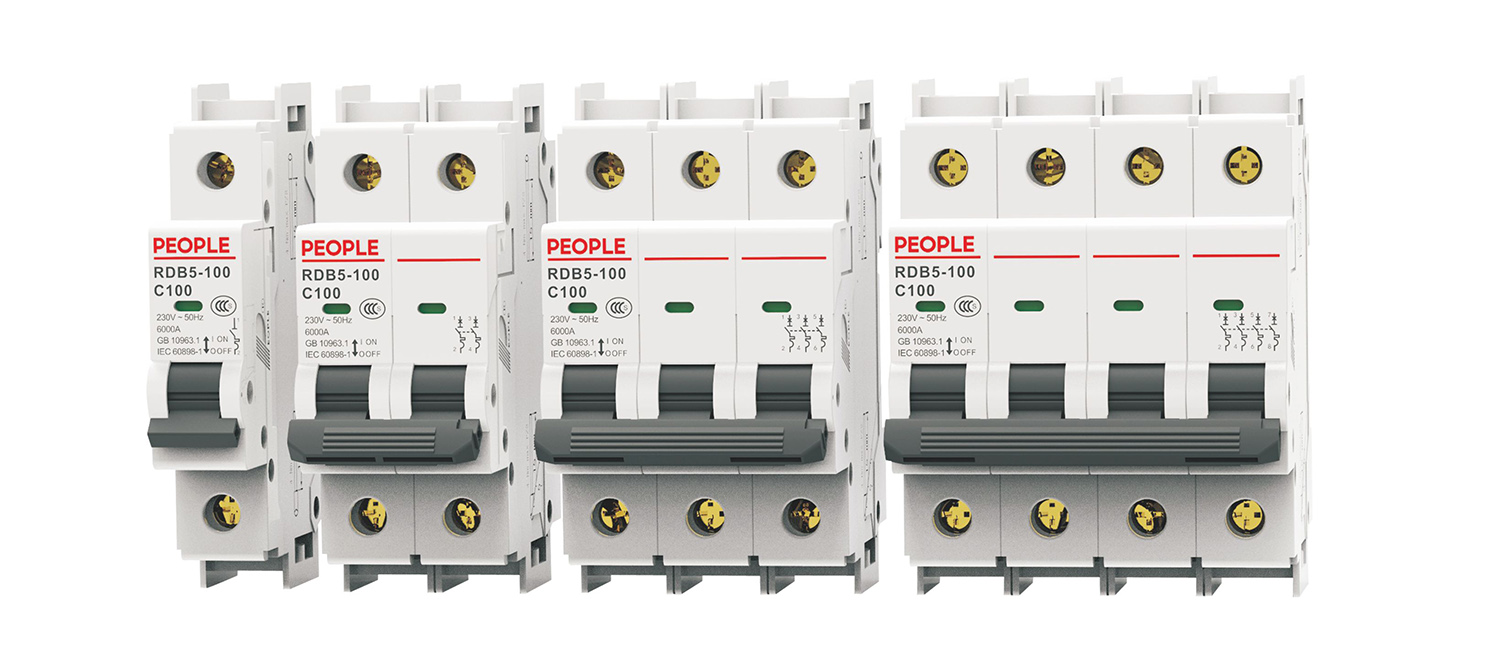

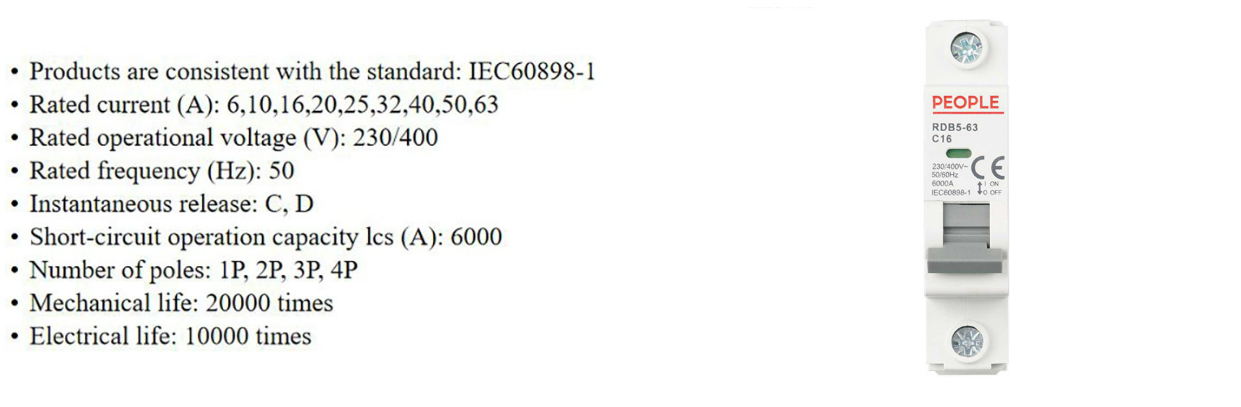

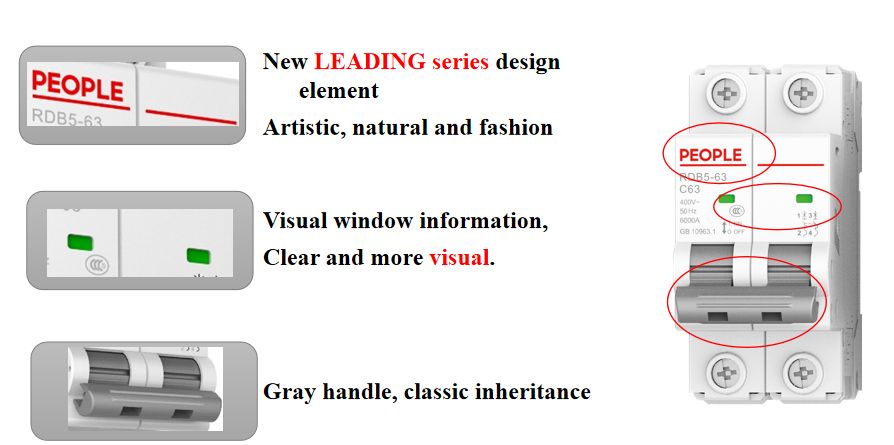

RDB5-63 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V (single phase), 400V(2,3, 4 phases), for overload and short circuit protection.Rated current up to 63A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.
1. Process guaranteed performance
2. Small volume, large capacity
3. Super-strong wiring capacity
4. Good insulation between phases
5. Super-strong conductivity
6. Low temperature rise and power consumption
1. Professional R&D team
Application test support ensures that you no longer worry about multiple test instruments.
2. Product marketing cooperation
The products are sold to many countries all over the world.
3. Strict quality control
4. Stable delivery time and reasonable order delivery time control.
We are a professional team, our members have many years of experience in international trade. We are a young team, full of inspiration and innovation. We are a dedicated team. We use qualified products to satisfy customers and win their trust. We are a team with dreams. Our common dream is to provide customers with the most reliable products and improve together. Trust us, win-win.
Our advantages are reduced prices,dynamic product sales workforce,specialized QC,solid factories,superior quality services for Cheap price Singi DC Dz47le 6ka 4p 10A Electrical Air Miniature Circuit Breaker MCB, We welcome all with the shoppers and buddies to call us for mutual rewards. Hope to do further more business along with you.
Cheap price China Circuit Breaker and Miniature Circuit Breaker, We have our own registered brand and our company is developing rapidly owing to high quality items, competitive price and excellent service. We sincerely hope to establish business relations with more friends from home and abroad in the near future. We look forward to your correspondence.
Switch is one of the most common electrical equipment in our life, and high safety and high quality are very important factors to consider when purchasing switch
1. Safety is our top priority. Our switches adopt the highest standard of safety design to ensure that there will be no safety problems such as electric shock or fire during use. We also carry out strict quality inspection on each product to ensure that they have met the safety standards before leaving the factory.
2. Our switch is made of the most advanced technology and materials. Each switch is manufactured through multiple processes, ensuring their high quality and long life. We use high-quality materials and components to ensure the reliability and durability of the switch, thus reducing the cost of maintenance and replacement.
3. We focus on user experience and comfort. Our switch adopts humanized design, which makes you feel more relaxed and comfortable during operation. At the same time, we also provide a variety of colors and styles to adapt to different scenes and personal preferences.
4. We have rich experience and professional knowledge. We have been committed to developing and producing high-quality switch products, and providing perfect pre-sale and after-sales services for customers around the world. Our professional knowledge and experience enable us to meet the needs of customers while providing high-quality and high-performance products.
To sum up, our switches have high safety, high quality, good user experience and rich experience and expertise. If you are looking for a safe, reliable and high-quality switch product, we are confident to be your best choice.
Product Model |
RDB5-40 |
RDB5-63 |
RDB5-80 |
RDB5-125 |
RDB5-80s |
RDB5G-125 |
|||||||||||||||||
Rated current In(A) |
6-40 |
1-63 |
63, 80 |
63,80,100,125 |
40-80 |
32-125 |
|||||||||||||||||
Number of poles |
1P+N |
1P,1P+N, 2P,3P, 3P+N,4P |
1P, 2P, 3P, 4P |
1P, 2P, 3P, 4P |
1P+N, 3P+N |
1P, 2P, 3P, 4P |
|||||||||||||||||
Rated voltage |
1P,1P+N |
230 |
|||||||||||||||||||||
2P,3P,4P,3P+N |
400 |
||||||||||||||||||||||
Rated frequency (Hz) |
50 |
||||||||||||||||||||||

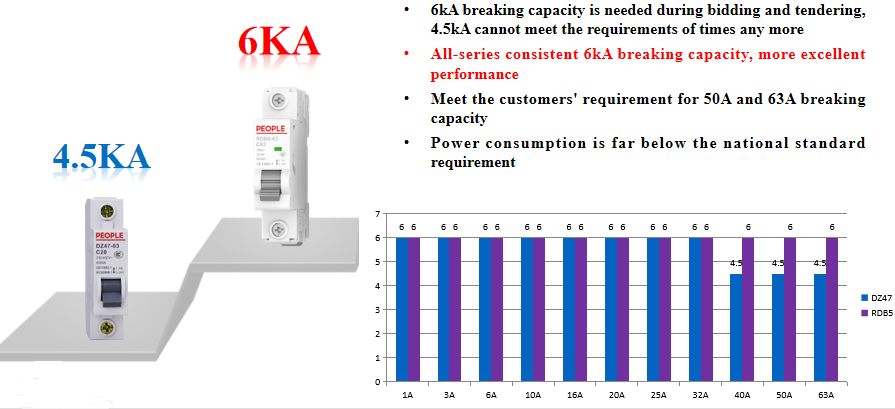

Rated short-circuit capacity icn(A) |
4500 |
6000 |
20le |
||||||||||||||||||||
Running short-circuit capability ics(A) |
4500 |
6000 |
12le |
||||||||||||||||||||

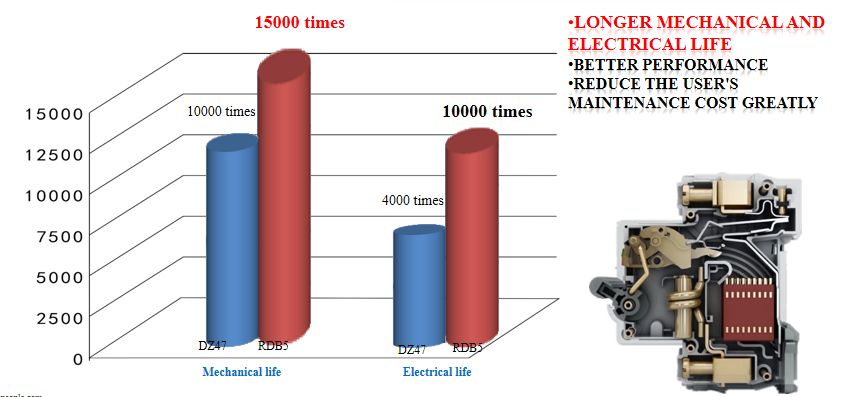

Mechanical life (actual) |
20000 |
8500 |
|||||||||||||||||||||
Electrical life (times) |
10000 |
1500 |
|||||||||||||||||||||
Rated impulse withstand voltage Uimp(1.2/50)(KV) |
4 |
6 |
|||||||||||||||||||||
Dielectric test voltage (V) |
2000 |
1890 |
|||||||||||||||||||||
Reference ambient temperature (℃) |
30 |
||||||||||||||||||||||

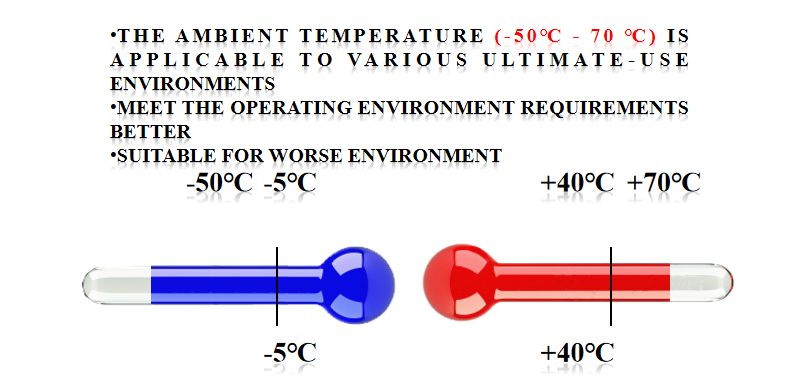

Ambient temperature (℃) |
-35~+70 |
||||||||||||||||||||||
Storage ambient temperature (℃) |
-35~+85 |
||||||||||||||||||||||
Relative air humidity |
+20℃, it does not exceed 95%; when it is +40℃, it does not exceed 50% |
||||||||||||||||||||||
Wiring capacity |
Minimum conductor cross-sectional area (mm) |
1 |
2.5 |
||||||||||||||||||||
Maximum conductor cross-sectional area (mm²) |
10 |
16 |
25 |
50 |
50 |
50 |
|||||||||||||||||
Standard torque (N.m) |
1.2 |
2 |
3.5 |
3.5 |
3.5 |
3.5 |
|||||||||||||||||
Limit torque (N.m) |
1.8 |
2.5 |
4 |
4 |
4 |
4 |
|||||||||||||||||
Wiring depth (mm) |
10 |
11 |
12 |
15 |
15 |
15 |
|||||||||||||||||
Shunt release time of circuit breaker (S) |
/ |
/ |
/ |
/ |
1<t<2,2<t<4 |
/ |
|||||||||||||||||
Electromagnetic tripping characteristics |
Type B(3in-5In) |
/ |
/ |
/ |
/ |
/ |
/ |
||||||||||||||||
Type C(5in-10In) |
· |
· |
· |
· |
· |
/ |
|||||||||||||||||
Type D(10in-20In) |
· |
· |
· |
· |
· |
/ |
|||||||||||||||||
Temperature compensation coefficient |
Change value for every 10℃ higher than the reference temperature |
-(0.03-0.05)In |
/ |
||||||||||||||||||||
Change value +(0.04-0.07)in for every 10℃ lower than reference temperature |
+(0.04-0.07)In |
/ |
Switch is one of the most common electrical equipment in our life, and high safety and high quality are very important factors to consider when purchasing switch
1. Safety is our top priority. Our switches adopt the highest standard of safety design to ensure that there will be no safety problems such as electric shock or fire during use. We also carry out strict quality inspection on each product to ensure that they have met the safety standards before leaving the factory.
2. Our switch is made of the most advanced technology and materials. Each switch is manufactured through multiple processes, ensuring their high quality and long life. We use high-quality materials and components to ensure the reliability and durability of the switch, thus reducing the cost of maintenance and replacement.
3. We focus on user experience and comfort. Our switch adopts humanized design, which makes you feel more relaxed and comfortable during operation. At the same time, we also provide a variety of colors and styles to adapt to different scenes and personal preferences.
4. We have rich experience and professional knowledge. We have been committed to developing and producing high-quality switch products, and providing perfect pre-sale and after-sales services for customers around the world. Our professional knowledge and experience enable us to meet the needs of customers while providing high-quality and high-performance products.
To sum up, our switches have high safety, high quality, good user experience and rich experience and expertise. If you are looking for a safe, reliable and high-quality switch product, we are confident to be your best choice.
Product Model |
RDB5-40 |
RDB5-63 |
RDB5-80 |
RDB5-125 |
RDB5-80s |
RDB5G-125 |
|||||||||||||||||
Rated current In(A) |
6-40 |
1-63 |
63, 80 |
63,80,100,125 |
40-80 |
32-125 |
|||||||||||||||||
Number of poles |
1P+N |
1P,1P+N, 2P,3P, 3P+N,4P |
1P, 2P, 3P, 4P |
1P, 2P, 3P, 4P |
1P+N, 3P+N |
1P, 2P, 3P, 4P |
|||||||||||||||||
Rated voltage |
1P,1P+N |
230 |
|||||||||||||||||||||
2P,3P,4P,3P+N |
400 |
||||||||||||||||||||||
Rated frequency (Hz) |
50 |
||||||||||||||||||||||
Rated short-circuit capacity icn(A) |
4500 |
6000 |
20le |
||||||||||||||||||||
Running short-circuit capability ics(A) |
4500 |
6000 |
12le |
||||||||||||||||||||
Mechanical life (actual) |
20000 |
8500 |
|||||||||||||||||||||
Electrical life (times) |
10000 |
1500 |
|||||||||||||||||||||
Rated impulse withstand voltage Uimp(1.2/50)(KV) |
4 |
6 |
|||||||||||||||||||||
Dielectric test voltage (V) |
2000 |
1890 |
|||||||||||||||||||||
Reference ambient temperature (℃) |
30 |
||||||||||||||||||||||
Ambient temperature (℃) |
-35~+70 |
||||||||||||||||||||||
Storage ambient temperature (℃) |
-35~+85 |
||||||||||||||||||||||
Relative air humidity |
+20℃, it does not exceed 95%; when it is +40℃, it does not exceed 50% |
||||||||||||||||||||||
Wiring capacity |
Minimum conductor cross-sectional area (mm) |
1 |
2.5 |
||||||||||||||||||||
Maximum conductor cross-sectional area (mm²) |
10 |
16 |
25 |
50 |
50 |
50 |
|||||||||||||||||
Standard torque (N.m) |
1.2 |
2 |
3.5 |
3.5 |
3.5 |
3.5 |
|||||||||||||||||
Limit torque (N.m) |
1.8 |
2.5 |
4 |
4 |
4 |
4 |
|||||||||||||||||
Wiring depth (mm) |
10 |
11 |
12 |
15 |
15 |
15 |
|||||||||||||||||
Shunt release time of circuit breaker (S) |
/ |
/ |
/ |
/ |
1<t<2,2<t<4 |
/ |
|||||||||||||||||
Electromagnetic tripping characteristics |
Type B(3in-5In) |
/ |
/ |
/ |
/ |
/ |
/ |
||||||||||||||||
Type C(5in-10In) |
· |
· |
· |
· |
· |
/ |
|||||||||||||||||
Type D(10in-20In) |
· |
· |
· |
· |
· |
/ |
|||||||||||||||||
Temperature compensation coefficient |
Change value for every 10℃ higher than the reference temperature |
-(0.03-0.05)In |
/ |
||||||||||||||||||||
Change value +(0.04-0.07)in for every 10℃ lower than reference temperature |
+(0.04-0.07)In |
/ |
